TurtleGit for Mac

View Markdown source ↗

Submodule Diff and Changed Files parity

Status: partial native port, not full FileDiffDlg or TortoiseMerge parity.

The source reference is pinned to 7338078f8ddd924b8cddee35f512f2286072136d: SubmoduleDiffDlg.cpp (blob 2cf3e4174776d769bfb46a6caa0d44fea23cdca2) and FileDiffDlg.cpp (blob fe4171a852023344cac5af1711873104393e1b0a). Both downloaded blobs were verified. Resource references are IDD_DIFFSUBMODULE and IDD_DIFFFILES.

Existing comparison metadata backend

SubmoduleComparison.swift resolves the superproject's From gitlink and either its historical To gitlink or the actual initialized child checkout's HEAD. An uninitialized working checkout retains the indexed gitlink as its displayed revision. It reports subjects, metadata availability, dirty state and the upstream change categories: identical, addition, deletion, fast-forward, rewind, or newer/older/equal commit time for divergent histories. Missing child objects and uninitialized checkouts produce Unknown with unavailable Log sides. An absent side has no Log revision. Historical comparisons ignore current checkout dirtiness. Working comparisons include staged, unstaged and untracked changes, while ignored files do not make the checkout dirty.

Paths and revisions are literal arguments. Tree records use NUL delimiters and exact path matches, preserving Unicode, commas, newlines and pathspec-looking names. Child checkout roots are verified before metadata access; external checkout symlinks and escaping parents are rejected. A conflicted index is rejected instead of presenting stage zero as resolved; working Diff routes that result to the existing conflict editor. Reads do not publish index updates or change HEAD/working contents.

Seven existing real-Git metadata tests cover the change categories, dirty and ignored files, historical comparisons, missing objects, uninitialized modules, unsafe paths and retained Revert baselines.

Native implementation

Submodule Diff groups From and To revisions and subjects, with a separate Log button for each side. The To group labels the working tree when appropriate. The type colors match the upstream RGB values; a dirty checkout uses red text on yellow. Missing metadata disables comparisons and highlights the subject. Update owns the existing Submodule Update options and progress sheets with that path selected. Canceling options releases the owner; the progress result retains ownership until acknowledgment. Identical revisions open child repository status; otherwise Show diff compares the two child commits. The dirty comparison menu also offers Compare against the working tree. F5 refreshes the metadata in place. The later dialog actions family supplies the source sticky primary action and retires callbacks from an earlier displayed snapshot, with ownership retained through actual child/worker drainage.

Changed Files has two revision groups, a path filter, five columns (File, Extension, Action, Lines added, Lines deleted), whitespace options, Common ancestor, Log, Swap and View Patch. Double-click and Compare revisions open a native two-pane file viewer; unified diff remains a separate context action. The colored patch viewer operates in read-only mode. Empty selections clear the patch. Patch refresh errors remain visible; reloading the comparison invalidates old patch requests without leaving the patch window busy. Patch placement is constrained to the parent screen's visible frame.

The core resolves commit names to immutable object IDs before constructing a snapshot. Rename paths and filenames containing Unicode, newlines or pathspec syntax are parsed with NUL records and passed literally. Comparisons against the working tree include staged and unstaged tracked changes. Untracked files are excluded until added to Git. Empty-tree comparisons support added/deleted submodules. Reverse comparison uses Git's -R. Whitespace-only entries omitted by Git numstat are now hidden, matching the upstream FileDiff filter. Binary entries and gitlinks remain visible.

Successful Revert retains the operation's exact comparison revision and its restored submodule paths. Its Handle submodules button closes progress and opens their Submodule Diff windows. Commit-driven Revert does not auto-close this post-action when the result contains submodules. Failed or cancelled Revert does not offer the post-action.

Selecting an indexed submodule directory for Diff resolves its containing repository; a file inside it still resolves the child repository. Multiple native windows share the same application process. Busy comparison and patch reads participate in application Quit coordination.

Evidence

Four real-Git comparison tests cover immutable refs after HEAD advances, rename/binary/literal filenames, repository and selection rejection, staged and unstaged working changes, reverse and empty-tree comparisons, whitespace, divergent common-ancestor behavior and unchanged index/HEAD/working bytes. Submodule ownership coverage includes a newline/pathspec-like directory.

Native QA used an owned disposable parent/child fixture. Finder Diff displayed Fast Forward and the dirty marker. Show diff listed the committed child change; its selected read-only patch showed child base to child next. After Revert, Handle submodules opened the captured base. Compare showed child base to local working change, with Swap disabled. Parent/child HEAD and index bytes were unchanged by comparison; post-Revert preserved the child index and dirty file. Each QA process was quit and process absence verified before another launch. Closing the patch produced an accessibility observation timeout; a process sample showed an idle AppKit event loop, and normal Quit succeeded. This remains a UI-observation limitation to investigate.

The gallery contains inspected, unedited actual light-mode captures: submodule-diff.png and changed-files.png.

Original review gaps (see subsequent dated implementation records)

Full reference-browser tree/context behavior, upstream Log range behavior, the remaining file context actions need porting. Native complete two-pane editing/save workflows, image-diff controls, alternative diff tools, blame, export and restore integration remain pending. Conflicted gitlinks retain the existing conflict workflow and need explicit physical Diff routing acceptance. Shift-alternative comparison is carried through asynchronous preparation and Changed Files to the file viewer. Dedicated native tests for identical/missing/historical states, Log and Update handoffs, F5, filter/swap/whitespace controls, multi-monitor placement and busy Quit remain. Signed Finder and sandbox security-scope acceptance are pending. These source files and dialogs remain partial in the full-port scope.

Two-file comparison follow-up

FileComparison.swift reads exact blob bytes from the snapshot's immutable commits. Added/deleted files have an empty opposite side; renamed files use the old base path. Literal NUL-delimited tree lookup preserves unusual filenames. Working comparisons read the working file rather than the index, and symlinks display their target text without following the final link. Binary data is retained; UTF-8 (with optional BOM) and BOM-marked UTF-16 are decoded explicitly. Line alignment retains original line numbers and detects byte-distinct Unicode, line endings and missing final newlines.

The native Base/Theirs split view uses the existing original artwork and light/dark merge palette: removed, added and alignment-gap rows. It provides synchronized vertical scrolling, previous/next difference, native Find, line numbers and F5 Reload. Historical sides remain pinned when reloaded. Recognized images have a side-by-side preview; other binary/unsupported text encodings show byte counts and a bounded hexadecimal preview. Gitlinks route to Submodule Diff, including empty sides and a reversed working-checkout comparison.

Three core tests cover alignment recovery, historical rename/add/delete/binary/ symlink bytes, pinned commits, working vs staged content, reversed comparisons, UTF-16 and unchanged index bytes. A separate submodule test covers empty sides and reversed working checkout. One native QA instance verified added/deleted file double-click, empty opposite panes, difference navigation, Find (12 hits) and line-number toggling. Its actual dark capture is two-file-diff-dark.png. Normal Quit exited the process; parent/child HEAD, indexes and local text were verified unchanged. Long-file scroll synchronization, multiple difference navigation, native rename/binary/image cases, light capture and signed sandbox acceptance remain unverified. Historical comparisons remain read-only; full TortoiseMerge editing, encoding selection, word diff, locator, folding and settings remain part of the unfinished full port.

Validation for this follow-up: all 243 integration tests passed. Final unsigned Xcode Debug and App Store builds passed, followed by both bundle audits. The App Store audit exercised the universal Git 2.55.0 runtime's local commands and verified its 11 Mach-O files, embedded Finder extension, licenses and 60 original icon resources. The static Pages build passed. These checks do not prove signed Finder activation, signed sandbox behavior or App Store approval.

Working-file editing follow-up

FileComparisonEditing.swift maps AppKit UTF-16 selections in aligned panes back to real source text. Display gaps and synthetic final newlines are excluded from saved bytes. Existing CRLF endings and missing final newlines survive edits; inserted newlines use the file's CRLF/LF convention. The viewer offers explicit Enable editing for an existing regular working file on either comparison side, Save with the original artwork and Command-S, plus guarded close and Reload. Historical blobs, symlinks and unsupported encodings remain read-only. Binary and image comparisons retain their inspection workflow.

Save preserves UTF-8 BOM or BOM-marked UTF-16 endianness and POSIX permissions. It rejects changed file bytes, changed permissions, replacement symlinks and read-only destinations, writes a sibling temporary file, revalidates the target and atomically replaces it. It never stages, commits or publishes an index. Close offers Save/Don't Save/Cancel; Reload offers Save and Reload/Reload Without Saving/Cancel. Parent Changed Files closure sends dirty children through their close guard. Application Quit includes dirty two-file results in its existing coordinated save flow and blocks new edits while confirmation is pending.

Three new tests cover gap selection, CRLF edits, EOF, source/display caret mapping, BOM encodings, preserved executable permissions, reversed working-side Save, stale bytes/permissions, read-only files, replacement symlinks and unchanged HEAD/index. Native QA caught rapid typing reusing the previous alignment; the edit handler now updates text and caret synchronously before the next key event. The corrected build saved all typed characters and exact no-final-newline bytes. Parent and child HEAD/index bytes stayed unchanged. Close Cancel retained a draft; Reload Without Saving restored the previously saved file. Both sequential test instances exited normally. The existing gallery image shows the earlier historical read-only viewer; a new editing screenshot is still needed.

Dirty application Quit, Save and Reload, stale-save alert, multi-window close, mixed line endings, gap typing, reversed-side UI, signed sandbox and light-mode acceptance remain pending. Historical editing, complete block/file transfer controls, full encoding choice, folding, locator and complete TortoiseMerge parity remain unfinished.

Validation: all 246 integration tests passed, including the three new editing tests. Final unsigned Debug/App Store builds, both bundle audits and the static Pages build passed. The App Store audit again verified universal Git 2.55.0, its 11 Mach-O files and local commands, the Finder extension, licenses and 60 original icons. Signed execution and release approval are still unverified.

Block transfer, Undo/Redo and Save As follow-up

Reviewed the pinned RightView.cpp UseLeftBlock/UseLeftFile and both-order context entries, plus MainFrm.cpp pane-specific Save As. The native viewer now offers Use other block, Use both blocks (this one first/last) and Use other file for its editable working side. A selected difference determines the block; caret selection or navigation selects it. Transferring excludes gaps, keeps the target line-ending style (corrected in the selected-range follow-up below) and preserves a missing final newline. Combining two EOF blocks inserts a separating newline when needed. A CRLF suffix comparison bug found by the new tests was fixed without adding blank lines.

Both transfers and typing use an owned UndoManager, with original Undo/Redo toolbar artwork and Command-Z/Command-Shift-Z. Reload and closure clear that window's history. Save As offers left/right pane choices in a native save sheet, with the repository as its initial directory. Historical/binary exports retain raw bytes. The editable pane exports its draft with the original BOM/encoding; export does not save that draft back to the source or clear its dirty state.

Two new core tests cover replacement, insertion, deletion, reversed transfers, both block orders, CRLF, EOF and byte-distinct Unicode, invalid difference selection, binary export and encoded draft export. One native QA process verified whole-file transfer, Undo/Redo, both blocks with the working block last, Save As of the resulting draft and exact exported bytes. Its source working file, parent/child HEADs and index bytes stayed unchanged. The draft was undone before normal Quit, and process absence was verified. The inspected unedited capture two-file-edit-dark.png shows the current toolbar and transfer controls.

Native arbitrary multi-line block selection/context menus, marked-block operations, left-pane export, binary export, other block order, reverse-side editing, undo caret restoration and keyboard shortcuts still need acceptance. Historical editing, light-mode capture, full image controls, word diff, locator, folding, complete settings and signed sandbox execution remain unfinished.

Validation: all 248 integration tests passed. Unsigned Debug and App Store builds, both bundle audits and the static Pages build passed. The App Store audit verified the universal Git 2.55.0 runtime and its local commands, embedded Finder extension, licenses and 60 original icon resources. These are packaging and compilation checks; signed activation and release approval remain unverified.

Pane context menus and selected-range transfer follow-up

Reviewed the pinned BaseView.cpp selection and UseViewBlock implementation, and LeftView.cpp context actions. Both native panes now provide menus with original transfer, Save As, Undo/Redo and Copy icons; Cut/Paste use native macOS symbols. The source pane offers Use this block/whole file; the working pane offers Use other block/file. Both-order actions interpret “this” as the pane that opened the menu. Commands honor editing, busy and Quit-confirmation state.

A selected range takes precedence over the navigated difference and can include unchanged lines and alignment gaps. Upstream inclusive block endpoints include the next line when the selection ends at its column zero. Incoming ended lines use the target LF/CRLF style; missing final newlines remain absent. Copy/Cut map the display selection back to actual bytes, excluding gaps and artificial EOF newlines. Deferred selection notifications are discarded after alignment changes.

Two new core tests cover multi-difference range transfers, reverse sides, invalid ranges, target line-ending conversion, inclusive selection endpoints, UTF-16 emoji offsets, gap exclusion and exact CRLF/EOF copy text. One native QA process verified both pane menus, working-pane last/source-pane first ordering, Cut and Undo. The draft was restored before normal Quit; process absence, source bytes, both repository HEADs and both index files were verified. Native arbitrary multi-line transfers, Paste/clipboard acceptance, reverse-side editing, marked blocks and signed sandbox execution remain pending. Earlier screenshots remain accurately labeled and do not depict these newer context menus.

Validation: all 250 integration tests passed. Unsigned Debug and App Store builds, both bundle audits and the static Pages build passed. The App Store audit exercised universal Git 2.55.0 local commands and verified 11 Mach-O files, the Finder extension, licenses and 60 original icon resources. Signed runtime behavior and release approval remain unverified.

Marked-block follow-up

Reviewed the pinned RightView MarkBlock/LeaveOnlyMarkedBlocks context entries and BaseView MarkBlock, UseViewBlock and its skip predicates. The working-pane menu now offers Mark block, Unmark block and Leave only marked blocks. Single rows show the applicable mark action; multi-row selections offer both. Marking requires an editable working pane and follows the same busy/Quit gates as edits. The unchanged upstream src/Resources/linemarked.ico blob was verified against 33975e0b218b36be8dc5c788bc8baba6d7f02780; its SHA-256/source path is recorded in the icon manifest. It appears in menus and the numbered working-pane gutter.

Marks and manually edited row flags participate in the existing Undo history. Row flags follow insertions, replacements, deletions and alignment gaps; direct block/file replacement clears flags in the replaced range. Leave only marked blocks retains marked or typed rows, replaces the rest from the other pane using the destination line-ending style, and consumes all marks as upstream does. A formerly final line gains a separator if it now precedes additional lines. Reload clears annotations; Save records the current mark state. Marks are view metadata and do not become file bytes or index entries.

Two new tests cover marked/typed preservation, unmarked replacement, gaps, reverse sides, target endings, EOF separators, invalid row flags and annotation remapping through insertions/replacements/deletions. One native QA process verified Mark, original gutter artwork, mark consumption with preserved text, Undo of consumption/marking, retained manually typed text and replacement of an unmarked original line. All drafts were undone before normal Quit. Process absence and unchanged source bytes, both HEADs and both index files were checked. The inspected unedited capture is two-file-marked-dark.png in the Pages gallery. Native multi-block marking, reverse-side editing, gap marks, Unmark/Redo/Save variants and signed sandbox acceptance remain pending. Full source state transitions, three-way marked operations and TortoiseMerge parity remain partial.

Validation: all 252 integration tests passed. Unsigned Debug and App Store builds, both bundle audits and the static Pages build passed. The App Store audit exercised universal Git 2.55.0 local commands and verified 11 Mach-O files, the Finder extension, licenses and 61 original icon resources. Signed activation, sandbox acceptance and release approval remain unverified.

Inline character/word display and Log integration follow-up

Reviewed the pinned SVNLineDiff.cpp ParseLineWords/ParseLineChars and ShowInlineDiff, BaseView GetLineColors and InlineViewLineDiffColor, and MainFrm OnViewInlinediff/OnViewInlinediffword gates. The two-file viewer now offers Inline diff and Word diff session toggles. Inline is initially on in character mode; Word diff is disabled when inline display is off. These display controls do not edit source bytes or add Undo entries.

MergeInlineComparison.swift returns exact UTF-16 spans and opposite-pane missing-text positions. Word mode groups alphanumeric runs and ASCII space/tab runs; punctuation is separate. Character mode compares UTF-16 units. Shared tokens must exceed half the changed tokens plus the number of change groups, matching the upstream similarity gate. Empty/equal lines, gaps and dissimilar pairs retain their existing row colors. The 3,000 UTF-16-unit limit applies to each displayed pane independently, allowing a short side to compare against a longer opposite side. Results are cached per alignment and word mode.

The original DiffColors defaults now render common text in lavender, removed spans in red and added spans in pale yellow, with their corresponding dark-mode values. Missing text has a narrow red marker. Changing mode or editing rebuilds the display spans and markers without inserting display-only characters.

Native acceptance found ordinary Log comparisons still opened unified diff. Normal repository Log now routes one revision against working tree, first parent (or empty tree for a root commit), or two revisions into the retained Changed Files factory. Show changes as unified diff remains a separate command with its original unified-diff icon. History-selection dialogs without a comparison factory disable comparison commands; full picker integration remains pending.

Three new tests cover exact character/word ranges, UTF-16 emoji/NFC/NFD offsets, whitespace/punctuation, insertion/deletion markers, empty/equal/dissimilar pairs and asymmetric/over-limit lines. Two sequential native QA processes were closed; the first exposed the Log routing gap, the updated build verified Log → Changed Files → two-pane viewer. Character/word toggles, opposite insertion marker, similarity fallback, light/dark colors and disabled-inline full-row restoration were checked. Inspected unedited gallery captures are two-file-inline-dark.png and two-file-inline-light.png. Process absence and unchanged fixture HEAD, index and working-file bytes were verified.

Swift's diff engine replaces libsvn matching; repeated-token tie behavior and platform Unicode alphanumeric classification can differ. Exact libsvn parity, inline navigation, EOL/whitespace markers, configurable inline colors/cutoff, very long opposite-line performance, signed execution and history-picker/native root/two-revision comparison variants remain pending. Three-way inline display is intentionally still absent, matching upstream's visible-bottom-pane gate. Full TortoiseMerge and Log parity remain incomplete.

Validation: the final full suite passed all 255 tests. Final unsigned Debug and App Store builds, both bundle audits and the static Pages build passed. The App Store audit exercised universal Git 2.55.0 local commands and verified 11 Mach-O files, the Finder extension, licenses and 61 original icons. These checks establish compilation/packaging; signed Finder activation, sandbox acceptance and App Store release approval remain unverified.

Ordinary file Diff routing follow-up

Reviewed upstream Commands/DiffCommand.cpp at pinned commit 7338078f8ddd924b8cddee35f512f2286072136d: directory Diff opens Changed Files; ordinary file Diff compares HEAD with working contents, and unified output is a separate mode. The native dispatcher now opens Working Tree for directory selections and retains two-pane comparison windows for ordinary changed files. Finder-request startup uses this same dispatcher. Working Tree Diff and file double-click use the same callback; Save unified diff retains its patch export behavior. Gitlinks retain their dedicated Submodule Diff window.

The core pins HEAD before reading the comparison. Selected renamed files use the original HEAD path, staged-plus-working edits compare with committed bytes, and explicit untracked selections use an empty base without touching the index. An unborn branch uses the empty tree after checking its missing branch ref; invalid HEAD states propagate errors rather than silently becoming an empty base. Clean selected files produce a no-changes message.

Two real-Git tests cover staged-plus-working changes, renames with literal pathspec-looking/Unicode/newline names, explicit untracked files, duplicate selections, path escape rejection, unborn branches and unchanged selections. They verify exact comparison bytes and unchanged index bytes. Native QA verified that ordinary file Finder-request startup directly opens the two-pane viewer. The process was quit and its absence checked; fixture HEAD, index and working bytes remained unchanged. Working Tree double-click, directory and multi-file native acceptance remain pending, as do signed Finder activation/security scope, external two-file command variants and alternative-tool options. Full upstream DiffCommand and TortoiseMerge parity remain partial.

Validation: all 257 Swift tests, unsigned Debug and App Store builds, both bundle audits and the static Pages build passed. The App Store audit verified universal Git 2.55.0 local commands and 11 Mach-O files, the Finder extension, licenses and 61 original icons. Signed execution and App Store acceptance remain unverified.

Revision selection and metadata follow-up

Both revision buttons offer Browse References, Log and RefLog. Browse References now uses the shared native reference tree/list, scope/filter and context operations, with canonical single-selection acceptance. Log starts at the current revision text, and RefLog uses its native selection mode. All three children inherit the comparison preferences and parent visibility, use a single owned sheet request, and reject late completion after forced parent retirement. The selected revision is applied only after the sheet ends; Cancel preserves the current text. Root comparison consumers configure the shared reference and Log action routes.

Revision text uses a native completion field with branch/tag/remote short names and HEAD, including branch names containing slashes. Editing immediately clears stale file rows, metadata and patch content, then validates after one second; Return validates immediately. Invalid typed references appear in the empty list rather than an error sheet. Superseded input and retired windows cancel their pending work. Comparison metadata reads retain the repository grant and global operation ownership until cancellation actually settles.

The path filter now uses the same case-insensitive literal query parser as Log: space-separated conditions, quoted terms, minus exclusions, plus alternatives and leading whole-query negation, evaluated over the combined current/old paths. Filtering is immediate on macOS; the source's separate filter debounce is not mirrored. The five source columns retain their names/order by default, use source rename-path display and the configured file-list font, and now support native header visibility, reordering, width persistence and confirmed reset. Settings live under the comparison-specific FileDiff.Columns key in the supplied defaults; this header persistence is a macOS usability adaptation. Keyboard column copying shares the native list integration; Delete does not mutate files in this list. RefLog OK requires exactly one entry; double-click accepts it, Cancel returns no choice, and stash apply/delete/clear remain disabled in selection mode. Normal RefLog behavior retains its existing inspection and stash operations.

Each comparison snapshot includes immutable commit metadata: configured short hash, subject, mailmapped author, author date and committer date. Revision labels show short hash and subject, with localized author/date tooltips. The newer commit side is labelled according to committer dates. Working/empty-tree sides have no invented commit metadata. A real-Git test verifies custom refs, default checkout reference scope, mailmap, configured abbreviation, separate author and committer dates, absent metadata for non-commit sides and retained metadata after a ref advances.

One native dark-mode QA process exercised custom-ref selection, Log selection of the earlier commit, RefLog selection of the earlier commit and RefLog Cancel. The resulting revision fields, subjects, change lists and newer-side labels were verified. Parent/child HEAD, child index bytes and local working text were retained. The process was quit and absence verified. Inspected, unedited native captures are submodule-diff-dark.png and changed-files-dark.png. Dedicated chooser multi-selection rejection, all Cancel variants, RefLog double-click, normal stash-mode regression acceptance and signed sandbox checks remain.

Follow-up validation: the full 237-test integration suite passed, followed by the metadata test with fixture-relative dates. Unsigned Xcode Debug and App Store builds passed; bundle audits verified the embedded Finder extension, licenses, 59 icon assets and universal bundled Git runtime. The static site build passed. These build checks do not prove signed Finder activation or App Store acceptance.

File list sorting and context actions

All five column headers now sort in both directions. Text uses literal UTF-16 ordering; Action follows the upstream action flag order; counts sort numerically with unavailable statistics treated as zero. Each column uses the path as a tie breaker, including reverse sorting. Selection is retained by path. Git raw diff metadata identifies current/deleted gitlinks independently of filesystem state; these entries remain visible if statistics are absent. Missing numstat records for ordinary ignored-whitespace-only changes are filtered, while binary records with - statistics remain.

Copy Paths and Copy All Columns preserve the displayed selected-row order, with tab-separated fields and native LF line endings. Save List uses an NSSavePanel and UTF-8 output containing the pinned From/To revisions followed by selected paths. It snapshots the selection before opening the panel and writes atomically. The Save As icon is the unchanged upstream src/Resources/saveas.ico, verified against blob 8cf032d7da7ff664a917b1c53898fa156afc62d7 and added to icon provenance.

File-scoped Show Log routes each selected path to its own Log window at the pinned destination commit, or working-tree history when appropriate. History window identity now includes the path scope, so opening a second path does not overwrite the first. Submodule-expanded and child-history variants remain pending.

A real-Git test covers numeric 2/12 ordering, reverse ties, action/extension/deleted counts, binary retention, sorted clipboard fields and saved-list revision headers. A parser test covers newline/Unicode gitlinks with absent statistics. The existing whitespace test now requires the ignored-only file to disappear. All 239 tests passed, including the expanded 60-icon decoding checks.

One dark native QA process verified ascending and descending added-count order, Ctrl/Cmd-A selection and a path filter retaining the matching selected row. The selected-file menu exposed Log, Save List and both copy actions. Save List opened its native sheet, but automation could not complete Save/Cancel; no output file was created. Context-menu multi-row automation also failed to resolve row targets. Clipboard contents, disk Save completion and file Log acceptance therefore remain unverified. Parent/child HEAD, exact index bytes and the local working file were unchanged. Normal Quit did not dismiss the Save sheet; the finished disposable process was terminated with SIGTERM and process absence verified. No UI success is inferred from that cleanup. The checked menu/sheet code is still subject to native Save/Cancel and signed sandbox acceptance.

File-list build validation: unsigned Xcode Debug and App Store builds passed, as did their bundle audits, including the 60 original icons, embedded Finder extension and universal Git runtime. The static site build passed.

Connected child-history and Diff lifecycle batch — October 14, 2026

Commit/Working Tree child Log now uses a common validated, cancellable checkout lookup; see Working Tree parity. Submodule Diff's metadata read also has owned cancellation, a native Cancel control and an independent Quit guard. F5 still refreshes. Cancellation/failure retains the last complete From/To snapshot; forced owner retirement cancels reads and refuses late Log, Compare, Update and refresh callbacks. A passed Log side must still be present and available in the current details. Controller close cleanup runs once.

The source Update button launches a separate Update dialog; this port retains that behavior and refreshes on successful update without making the parent wait for an options dialog that the user may cancel. Log and Compare preserve the existing child revisions/type colors and identical-revision Status route.

Debug, all twelve affected Submodule Core checks and four grouped native child handoff/file-menu receivers passed with system and bundled Git. All initial/final receivers were reaped; fixture-only URL repairs did not repeat app/Core builds. See results and limitations. Physical sheets, Shift alternative tools, complete visual comparison and signed scope acceptance remain open.

Connected Changed Files file actions — October 15, 2026

The native file menu now includes the source's two Revert to revision choices, Blame, Export selection to… and Show submodule log, alongside Compare, unified diff, parent-repository file Log, Save List and clipboard commands. Source first-row/submodule, bare and deleted-version gates determine the offered actions; clipboard choices follow the source order. Existing original command artwork is used. Blame routes deleted rows to Base, historical rows to Version 2, and working renames to their old Base path; working additions are skipped. Tree objects do not acquire invented commit history. Submodule Log validates an initialized child and honors LogSubmoduleShowRevision when pinning its destination pointer.

Revert preparation validates the displayed snapshot against fresh comparison paths/actions and pins the chosen tree. Checkout updates the selected index and working files without moving HEAD. The source added/deleted rm-cached cases and working-rename cleanup are preserved, including the difference between historical and working comparisons. Recycling obeys RevertWithRecycleBin and retains Trash URLs on errors. Each recycle/remove/checkout recipe is a protected step: Cancel stops preparation or the next file, while an already-started checkout settles before Close/Quit ownership is released. Completed writes refresh repository consumers; retired/cancelled owners do not open late result dialogs.

Export preserves nested literal paths and raw destination bytes from pinned commits/trees, or copies current working file contents. Deleted files and gitlinks are skipped. The selected folder grant lasts through the operation. Preflight rejects Git metadata, escaping destination parents and overwriting a selected source; temporary files are renamed into place. Per-file errors use the source Ignore/Abort choice, with Abort as default. Revert shows its completed count in an owned acknowledgment sheet. Folder selection, error/result sheets, cancellation and requested/forced Close participate in the native operation lifetime.

Physical revision-entry/completion and menu acceptance, concurrent filesystem/index writers, physical Trash/Finder behavior and signed export/submodule grants remain open. This is a connected file-action implementation, not complete FileDiffDlg parity.

The file popup also captures its comparison generation, revision input bytes, options and displayed file records. Every leaf claims that context once before dispatch; changed inputs/options/files, a reload, a blocked owner or a repeated claim refuse the action. Independent double-click commands still use the current selection through their normal route.

The final Debug build, 20 affected Core tests and both grouped native engine cases passed. See file-action evidence for exact mutation/read-only scope, fixture repairs and cleanup. At that checkpoint, whole-selection Revert preparation still stopped before per-file Ignore/Abort. The recovery continuation below replaces that behavior for the recorded copy/missing-object and root cases.

Submodule action and Update ownership batch — 2026-10-15

The pinned SubmoduleDiffDlg.cpp uses both /endrev and /rev for each child Log, routes identical gitlinks to child status, carries Shift as /alternative, and sends the selected path to Submodule Update. Native Log now pins both the range and selected revision. Log and Compare first revalidate the initialized child root and the immutable displayed commit objects under cancellation; advancing refs cannot replace the displayed revisions. Historical gitlinks remain actionable after deletion from the current superproject. Absent sides use the empty tree, while working comparisons retain the working tree sentinel. Preparation does not update either repository index.

The captured Shift choice survives asynchronous preparation and is retained by the Changed Files window and its file comparison session. Reuse distinguishes an explicitly chosen alternate tool from independent comparison windows. Working index conflicts route to the existing submodule conflict workflow.

Update options and progress belong to the initiating Diff window. The same preferences and appearance are used, duplicate Update requests are refused, and options cancellation or result acknowledgment refreshes the parent once. Force-closing the parent invalidates the children. Reads and the actual update process retain their access lease and application Quit guard until settlement, even if their windows have been retired. Closing during a Diff read cancels and closes after settlement; the explicit Cancel button only cancels the read.

This remains partial parity. Physical menu/keyboard gestures, comprehensive light/dark layout review, signed Finder integration and App Store sandbox acceptance remain open. The dated QA record states the actual local scope.

The native Changed Files file table and owner-bound file-action presenter are now reused by Rebase's Revision Files tab. Both consumers also offer pinned historical Open/Open With/alternative-editor and Save revision commands. Application, Save and export panels share cancellation with the owning file operation; original menu icons and snapshot-bound one-use dispatch are retained. See Rebase Revision Files for connected scope and acceptance limits.

Per-file recovery and empty-tree Revert — October 16, 2026

FileDiffDlg::RevertSelectedItemToVersion visits selected rows in order, offers Ignore/Abort after a failed file and reports the completed count, including zero. The shared native Changed Files/Rebase Revision Files model now separates batch validation from each file's preparation. A copy destination absent from Base, a missing object or a changed working comparison record can reach that per-file question without rejecting every other selected row. Ignore continues; Abort stops before the next file and retains the completed count and earlier mutations. The source Abort default and owned result acknowledgment are unchanged.

Batch validation still rejects foreign/duplicate selections, malformed revision identities, unsafe paths, bare repositories and working-tree target revisions before writes. Historical snapshots retain their immutable object IDs and no longer require another whole-range diff before checkout. Working comparisons revalidate the selected row before its protected step. The existing recycle/remove plus Git checkout remains noninterruptible once started; cancellation can stop preparation or the next file. A pending error question also settles through the owning operation's cancellation/retirement path. Global accounting and grants last through the result sheet and worker drain. This is not a filesystem transaction against external writers.

Root/empty-tree comparisons now offer Revert to empty tree for the eligible side, using an empty tree in the repository's object format. It removes the selected added index entries. With recycling disabled, a historical comparison retains the working copy; a working comparison follows the source's extra working file removal. Neither operation moves HEAD. Rebase's root Revision Files retains an actual empty-tree Base and does not fabricate a parent commit.

Historical Export now reads Version 2 directly, as FileDiffDlg's GetOneFile does. It no longer reads Base bytes as an unnecessary part of exporting the destination. A missing Base blob can therefore coexist with a successful destination export. Deleted/gitlink skipping, owned folder selection, alias/metadata/containment guards, per-file I/O Ignore/Abort and atomic temporary-file publication remain unchanged. Unsafe invocation/destination preflight still rejects the batch before writes.

The grouped recovery record distinguishes new Core/native cases from retained Changed Files and Rebase workflows, including actual native error/result sheets and the corrected old root-action expectation. Physical gestures, all copy/type/gitlink combinations, actual Trash behavior, signed grants and full FileDiffDlg/Rebase/App Store parity remain open.

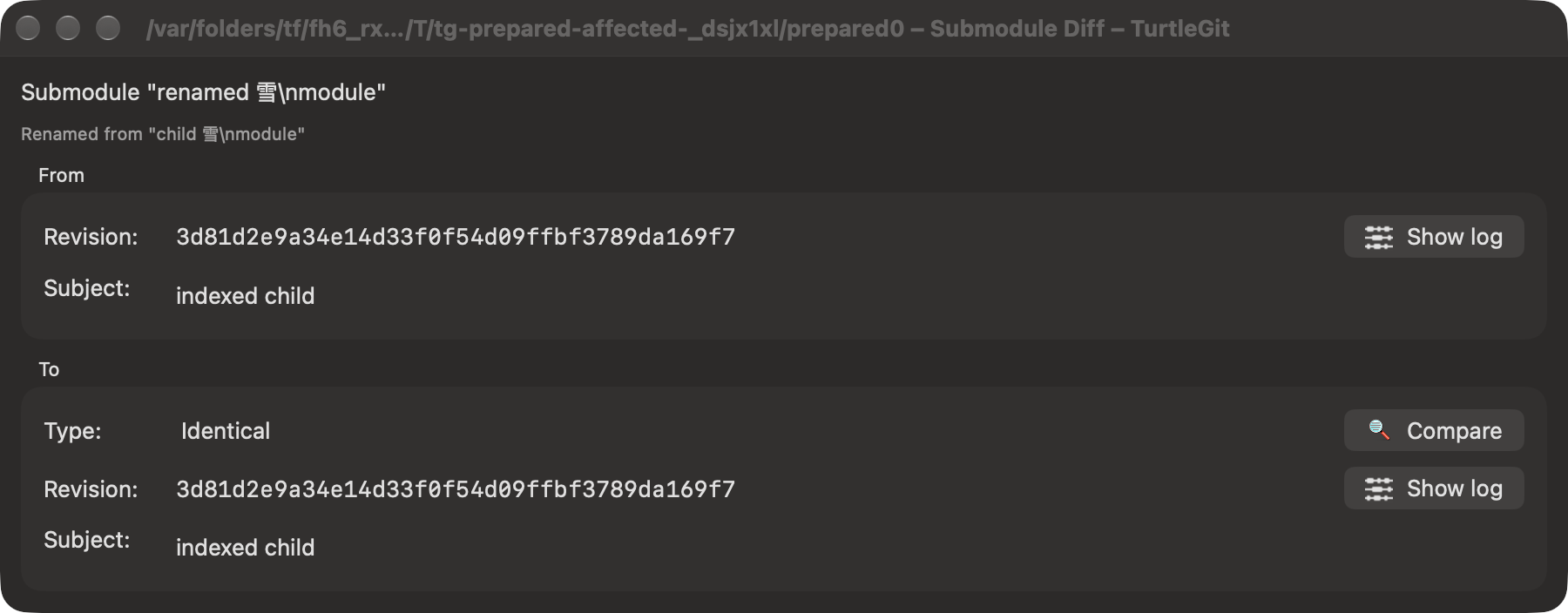

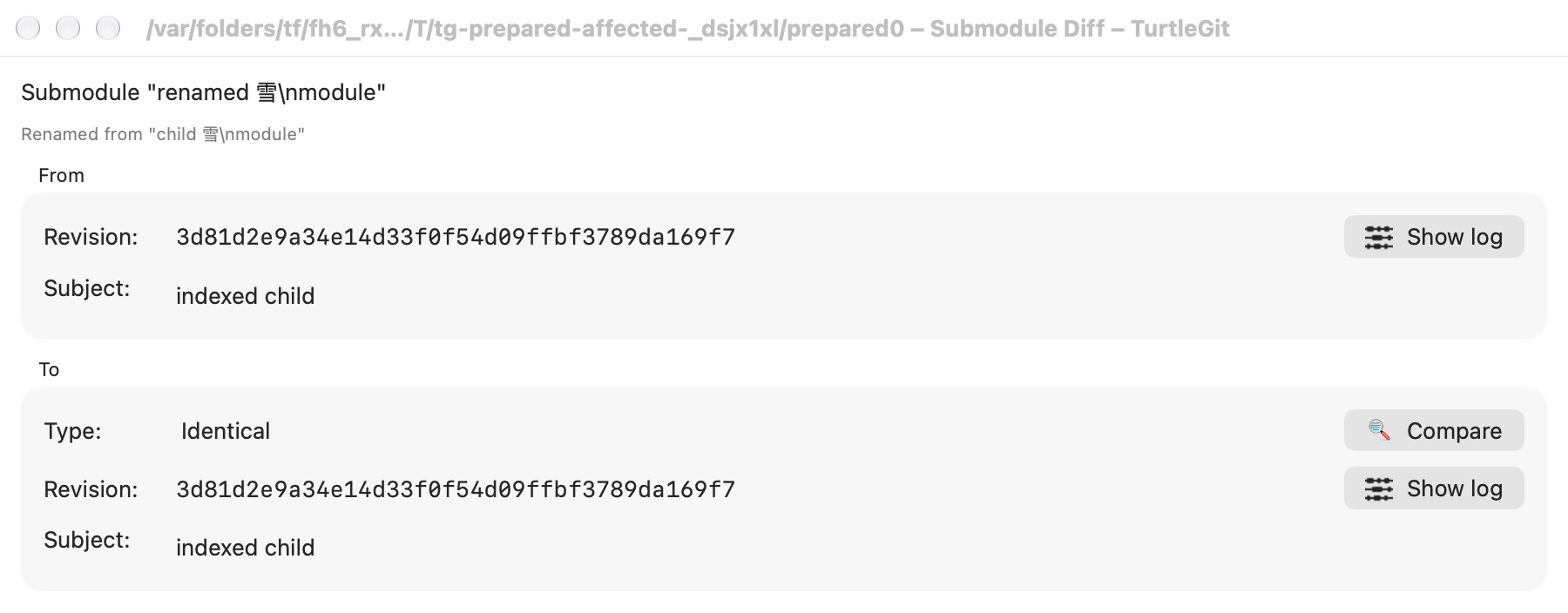

Prepared gitlinks and renamed comparison paths — October 16, 2026

Pinned GitStatusListCtrl::IDGITLC_PREPAREDIFF_COMPARE dispatches through CGitDiff::Diff; directories enter SubmoduleDiff, whose working-copy branch uses the current path's indexed gitlink rather than HEAD. Revert now enables Mark/Compare for indexed submodules, preserving file-only Save As. Prepared marks carry their directory kind through the repository-bound presenter; mixed submodule-to-file targets report an error instead of opening a binary file viewer. With two live marks, the From side uses the current index and To uses the actual initialized child HEAD plus dirty state. Submodule Diff explicitly labels From (Index). The source does not compare two arbitrary directory inventories; this port retains the submodule interpretation of that status-list action.

Changed Files, Rebase Revision Files and shared historical comparison dispatch now pass CommitFile.oldPath into the submodule metadata reader. Historical From gitlinks are read at the old tree path; To and child metadata use the current path. Directly invoked staged renames can recover the old path through existing read-only rename detection. Unsafe old paths are rejected before Git access. The renamed path is displayed in a secondary header with additional native window height, while Update continues to target the current path.

The existing Submodule Diff owner retains cancellable metadata/command reads, pinned Log/Compare objects, captured Shift, child-checkout validation and Update options/progress. The new identity fields also distinguish reused windows. F5 requires the active owning window, its own event and no modifiers or attached sheet. The same source preference domain now reaches the common presenter.

Seventeen focused Core cases and six grouped native case/engine runs pass. After the native-only filename display repair, the two affected prepared cases pass again; the hosted-compiler repair also passes two retained Browser presentation runs. All ten owned receivers are absent. Reviewed actual light / dark captures show complete old/new paths and revision groups. Batch evidence records exact repair scope and the separate hosted compilation failure. Exhaustive copied/renamed/deinitialized combinations, physical layout/keyboard/Finder, minimum-OS and signed sandbox acceptance remain open. This does not certify the complete Submodule Diff port.

Diff command entry and historical path family — October 18, 2026

Pinned source: 7338078f8ddd924b8cddee35f512f2286072136d, src/TortoiseProc/Commands/DiffCommand.cpp (DiffCommand::Execute), src/TortoiseProc/GitDiff.cpp (CGitDiff::Diff, SubmoduleDiff), src/TortoiseProc/SubmoduleDiffDlg.cpp (OnBnClickedShowlog*, OnBnClickedShowdiff, OnBnClickedCompare) and the IDD_DIFFSUBMODULE resource. The connected entry batch adds the source submodule flag and restores directory, unified and historical path2 precedence before entering the existing native Submodule Diff/Changed Files/File Compare family. No invented submodule switches are accepted.

Prepared checks (not executed by this implementation agent): parser/path-list and unified sentinel assertions in PrimaryCommandInvocationTests, canonical gitlink reads in SubmoduleComparisonTests, missing-path/bare snapshots in FileComparisonTests, and the private grouped receiver qa/submodule-diff-entry-native-2026-10-18.swift invoked by scripts/test-submodule-diff-entry.py. The parent checkpoint records actual results. The receiver covers real dirty/paired/index gitlinks, source route precedence, captured preferences, missing paths, same-path pairs, bare acceptance and working-sentinel refusal, unchanged HEAD/index and owned window cleanup.

Remaining gaps: Windows HWND/group/taskbar/close-on-end and process-result protocols; complete upstream permission/revision-expression quirks; exact visual comparison of every resource/state; physical Finder and signed/App Store integration. On macOS, external path2 fallback may first request repository access. An absent directory endpoint without explicit submodule follows native file-content diagnosis rather than guessing that a missing historical path was a directory. Existing broader family limitations above remain open.

Parent checkpoint: both engines pass this receiver after the actual root-discovery repair and fixture diagnostics/snapshot-owner corrections. Exact normalized path identity now avoids Foundation URL directory-bit differences when finding an indexed containing repository. One new Core regression verifies containing-root routes, child-file/Status ownership, unregistered fallback and unchanged indexes. The initial 102 focused Core cases, that affected regression, the final Debug build and retained Resolve/Edit Conflict native cases pass. Batch evidence records every failed attempt, focused repair, log digest and owned process cleanup. No full Core repeat, complete hosted pass or signed/Finder parity claim is implied.
