Submodule comparison and conflict dialog actions

Pinned TortoiseGit: 7338078f8ddd924b8cddee35f512f2286072136d. Implementation baseline: 62330c51. This native workflow family passed its scoped grouped checkpoint after the recorded compiler, caption and fixture repairs.

Source contract

Resource references are IDD_DIFFSUBMODULE and IDD_RESOLVESUBMODULECONFLICT in src/Resources/TortoiseProcENG.rc; both remain partial dialog reviews.

SubmoduleDiffDlg.cpp::OnInitDialog and OnBnClickedShowDiff distinguish the primary button action from the dirty-submodule dropdown. Identical revisions open child Working Tree status. A dirty comparison of a known change offers Show diff between the displayed child commits and Compare against the working checkout. The chosen dropdown entry becomes the primary button action. Dirty Unknown uses the working checkout. The source button is disabled if either side is unavailable. Update appears for an unavailable side or a working-tree comparison. Both Log buttons pass the displayed child hash as both /endrev and /rev; Shift is sampled for the actual comparison action.

Source F5 ends the current dialog and reconstructs it with new metadata. The native port refreshes in place, retiring actions captured from the old display and resetting the primary action for the new snapshot. The selected action is a per-display choice, not a new global preference. Existing dialog geometry and source colors retain their separate persistence and presentation contracts.

SubmoduleResolveConflictDlg.cpp and IDD_RESOLVESUBMODULECONFLICT place Base Show log beside Revision. Mine and Theirs place Show log beside Type and Use this beside Revision. An unavailable subject has white text on red; forward, rewind and divergent commit-time types use the source green/pink/blue/orange/gray colors. Source child Log carries both selected and ending revision. Rebase side labels retain their actual stage identities. The existing Resolve/Reset continuation and deletion recovery remain the Git operation contract.

Connected native scope

A displayed comparison action must bind its exact metadata snapshot, owner, generation and originating preferences. F5, Update, Quit confirmation and closure retire retained actions. Captured dropdown callbacks must not silently act on newer metadata. Current-click Shift belongs to the accepted action, including asynchronous child-repository preparation.

Visual closure is separate from worker completion. The closed comparison or conflict controller must retain its permission lease, update/options/progress or Reset children, and pending questions until actual workers and native sheet detachment finish. Its cache-removal callback follows that drainage. A comparison that discovers a conflicted gitlink hands off to the conflict chooser after its read and original owner retire, rather than opening a new chooser during the old read. Late answers and child callbacks cannot revive a retired owner.

Conflict windows must distinguish independent originating preference domains in their cache identity. Child Log and Reset receive that captured domain. A global Quit confirmation blocks idle conflict actions as well as comparison actions; cancellation resumes live owners without granting authority to old replies.

Verification boundary and remaining work

Eight distinct native case/engine pairs passed across the grouped checkpoint and affected routing repair, with system and packaged Git. The checks cover real split controls, source action routing, stale display receipts, original preferences, held readers and Update processes, cancellation questions, cache replacement, cancelled Reset and successful Reset followed by exact gitlink resolution. All eleven receivers, including the failed fixture attempt, were reaped and independently confirmed absent. Four complete offscreen light/dark windows were reviewed; the final conflict pair includes the escaped macOS filename header.

The Debug commands after the compiler repair exited zero and current app objects passed native source/object freshness and linking checks. Their contradictory SwiftCompile failed-with-exit0 diagnostics remain recorded. This is not a clean hosted SDK build claim. Core was unchanged and was not rerun. Dated evidence records each attempt and the focused repair scope. This does not prove complete Submodule Diff/Resolve parity, physical keyboard/VoiceOver/Finder behavior, every missing-object or mixed-type case, signed repository grants, minimum macOS/Intel execution, full hosted CI or App Store distribution. These remain explicit acceptance work.

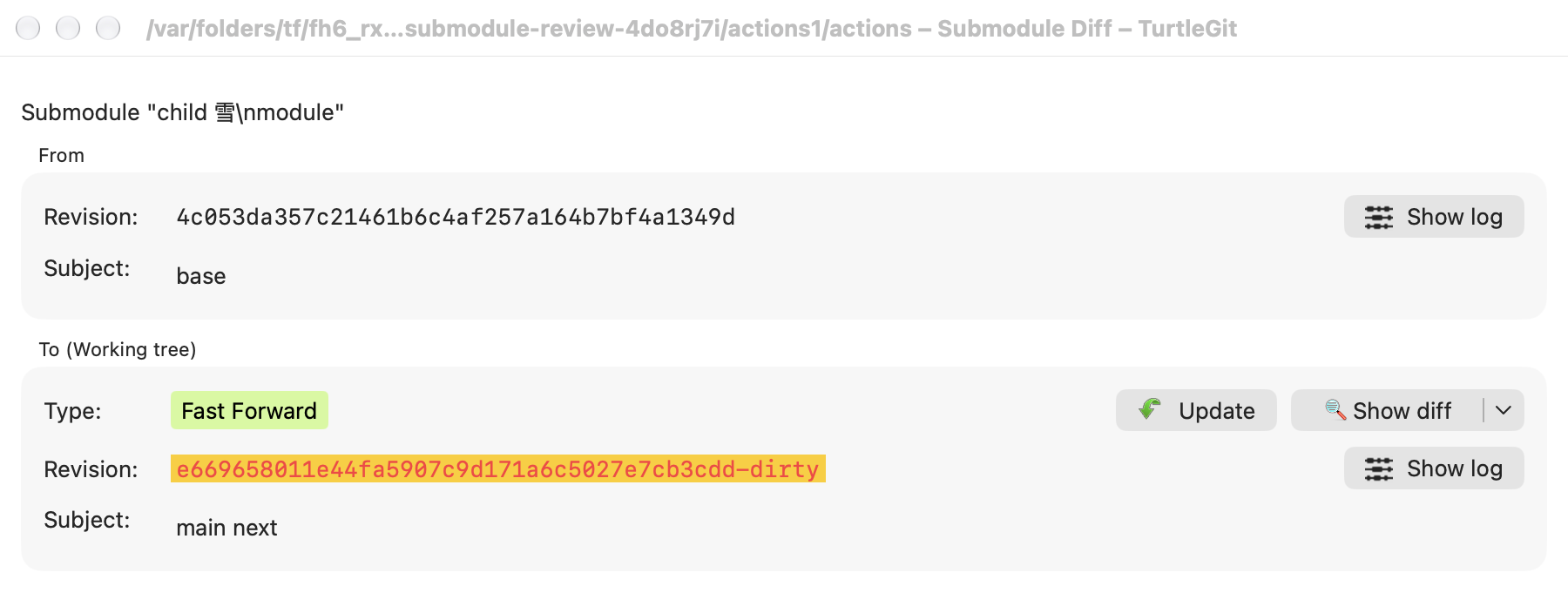

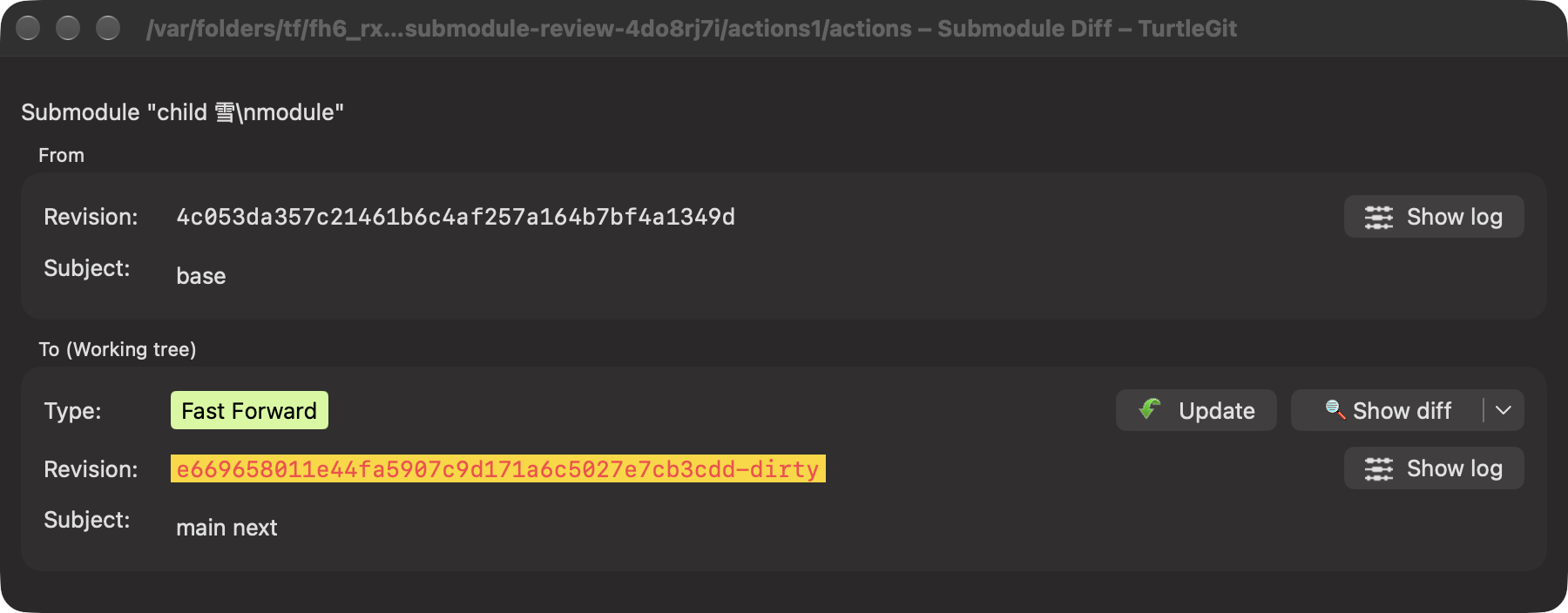

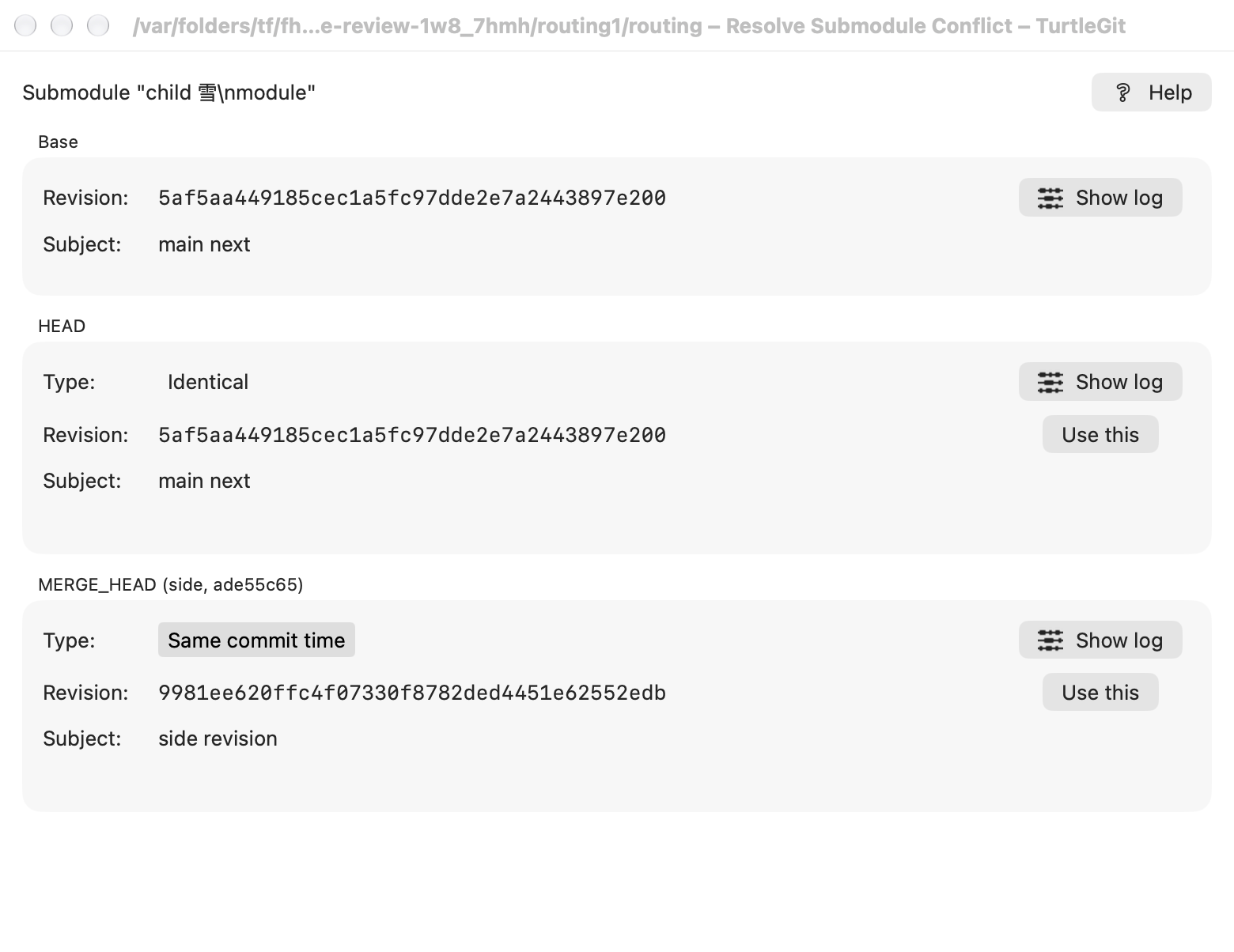

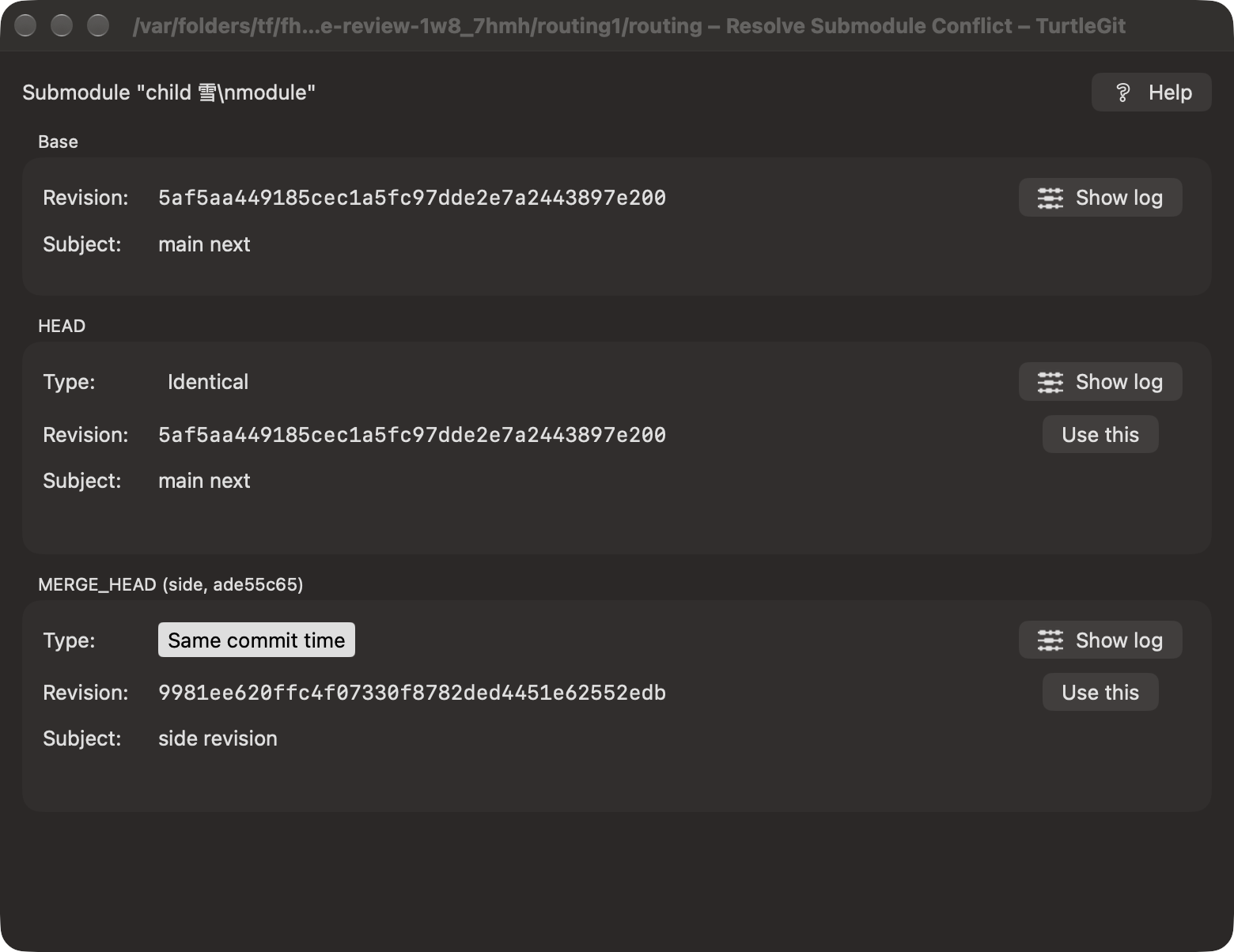

Actual comparison light / dark and conflict light / dark captures show the current native forms. They do not cover every unavailable/type/rebase rendering state.

See Submodule Diff, Submodule conflict, Update recovery and conflict identities.
