Working-file Revert parity

The references are the IDGITLC_REVERT branch in GitStatusListCtrl.cpp and RevertProgressCommand.cpp, pinned by upstream.json. The latter source blob was verified as 8efbc404abacc78e8a1ff0b92d7bbc724e91356e before implementation. This is working-file Revert, distinct from reverting a historical commit in Log.

Revert appears for selected versioned rows with the original menurevert.ico. Modified/conflicted selections ask before proceeding; No is the native default. Added-only selections become unversioned without deleting their working contents. Successful actions clear selected checks and refresh the list and patch view. Saved Restore after commit copies remain available independently.

Normal Revert restores HEAD contents to both index and working files. Amend Revert uses the first parent regardless of the displayed comparison. An unborn repository can revert staged additions without creating HEAD. Files replaced during Revert are moved to macOS Trash, adapting the upstream default recycle-bin behavior. Deleted files are recreated; renamed files return to their original names. Submodule pointers are reset without changing their checkout or local edits. Renamed initialized submodules use Git's reverse move to preserve checkout metadata and update their path in .gitmodules, followed by pointer restoration.

The backend rejects mixed unversioned/ignored selections, changed status rows, unsupported filesystem objects and parent paths escaping the working tree before working-file changes. It locks the actual index, including linked-worktree indexes, and runs Git writes against a private copy. The real index is replaced only after all steps succeed. A checkout/filter error leaves the original index intact and reports structured Trash locations for recovery. Working-file changes are not a filesystem transaction: partial Git checkout or submodule moves can still require recovery. Concurrent external filesystem edits are not fully prevented.

Verification

Eleven real Git tests cover binary/staged/later working contents, unrelated staged changes, literal Unicode/newline/pathspec-looking filenames, additions before the first commit, renames, deletions, parent-based amend, symlinks, escaping parents, invalid/stale selections, existing index locks, initialized/uninitialized gitlink conflicts, submodule rename metadata, linked worktrees, text conflicts with an active merge and a failing required checkout filter.

The focused Revert/Restore/Working Tree suite passed 21 tests. The unsigned Xcode Debug app build and bundle audit passed, including the embedded Finder extension and all 59 original icon assets. Native QA used one disposable application instance: No preserved HEAD and selected/unrelated staged and working contents; Yes restored only the selected modified file and left its later working bytes in Trash. Its row disappeared. Added-file Revert preserved disk bytes, removed its index entry and displayed an unchecked unversioned row. The process was closed after these checks and process absence verified. A transient UI observation failure was investigated using the same live process.

Dedicated native dialog and Finder routing

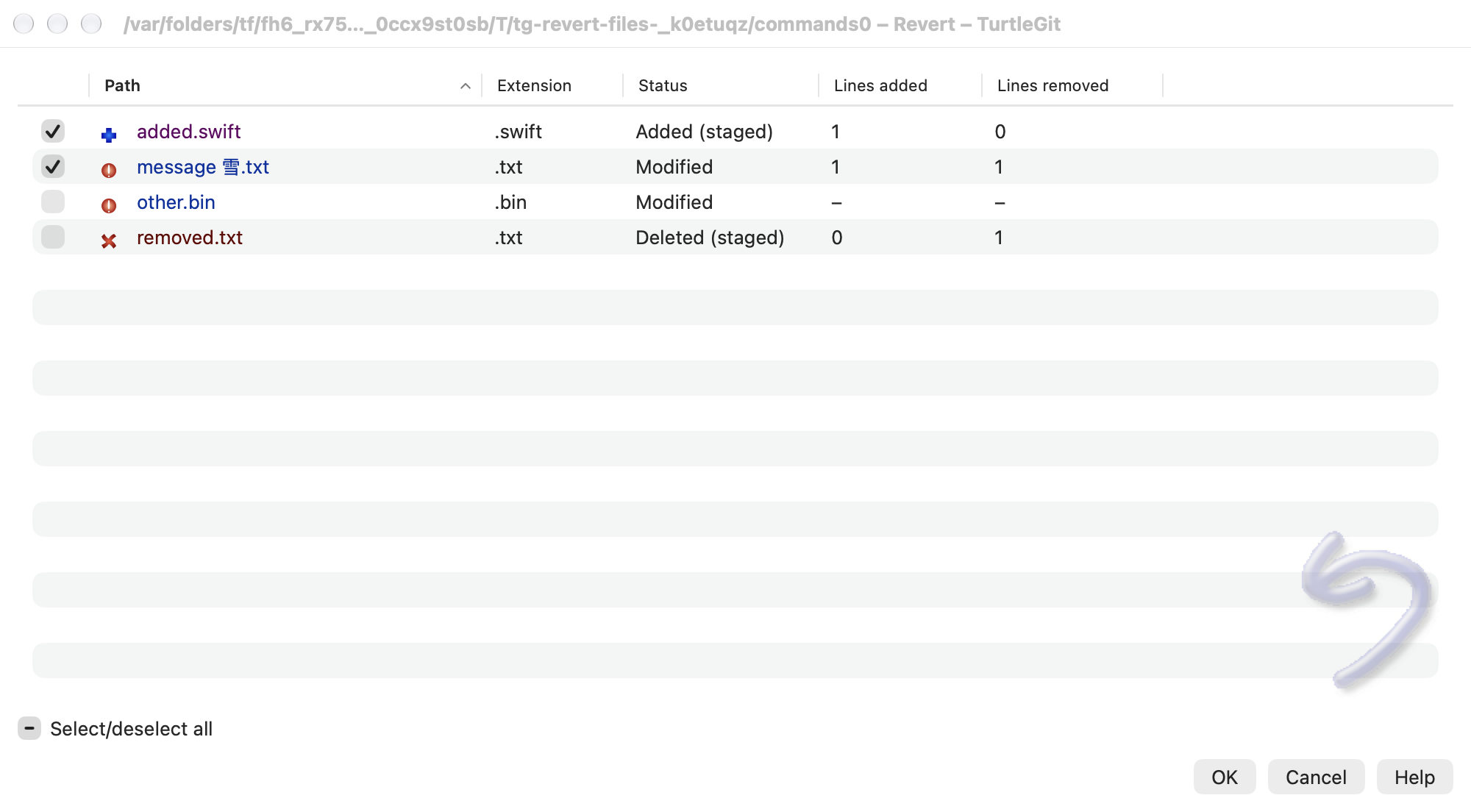

The pinned RevertDlg.cpp, RevertCommand.cpp and IDD_REVERT were reviewed; the two source blobs were verified against the inventory. The native window uses the upstream table above Select/deselect all and OK/Cancel/Help arrangement, with Path, Extension, Status and added/removed counts, original status/menu artwork, independent checkboxes and highlighted rows, and a saved window frame.

Scoped folder requests show versioned changes recursively. Directly requested files and added files start checked; other folder changes await review. Mixed Select/deselect all clears checks, then an unchecked control selects all. F5 refresh retains reviewed checks; Control-Return and Command-Return accept the plan. Cancel performs no Revert. The unversioned-items note retains the upstream default-hidden behavior and uses the source UnversionedAsModified preference. File drops are restricted to the same repository and refresh the scope. Double-click/context comparison hands off to the shared native comparison; the expanded context menu is described in the planning-family continuation below.

Revert now has an icon-bearing app/Finder action and checked cached eligibility. Its URL carries literal multi-path selections through repository authorization to the dedicated window. Selecting a submodule checkout root routes Revert to its indexed entry in the superproject; independent nested repositories retain their own owner. Busy Revert windows prevent close and application Quit while Git/filesystem operations run. Idle Revert controls are disabled while another window’s application-Quit confirmation is pending.

Three new tests cover real scoped selection defaults, component boundaries, unversioned exclusion, unchanged index contents, cached Finder eligibility, literal URL roundtrip and initialized submodule/independent-repository routing. The final focused selection/Revert/Finder/icon suite passed 20 tests. Native Finder-style URL QA checked the initial mixed selection, mixed/off/on selection, F5 preservation, Cancel without Git changes, and selective Control-Return acceptance with unchecked staged/working contents and HEAD retained. Actual light/dark captures are site/assets/revert.png and revert-dark.png; width and footer sizing were corrected after inspecting the native captures. Each preview was closed and process absence verified before the next rebuilt preview opened. The final unsigned Xcode Debug build and app/extension/icon audit passed.

The planning-family continuation below adds shared file commands, sortable saved columns, direct clean files and owned drop/read handling. The later saved-file family adds original background artwork. Full source popup masks, saved frame reopen and multi-display placement remain pending. The Finder request test does not prove signed Finder extension activation or actual Finder menu acceptance.

Remaining parity

Signed Finder menu activation, remaining upstream progress notifications and post-command options, recycle-bin preferences, post-Revert submodule comparison, copy and case-only rename combinations, renamed-but-missing destinations and root-amend behavior still need audit. Native multi-selection, staged mode, amendment, conflict and submodule UI acceptance remain to be exercised. Signed sandbox Trash access and external-volume behavior are unverified. These source inventory entries remain partial; the app is not yet ready for App Store distribution.

Native Revert progress and cancellation

The pinned GitProgressDlg.cpp and .h blobs were verified against the source inventory. CGitProgressDlg uses IDD_SVNPROGRESS: an action/path list above progress, information and OK/Cancel controls. The native Revert progress window follows that arrangement with original command artwork and colored terminal states. Accepting the selection closes the planning window before starting this window. Dedicated Revert keeps its terminal result open; Commit-list Revert requests successful auto-close unless submodules are selected. Failed/cancelled Commit-list Revert retains selection checks.

Progress arrives in order through an asynchronous stream. Cancel, Escape or closing a running progress window requests cooperative cancellation. OK remains disabled until completion, repeated cancellation is disabled, and application Quit is blocked while the operation runs. Git batches contain at most 64 paths; checks between batches and filesystem operations stop subsequent changes. A running Git command finishes before cancellation takes effect. Cancellation before index publication preserves the original index, reports structured Trash URLs, and explicitly explains that completed working-file changes remain. The final recovery button reveals those copies in Finder.

Five additional integration tests cover pre-cancellation, stopping after the first Trash operation, stopping before checkout, a 70-file checkout cancelled between batches, and successful progress with a literal added filename. Together with the eleven existing Revert tests, all 16 passed. The unsigned Xcode Debug build and embedded app/extension/59-icon audit passed. The complete Swift test suite passed 219 tests with zero failures.

One disposable native preview used a delayed checkout filter. Quit was blocked while busy; Cancel changed the status and disabled itself. After the active checkout finished, the result showed cancellation with completed rows, enabled OK and the recovery button. HEAD and indexed contents matched their pre-operation values; checkout contents and the exact displaced working bytes in Trash were verified. Status refresh can update index stat metadata; this native check does not assert byte-identical index serialization. Core cancellation tests assert byte-identical indexes before any refresh. The real capture is site/assets/revert-progress.png. The finished progress window was closed; a subsequent accessibility observation timed out, so the same completed test process was terminated and process absence verified without reopening it.

A second, sequential native run checked successful dedicated Revert: the result remained open with completed rows, enabled OK and disabled Cancel. Working and indexed contents matched HEAD; HEAD was unchanged and the exact displaced bytes were verified in Trash. Normal application Quit exited, and process absence was verified before any further UI acquisition. The unsigned App Store build and its app/extension/icons/pinned universal Git runtime audit also passed; this does not prove signed sandbox acceptance.

Successful Commit-list native auto-close, native failure/retry, Escape/window-close variants, clipboard/reveal acceptance, dark progress rendering, global auto-close preferences, post-Revert submodule comparison, background animation and shared progress for other operations remain pending. These entries are partial.

Post-Revert comparison data now includes the exact resolved baseline revision and restored submodule names. The read-only classification backend and its tests are recorded in SUBMODULE-DIFF-PARITY.md; the native Handle submodules action and comparison/Update windows remain pending.

Connected progress/recovery family — October 14, 2026

Revert preparation now passes cancellation through status/branch/index reads. Actual private-index Git steps stream bounded colored output while retaining the ordered Action/Path table. Running mutation steps finish before cancellation prevents the next step or index publication; a confirmation does not kill a half-completed checkout. Native ConfirmKillProcess prompts retain No/Yes, and automatic completion waits for an owned question to settle. The counter and repository permission cover all reads, steps and pending questions after forced retirement. Retired rows, output, parent callbacks and result actions are suppressed.

Captured AutoCloseGitProgress now applies to dedicated Revert results; no-options retains the source Handle submodules action, and no-errors may close successful results with that action. Commit's explicit success-close override still requires no submodule post-action. Failed/cancelled results retain Retry, recovery and output. Retry reads the current originally selected paths rather than replaying stale rows; already completed paths remain eligible only while tracked. Unrelated changes are not included. All recorded Trash copies survive later attempts. Action logs include rows, command output and the result; the source submodule comparison handoff remains.

Physical progress, confirmation timing, keyboard/themes, signed Trash/sandbox and all upstream controls remain open. This family preserves cooperative mutation-step cancellation and does not claim an atomic filesystem transaction or cancellation that rolls back completed working-file effects. Grouped evidence follows validation.

Debug, 33 related Core tests and four grouped native cases passed on the first checkpoint with both Git engines. Receiver cleanup and exact validation limits are recorded in the batch evidence.

Revert planning family — October 16, 2026

Source: pinned RevertDlg.cpp initialization/read/drop handlers and GitStatusListCtrl.cpp Revert/menu handling. The source enables the shared file popup except Commit, Restore and changelists, and uses the five-column Path/Extension/Status/Lines added/Lines removed default.

The native planning window now embeds the shared Working Tree file-action backend without grouping or its preferences. History/old-name history, Blame, two-file comparison, Open/Open With/editor, export, Reveal, deletion, Resolve/Ignore, Rename/Move, index flags and LFS retain original menu artwork and captured paths. The ordinary comparison handoff and shared unified viewer replace the earlier plain-string patch sheet. Context Revert uses source Yes-default confirmation for modified ordinary files and opens the existing recovery/progress controller; closing that child refreshes the planning table. Related Rename/Move/Ignore/Resolve completion also refreshes the bound repository; Rename updates direct scope and checks to the new path.

Status, statistics, metadata, repository identity and menu state publish as one owned snapshot. Refresh supersedes and cancels its predecessor; cancellation and forced closure retain worker/access lifetime until drain and reject late results. Same-repository drops coalesce over the source 200 ms delay and union the invocation scope. Failed/nested-repository drops retain prior rows/scope. A directly requested clean tracked file appears checked; root/folder requests omit clean files and unversioned files. Existing checks/highlights survive successful refresh.

The shared native file-list interaction owns checkbox/Space, keyboard deletion, clipboard, optional filename/date/size columns, sorting, fitting and confirmed Reset columns. Layout is stored under RevertDlg.FileColumns; Working Tree and Commit preferences remain independent. F5 and Control/Command-Return are scoped to the owning active window. File questions, export/application panels and progress children own close and Quit lifetime, including forced retirement.

The Debug build passes after the recorded compiler repair. Planning, retained progress and shared Working Tree file-menu checks pass with system and bundled Git; the Revert-only queued-refresh repair passes its affected two-engine check. All ten receiver processes, including the two failed initial runs, are absent. See batch evidence for exact scope and the AppKit reentrant-table warning. These checks do not certify full source popup-mask, physical keyboard/Finder, all conflict/gitlink/rename combinations, visual or signed sandbox acceptance.

Saved comparison, Save As and list artwork — October 16, 2026

RevertDlg enables GITSLC_POPSAVEAS and GITSLC_POPPREPAREDIFF; the pinned Working Tree, Commit and Resolve initializers explicitly disable them. Revert now offers the separate Save As, Mark for comparison and Compare with… actions with original icons. They use the source selection mark, independently of the highlighted set. A replacement mark or refreshed file snapshot invalidates an older comparison popup. Local marks retain live working paths; imported Finder Diff Later marks retain their exact file and repository-access grant and import only once per saved identity, preserving a later local mark.

Comparison dispatch uses the existing owned prepared-file route. Marked file reads, source/default alternative-tool choice and Finder mark consumption retain that route's ownership. The prepared-submodule continuation in Submodule Diff parity now handles gitlink marks through Submodule Diff; Save As remains a file action.

Save As owns its NSSavePanel and copy worker through cancellation/retirement, including a held destination reply and forced owner close. The suggested working filename uses the source's empty-revision suffix (name-.ext). Choosing Cancel writes nothing. The chosen destination keeps its security scope during the actual copy, and Core's existing literal-path, regular-file, same-file and Git-metadata checks remain authoritative. Binary bytes are copied without altering HEAD/index.

The original RevertBackground.ico is bundled byte-for-byte with provenance. Its 128-point artwork stays anchored to the native table viewport, below native cells, without input/accessibility interception. The shared ShowListBackgroundImage preference controls it. Detachment and forced window closure retire the drawing layer. Other consumers leave the optional background unset.

The native Copy to Clipboard column item now captures row identities even for entry-based lists; Revert also captures the displayed column text and rejects the item after refresh or owner retirement. The existing full/relative/name/all copy commands and source menus disabled in the other dialog families remain unchanged.

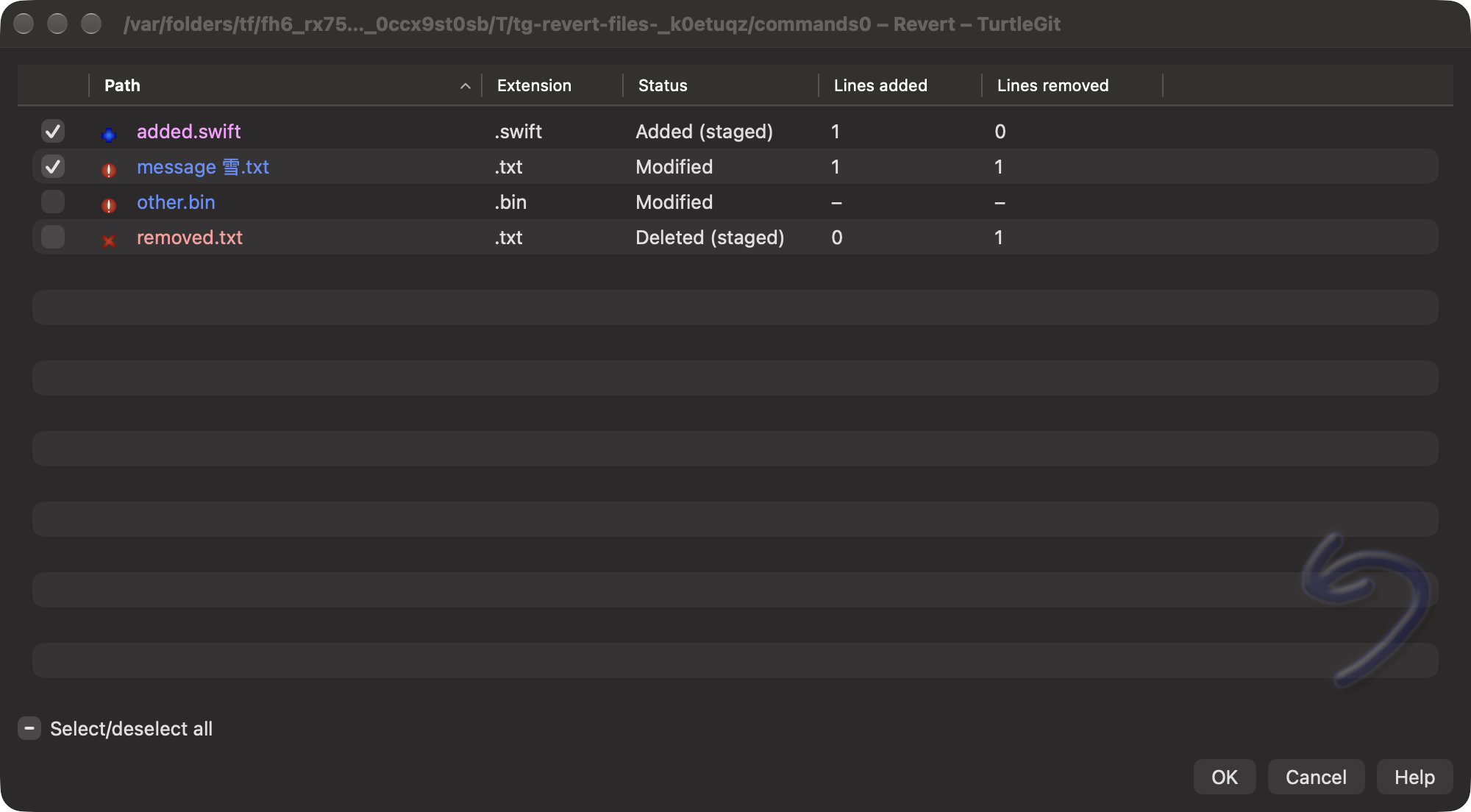

The Debug build, three icon checks and all six grouped native case/engine runs pass after the recorded fixture correction. All seven receiver processes, including the initial failed fixture, are absent. Reviewed actual light / dark captures show the native five-column layout, status colors and original artwork. See batch evidence for scope, repair and the retained planning-table warning. Full popup-mask/submodule, physical, minimum-OS and signed sandbox acceptance remain open.

Native file-list refresh position — October 16, 2026

The planning window now restores native viewport, highlighted files and focus only after its complete owned snapshot reaches the actual table. Checks retain their independent lifetime; new scopes reset position, and cancellation or newer reading intent retires older callbacks. Source preference and file-only Ctrl/Cmd-A share the file-list refresh family. Eight grouped case/engine runs pass; physical and signed acceptance remain open.

Exact planning, checkbox and operation identity

The connected Add/Revert selection family now retains exact valid UTF-8 Git names through checked/highlighted rows, marked menus, refresh and private-index operations. Revert checkboxes apply to the highlighted files as in the source; Add native menu invocations retain their original payload and reject stale or retired targets. See the family document for actual grouped evidence, light/dark captures and remaining physical/signed acceptance. This supersedes the pending Add/Revert outer-selection migration; full dialog parity remains partial.

Grouped selection evidence.

Checked acceptance and owned file commands

The connected file-command flow now uses the source's checked-path ordering and once-only acceptance. Add owns Save/Export/ Open With/editor from its chooser through worker/launch drain; Add and Revert share a picker identity/release/retirement session. Actual grouped evidence, compatibility diagnosis and acceptance boundaries are in the batch record.
