Recorded-base patch recovery

This guide covers raw-patch review and three-way recorded-base merging. Mail-patch import uses git am and a separate identity/recovery/close workflow; see Apply Patch Serial.

Source pin: 7338078f8ddd924b8cddee35f512f2286072136d, Git/GitPatch.cpp::PatchFile, GitPatch.h::GetFailedHunks/GetHasConflict, TortoiseMerge/MainFrm.cpp::PatchFile and FilePatchesDlg.cpp initial row states.

Upstream first tries the working file, then retrieves the version named by the patch and patches that base. It opens the recorded base, current working file and patched base as a three-way merge. The native patch viewer now follows that flow. It never substitutes HEAD or a guessed revision when the recorded object is absent.

Preparation copies captured inputs to a private workspace and uses the original reverse/strip/include and apply-policy settings. If direct application fails, Git index headers supply the exact old blob (new blob for reverse patches). Locally available blob bytes seed that workspace; only its files are patched. The caller retains current working-file snapshots for later Save validation. No application, index change, commit or remote fetch is part of Preview. Recorded-base text renames and executable modes use the same captured source/destination path machinery. Missing versions and unsafe paths remain errors rather than approximate merges. Special-file recovery now provides explicit whole-file choices for binary, symbolic-link and deletion conflicts.

The list now has initial Ready/Conflict/Error classification. Like the pinned source's rejects flag and nonempty base-path test, Conflict means recorded-base recovery was necessary; it is not a numeric count of unresolved hunks. A successful whole-patch check establishes Ready without preparing every file twice. Otherwise per-file preparation establishes the rows, with owned cancellation. Completed paths are excluded from repeated inspection. An initially applicable review still refuses later conflicts until Refresh; Save always validates its own captured inputs.

Preview embeds the existing Subversion-backed three-pane editor beside the file list. The native Merge toolbar is rebound to that editor, including side choices, Undo/Redo, Find, source comparisons, Save As and view controls. Captions identify Current working file and Patched recorded base. Source block choices retain engine row metadata and exact Undo; remaining conflicts require explicit Save confirmation. Mark as resolved is disabled because this is patch review, not Git index resolution.

Save generates the existing guarded edited-result patch from captured current files to the reviewed result. It validates bytes, modes and paths before application; source patch bytes stay unchanged. A completed merge retains its clean preview and clears its edit history; another Save or edit is refused. The existing optional Add preference applies to explicitly saved new files. A zero-line result follows PatchSave's existing deletion semantics. Full backup/empty-file policy equivalence with every non-patch editor remains a separate review requirement.

Patch all/selected continue in source file order. Directly applicable files use the existing application path. A clean recorded-base merge saves both independent changes without staging. Conflicting or ignored-conflict results remain unwritten and point to Preview; later files still run. The original atomic checked-file Core API stays distinct. Dirty Cancel/discard/save, Open/Reload, parent operations, Quit, forced retirement and late result fencing share the viewer/editor owners and grants.

Grouped evidence records the actual build, Core/native scope, repairs and captures. This remains partial upstream parity: missing base objects require the appropriate local history, and full physical toolbar/menu/input, large-patch performance, signed Finder/sandbox and App Store acceptance remain open.

The grouped checkpoint and focused repairs cover 31 distinct passing Core cases and nine passing native case/engine runs. Core checks include exact conflict preview/save, reverse blob identity, clean context merging, rename/mode preservation, ignored-conflict refusal and stale/unsafe paths. Native recovery ran on both Git versions, alongside retained panel, per-file, full import/editor/ownership and shared-menu workflows. Initial stale-review, error-type and toolbar compile repairs are recorded; the first native fixture needed current-conflict reselection after Undo. No action fence was weakened. All owned receivers were reaped and independently absent.

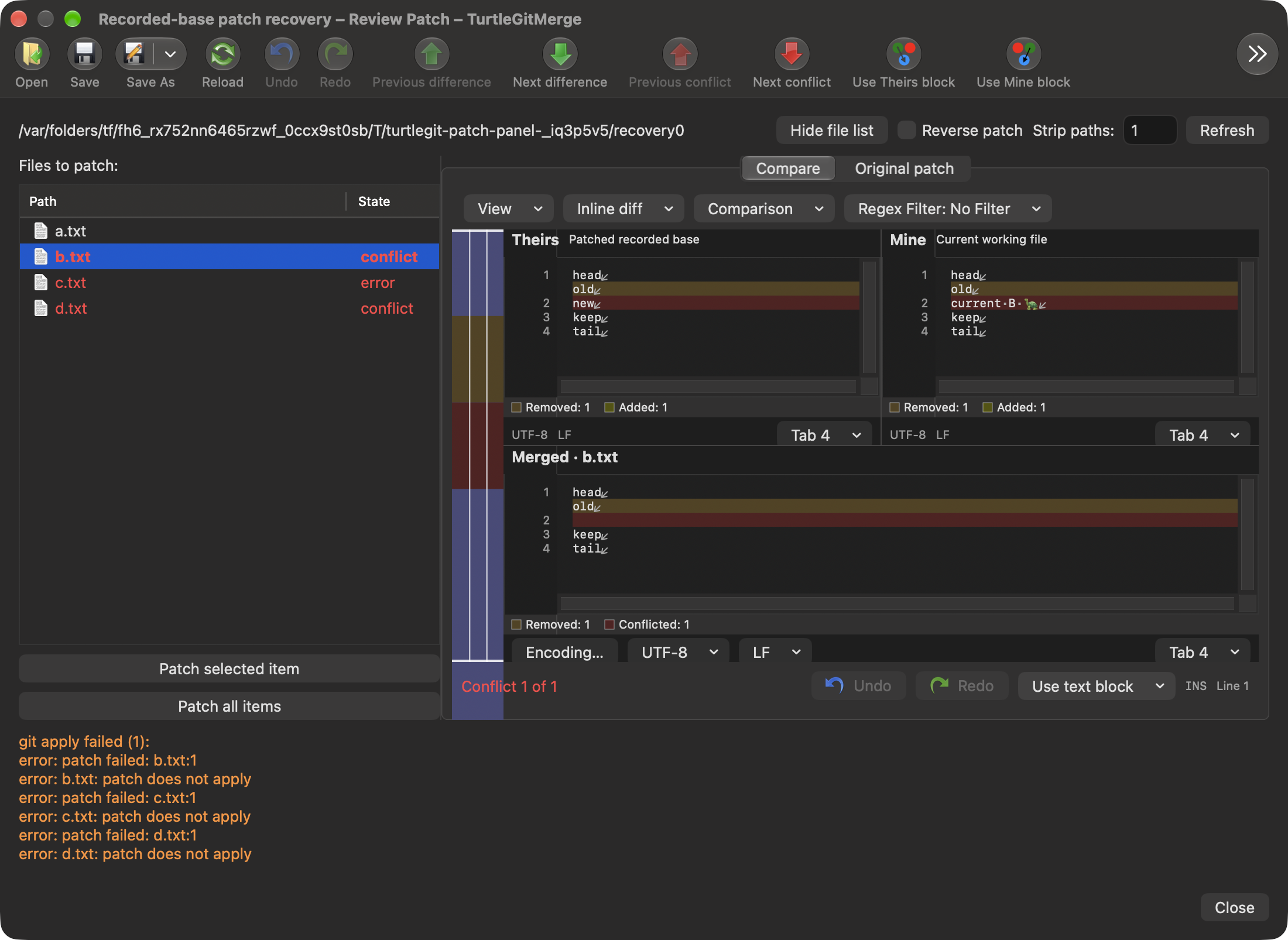

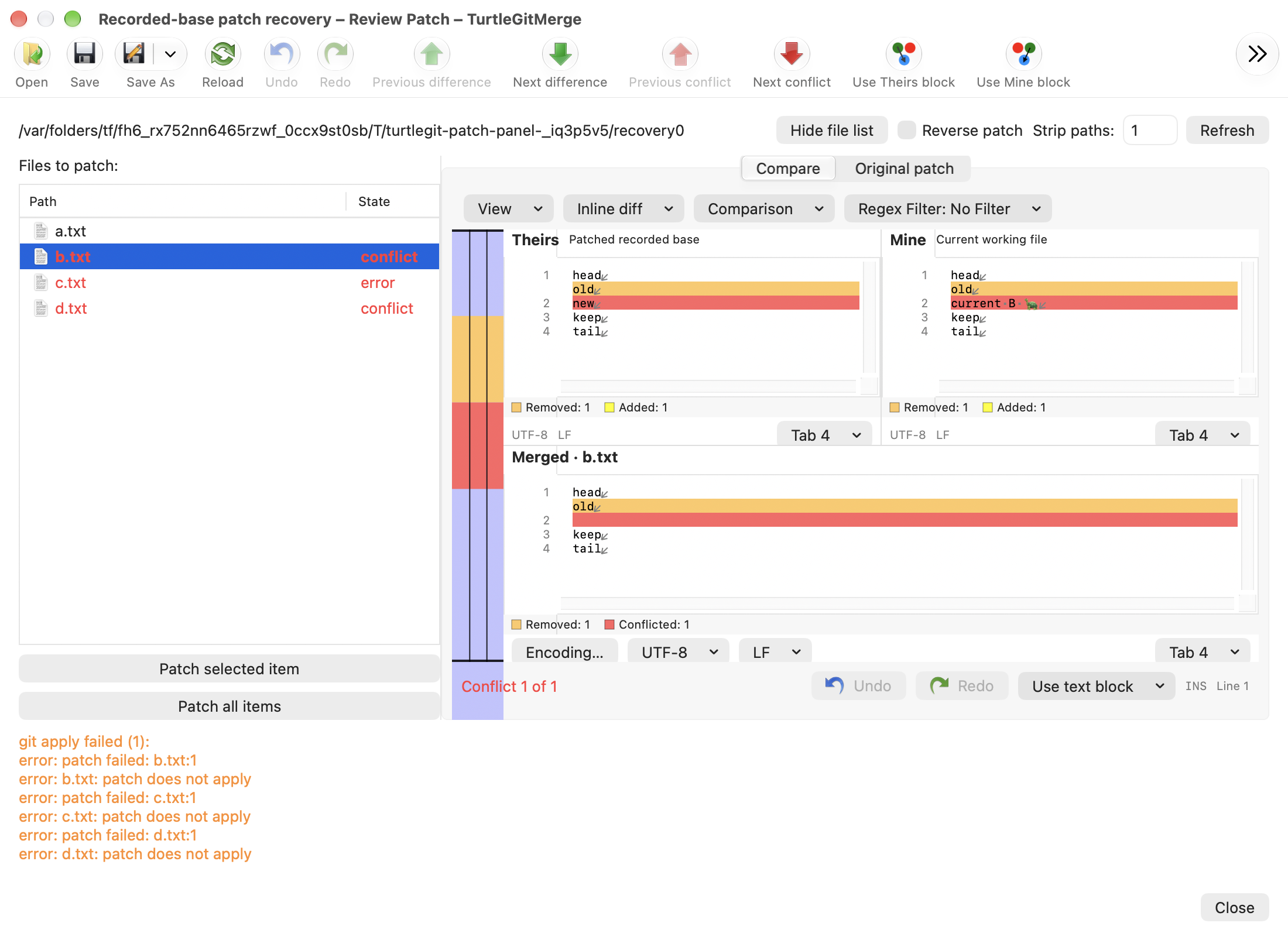

Actual light and dark captures show the embedded editor and initial states. They precede the fixture-only reselection correction and use the same built app as the passing native run. They certify that displayed state, not every physical input/menu transition or every completed-save view.

Captured text codecs — October 17

The connected patch-codec family now applies one captured policy through row inspection, file previews, recorded-base merge and per-file recovery. Legacy text reaches the embedded editor, and unrepresentable automatic output retains a manual Preview/encoding-change continuation. Existing binary/special choices and raw application bytes remain. Physical/signed and wider raw-patch text decoding acceptance are still open.
