TurtleGit for Mac

View Markdown source ↗

Comparison marks: app and Finder

This is an in-progress source port, not a claim of complete DiffLater parity. The native historical Log mark/compare route is recorded separately in Log parity. Finder's shared working-file command route is implemented; signed Finder activation and end-to-end menu acceptance remain pending.

Upstream behavior

Audited pinned TortoiseGit 7338078f8ddd924b8cddee35f512f2286072136d:

Windows registry state must become app-private bookmark storage plus a shared menu record on macOS. A Finder URL is a selection request, not a permission.

Implemented storage and access foundation

WorkingComparisonMarkStore in RepositoryAccess.swift persists one file mark and its authorization bookmark in the containing app's private support folder. The bookmark may grant that file or a containing folder. Relative paths allow folder bookmarks to renew after a move. Every operation reloads the private record; consumption compares the mark's unique ID, so an old comparison cannot consume a replacement mark, even at the same path. Missing files and unavailable permissions fail without clearing the saved mark. The acquired access object retains its scope lease until the comparison releases it. Corrupt records fail visibly. File/directory permissions are 0600/0700.

WorkingComparisonMarkSnapshot in FinderCache.swift publishes only an ID and absolute path, never a bookmark, into the entitled app-group container. Its reader validates the path. An unsigned process without that entitlement gets no implicit shared-container access. Tests use explicit disposable paths. Neither the private store nor shared snapshot launches Git or changes file bytes. The preview app's private storage remains isolated by its bundle identifier.

Thirteen repository/mark access tests pass. The four new mark tests cover relaunch, literal Unicode/newline paths and binary bytes, metadata-only sharing, permissions, scope lifetime, moved file and folder bookmarks, access failures, deleted files, replacement/consumption, directory and escaping-link rejection, and corrupt storage. These use an injected bookmark provider; they do not establish signed macOS permission behavior. Debug and unsigned App Store builds pass. Bundle audits verify the embedded Finder extension, 64 original icon resources, and 11 universal Git runtime Mach-O files with local Git operations. Signed runtime acceptance remains pending. No QA app was launched for this storage-only change.

Working-file command route (2026-10-05)

Finder now offers a single-file mark/compare action with original comparison artwork. Its label reads the shared metadata record; Control invokes clearing. The app exposes the dynamic action and explicit Clear comparison mark command in its TurtleGit menu, and the working file table offers the same action for a single selection. With no selection, the app uses a native file chooser. The request handler routes these commands before repository discovery, so both files can belong to different repositories or lie outside repositories.

The app reuses saved repository access or requests the current file/containing folder in the App Store configuration. It reacquires the marked bookmark and retains both leases in the comparison window. WorkingFileComparison reads exact regular-file bytes or literal symlink target text and rejects directories. The existing viewer supplies Reload, explicit editing, Save/Save As and diff tools. Both standalone and repository saves now share the existing byte/mode validation, encoding preservation and temporary-file replacement helper. Git metadata is not touched by standalone comparison or Save. Only the consumed mark ID clears; failed authorization or reads leave the mark available.

Twenty-nine focused comparison, mark-access and Finder-request tests pass, including two new standalone tests for literal paths in separate locations, UTF-16/BOM and executable permissions, saving either side, unchanged Git index and HEAD, binary/symlink reading, stale bytes/modes, foreign documents and invalid locations. New mark/clear URL round-trip coverage confirms that these actions do not produce Git command arguments. Debug and unsigned App Store builds and both icon/runtime audits pass. The preceding storage commit's macOS and Pages runs passed; this change's CI requires a separate check after push.

Native acceptance and limits

An ad-hoc Debug preview received a single-file mark request after opening a known disposable repository. The main window reported the marked path and the native TurtleGit menu showed Compare with that path plus Clear comparison mark. Menu activation attempts returned stale accessibility IDs; no successful direct menu chooser handoff is claimed. The app quit normally with the mark persisted. After verifying process absence, the same preview was configured with an outside file request and deliberately relaunched. The native viewer compared the marked 14-byte later working with the outside file's 17-byte external partner. Enable editing made the marked pane editable; toggling it off restored the read-only view. No Save or file mutation occurred. The private mark was consumed, the app quit normally, and exact HEAD/index/working/outside bytes and deleted-file absence were verified. Only one QA process was alive at a time.

Recorded evidence and the actual native screenshot cover the request route, persisted access, viewer contents and editing toggle. This is not an activated Finder extension or signed sandbox acceptance test.

Remaining parity and acceptance

Full DiffLater, Log and Finder parity remain incomplete.

External working marks in Log (2026-10-05)

Log now imports the saved working-file mark when opening and when the containing app publishes a new mark. A retained bookmark lease belongs to the Log dialog; the absolute path is not interpreted as a historical Git path. A new mark ID replaces the imported mark. An unchanged ID does not overwrite a later local historical mark. Windows tracks changes to the saved path; the macOS token also distinguishes a newly marked instance of the same path.

Compare with resolves the selected commit once and reads the historical blob without checkout. The external side reads live working bytes. Reload keeps the historical revision pinned while rereading the external side. Explicit editing and Save apply only to the external regular text file, using the same encoding, permission and external-change validation as the other working-file viewer. The App Store route checks both the repository grant and marked-file lease. A successful handoff consumes the shared mark's ID; the Log dialog retains its mark and lease for later comparisons, matching the upstream local retention.

Twenty-four focused comparison/editing/mark-access tests pass. The new real-Git regression advances HEAD after preparing the mixed comparison, verifies exact old committed bytes and live external BOM/CRLF text, saves only the external file with its executable permissions retained, checks raw Git index/HEAD/working preservation, reloads, and rejects stale external bytes and a missing file. Debug and unsigned App Store builds and both resource/runtime audits pass. The queued local commits have not been pushed because GitHub's saved credential is unavailable; no CI pass is claimed for these commits.

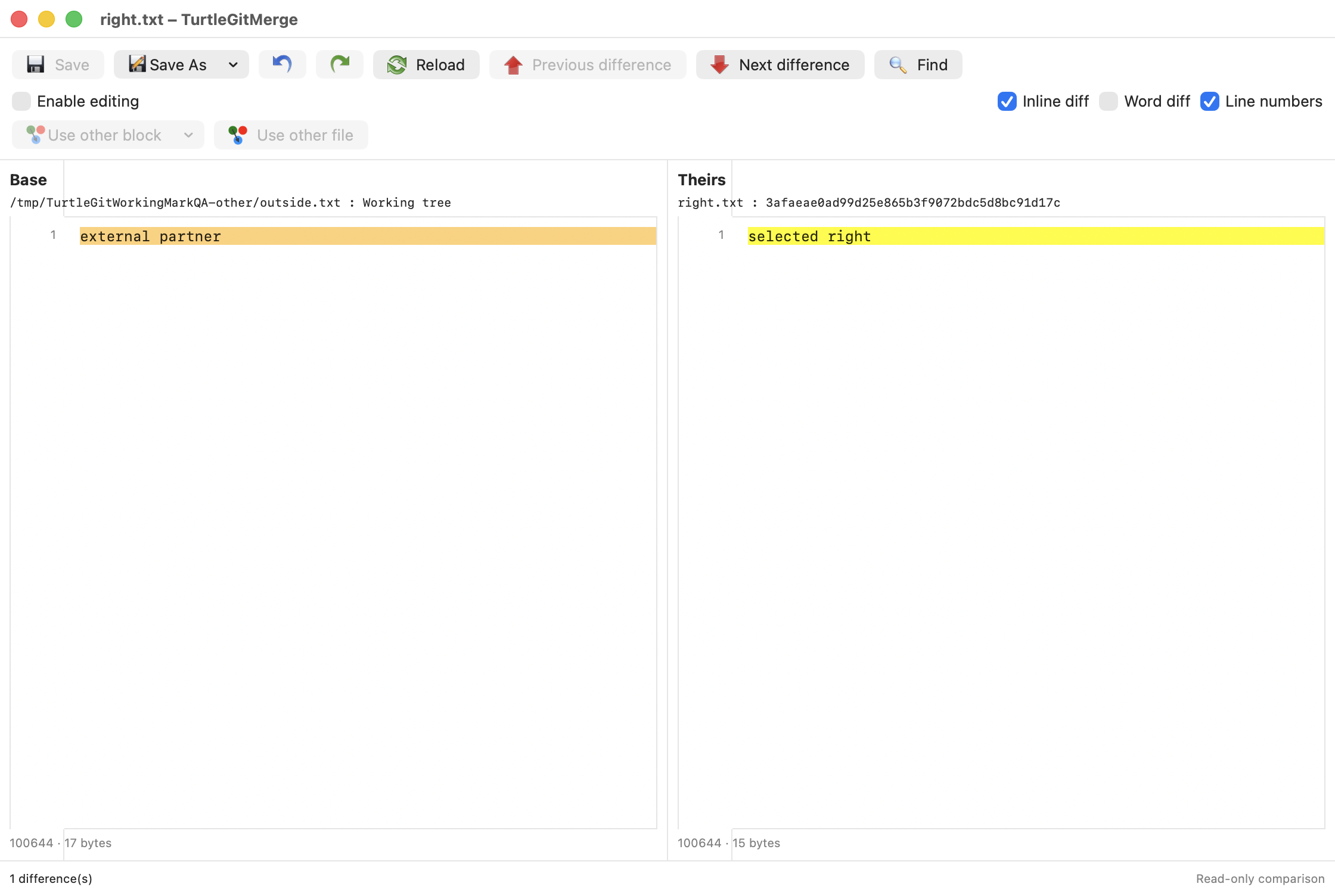

Native QA opened Log with an outside file marked. The historical right.txt context menu displayed Compare with the external absolute path, then opened a viewer containing 17-byte external partner and 15-byte committed selected right at 3afaeae0ad99d25e865b3f9072bdc5d8bc91d17c. The later disk contents are 14-byte later working and were not used as the historical side. Enable editing made only the external Base pane editable; turning it off restored read-only mode. The shared private mark record became empty. Closing the viewer and using the same Log action again opened the correct pair through the retained lease. No Save was performed. Normal Quit left no QA app process; exact HEAD/index, working/external bytes and deleted-file absence were verified.

Native record and actual screenshot document the route. Signed Finder/app sandbox handoff, native Save/Reload, alternate tools, compacted labels, new-mark/local-mark precedence variants and additional native file types remain pending. Full Log/Finder parity is still incomplete.

Native Save/Reload and correct file prompts (2026-10-05)

Native QA compared an external UTF-16 LE/BOM/CRLF executable file with pinned historical right.txt. Editing through the text view and Save produced the exact 30-byte UTF-16 output, preserving BOM, CRLF and 0755. Only the external file changed. A later independent edit made the working file differ from the loaded document: Save refused it with the changed-file error and preserved those bytes. Reload Cancel retained the draft; Reload Without Saving read the current 40-byte external file and kept the historical 15-byte contents at the pinned hash. Exact HEAD/raw index/repository working bytes and deleted-file absence remained unchanged, and no temporary sibling remained.

The native run exposed a mislabeled Reload prompt: it named the historical comparison path instead of the edited external path. Reload, window Close and application Quit now use the document's actual editable path. A second sequential preview verified all three corrected prompts, cancellation retaining the draft, and Quit without Save leaving disk bytes untouched. The first clean QA process needed a second normal Quit; both launches were individually checked terminal, with no remaining app process. Recorded evidence details this coverage. No new screenshot is claimed.

Save As now starts and balances destination scope through its write. For an App Store working-file Save, the app checks access to the parent needed by the existing temporary-sibling replacement. If only a file grant is retained, it asks for that containing folder when Save is explicitly requested; cancellation keeps the draft. The granted scope remains held through the write and window lifetime. This follows the app's replacement strategy and macOS user-selected access model; Apple's sandbox documentation and read/write entitlement reference provide the platform access context. The folder-authorization branch and Save As scope still require signed native acceptance. Debug and unsigned App Store builds and both bundle/runtime audits pass; the new scope and prompt code does not change the previously tested core save algorithm.

Independent working-pane drafts and Save

The upstream audit of TortoiseProc/GitDiff.cpp:361–482 and TortoiseProc/AppUtils.cpp:466–521 identifies the saved comparison file as Base and the current file as Mine. TortoiseMerge/MainFrm.cpp:918–939 permits changing the left pane's writability and makes the right pane the default target; OnEditEnable at 2482–2507 changes the active view.

TurtleGit now labels the right pane Mine and enables editing there by default when it is a regular working text file. Clicking a pane selects its independent editing state, draft, annotations and Undo/Redo history. Base starts read-only and can be enabled explicitly. Both drafts participate in alignment; switching panes preserves them. Save writes only the active dirty pane. Close, Reload and Quit list all dirty file paths and their Save choice saves every dirty pane. If a later save fails, earlier successful saves remain saved and the unsaved pane remains dirty; the pair is not an atomic multi-file transaction.

Native acceptance used two disposable files outside the repository: UTF-8 Base and UTF-16LE/BOM/CRLF Mine with executable permissions. Both drafts survived pane switches, each toolbar Undo/Redo changed only that pane, saving Base left Mine's original disk bytes untouched, and Close/Cancel retained both drafts. Close/Save wrote both exact drafts with their original encodings and modes. Command-Z and Shift-Command-Z were verified in a later sequential preview; on this machine's keyboard layout the automation's physical Y key sends Z. A final Quit/Save wrote the remaining UTF-16 draft and exited. No QA processes remained. HEAD, raw index and working bytes in the bootstrap repository matched the recorded baseline.

Two new core regressions cover independent drafts and exports, one-side saves, immutable historical/binary panes, and annotation realignment without false changes. All 22 comparison tests, Debug/App Store compilation and both bundle checks passed. See native evidence.

Historical-copy editing and Save As, signed security-scope acceptance, and full TortoiseMerge menu/layout parity remain incomplete. Edit-menu activation was not verified: its accessibility snapshot reported disabled actions despite successful editor keyboard and toolbar history operations. The source routes Undo/Redo selectors to the active history, but that alone does not prove native menu acceptance. Full TortoiseGit dialog parity remains the goal.

Two-pane context-menu destinations

LeftView.cpp::AddContextItems and RightView.cpp::AddContextItems, together with BaseView.cpp:2524–2565, distinguish two command sets. The primary Use-this/Use-other/both-block commands always write to Mine. If Base is writable, both menus additionally offer prepend, replace and append into Base, plus the reverse whole-file command. These destinations do not follow whichever pane was last active. English labels for the added commands are taken from Resources/TortoiseMergeENG.rc:894–899.

TurtleGit now dispatches context commands to those explicit destinations and checks each destination's own editing state. Right-pane mark/leave-marked commands also target Mine; toolbar commands continue to operate on the active pane. Native acceptance verified Base's whole-file command writing only Mine, its Undo, and Base's prepend-right-block command plus independent keyboard Undo. Core coverage uses both pending drafts and verifies incoming line endings match the chosen destination. Both blocks/order variants, reverse whole-file native acceptance, historical-copy editing and complete upstream state transitions remain pending. See acceptance record.

Earlier cross-pane acceptance exposed a mismatch: commands selected the destination model while accessibility focus remained on the source. The original record preserves that observation; the side-specific update below addresses model activation and documents the remaining keyboard-only reverse-menu case.

Side-specific editor updates

The editor coordinator now reads, writes and records Undo for its own side. Context commands dispatch directly to that side's editor instead of temporarily activating it. Inactive-side edits do not set the active caret or move its selection. Native acceptance now shows Base staying read-only and focused when its whole-file command writes Mine. Enabling Base and typing edits Base without changing the Mine draft, and independent Undo restores each side. A reverse prepend from Mine similarly leaves Mine active while updating Base.

The initial side-specific acceptance still required a click before keyboard editing after the reverse menu action. That observation is preserved in the side-specific acceptance record. The menu-close update below verifies the previously failing keyboard-only case; complete keyboard/context-menu parity remains unproven.

Return keyboard focus after native menu tracking

The comparison text view is now its context menu's delegate. On menu close it restores the originating active text view as the first responder and accessibility focus, provided no operation, Quit confirmation or sheet is active. This finishes the native menu-tracking handoff without selecting the transfer's other destination.

Native acceptance repeated the previously failing reverse prepend case: select Mine, choose “Prepend this block to left,” then immediately use Command-A and paste without a text-view click. Mine received the new draft; Base retained its prepend. Independent keyboard Undo restored Mine, then Base. Exact original comparison bytes/modes and repository HEAD/index/working bytes remained intact. Debug and unsigned App Store builds and both bundle/runtime audits passed. The preview quit normally and no TurtleGit process remained. See the menu-close acceptance record. Other menu/cancellation/key variants, complete upstream state behavior and signed sandbox acceptance remain pending.

Comparison whitespace and line-ending menus

BaseView.cpp:2468–2505 adds leading tab/space conversions, trailing whitespace removal and the EOL submenu to writable panes. The implementations at 6041–6070 and 6420–6552 operate on real source lines and preserve missing final endings. TurtleGit's working comparison panes now expose the three commands and all nine ending styles. They transform the selected pane's full draft, excluding aligned display gaps; no-op whitespace commands are disabled. Ending checkmarks derive from current draft styles. The read-only pane omits these controls.

Native acceptance verified both indentation conversions with keyboard Undo, trimming and its disabled no-op state, LF conversion/Save and ending Undo/Save. The external Mine file retained UTF-16LE/BOM, 0755 permissions and missing final newline: exact LF output was 40 bytes; ending Undo restored a 44-byte CRLF output while keeping trimming. Base and bootstrap repository HEAD/index/working bytes were unchanged. Ten existing whitespace/ending regressions, Debug and unsigned App Store builds and both bundle/runtime audits passed. Every preview quit and process absence was checked. See formatting acceptance.

Other ending styles/checkmarks, mixed endings and marked-block variants still need native acceptance. These commands do not establish per-pane tab-width or inserted-line default-ending metadata parity. File Encoding and historical-copy editing, locale-sensitive Unicode trimming and signed sandbox acceptance remain pending.

Working comparison File Encoding menu

Upstream FileTextLines.cpp:489–537,610–637 defines the Unicode output formats and BOM rules; BaseView.cpp:6078–6087 marks encoding changes modified. Writable comparison panes now expose UTF-8 and UTF-16LE/BE with optional BOMs, and UTF-32LE/BE with BOMs. Encoding belongs to each draft independently. An encoding-only change enables Save; Save and Save As encode that pane's current text, and Save resets its baseline. Unrepresentable characters are rejected before changing the format. The explicit Windows-1252 choice is a macOS adaptation of upstream ASCII, which uses the Windows system ANSI code page.

Native acceptance verified rejection without draft changes, exact 64-byte UTF-32BE Save and Reload, and exact 23-byte UTF-8 BOM Save As and Save. Chinese text and an emoji, CRLF, missing final newline and 0755 permissions survived. Base and bootstrap repository HEAD/raw index/working bytes remained unchanged. Both sequential previews quit normally and no app remained running. See the encoding record. Literal-byte tests cover all nine formats, Unicode round trips, malformed data, encoding-only dirty state, independent export/save and stale-write refusal. All 353 tests, both builds and bundle/runtime audits passed.

Remaining formats and menu checkmarks need native checks. Legacy input selection, Windows system code pages, BOM-less non-Latin Unicode detection, empty-file format inference, three-pane conflict controls, historical-copy editing and signed sandbox acceptance remain incomplete. This does not establish full upstream encoding/loading/writing parity.

Pane format status controls

Upstream BaseView.cpp:269–430 places encoding, EOL and tab mode in each pane's status ribbon. TurtleGit now shows original source encodings and current draft ending styles in both comparison and conflict panes. Writable panes provide encoding and EOL menus with checkmarks; read-only panes report their formats. The comparison byte count is explicitly labeled saved bytes, because a draft's output format can change before Save. Conflict documents retain Base/Mine/Theirs encoding metadata across result saves. Ending changes use existing Undo paths.

Native acceptance verified distinct UTF-32BE, UTF-8 BOM and UTF-16LE BOM source indicators, CRLF/LF conversion with Undo, result encoding changes/checkmarks, and two-pane footer behavior. Loaded mixed-ending and single-line files show Mixed EOL and No line ending. Source files and repository bytes remained unchanged by the UI. The twelve conflict tests and both builds/bundle audits passed. The actual light-window screenshot is published; all QA processes were closed. See record.

Dark/narrow layout, remaining native formats, absent/binary sources, upstream read-only-source format interaction, insertion defaults and signed sandbox acceptance still need work. Mixed-ending paste normalization is existing editor behavior; this change does not establish paste or full status/view parity.

Independent tab settings and source-mapped indentation

BaseView.cpp:254–267,3873–3877,6332–6401 provides the tab-mode label and selected-line Tab/Shift-Tab behavior. Comparison Base and Mine now retain independent tab width, Tab/Space and smart-mode overrides initialized from saved merge preferences. The same native menu component is used in three-pane footers. Rendering, insertion and whole-file indentation conversions use the selected pane's width. Formatting preferences reset pane overrides when changed; line-number-only changes retain them. View settings do not dirty the file.

Tab commands map display selections to the real source before editing, excluding alignment gaps and preserving source endings. Multi-line Tab and Shift-Tab retain the edited source selection, share the existing pane Undo history, and keep absent EOF newlines intact. Keyboard indentation uses the existing manual-edit annotation path; its Leave-only-marked interaction still needs native acceptance. Single-line Tab uses the existing UTF-16 tab stop/smart algorithm. A collapsed Shift-Tab currently makes no change, matching the existing partial three-pane selected-block implementation.

Native acceptance kept Base at Tab 4 while selecting Mine Space 8. Tab after Chinese/emoji text inserted five spaces; Save produced exact 30-byte UTF-16LE BOM output with CRLF, missing final newline and 0755. Selected-line indentation and removal skipped the display gap; keyboard Undo/Redo returned to saved text. Smart mode chose a literal tab from surrounding content and Undo restored the file. Base and repository HEAD/raw index/working bytes stayed unchanged. All QA apps quit normally and process absence was checked. The 36 focused comparison, whitespace, preferences and conflict tests, both builds and audits passed. See acceptance.

Base editing, native preference Apply/reset variants, full Undo selection state, blank/end-boundary variants, arbitrary widths, EditorConfig, dark/narrow layouts, refactored three-pane menu acceptance, insertion ending metadata and signed sandbox acceptance remain pending. This is partial tab/view behavior parity.

Marked-block File Save decisions

The writable Mine pane now offers the source FileSave warning when marked blocks remain. Save and Include keeps marked rows and manual edits, taking other rows from Base. Save and Exclude restores marked rows from Base while retaining unmarked rows and manual edits. Save Only Manual Edits keeps edited rows and takes the rest from Base. Cancel retains text and marks without writing. The transformation uses the pane's dominant line-ending style and preserves absent EOF newlines, alignment gaps and manual edits even when also marked. It clears marks through the existing native Undo history; Undo/Redo can restore the decision. Save locks other edits/reload/save calls while the sheet is pending. Existing stale-file and sandbox authorization checks still run before writing; a failed save retains the transformed draft and its Undo history.

Mapped source: MainFrm.cpp FileSave (1656–1684) and BaseView.cpp LeaveOnlyMarkedBlocks/UseViewFileOfMarked/UseViewFileExceptEdited (6243–6260), pinned at 7338078f8ddd924b8cddee35f512f2286072136d. The warning applies to Mine File Save. Source writable Base saves and automatic PatchSave bypass it; Review Patch's automatic patched-result Save retains that distinction. Exact source toolbar/close routing for every patch-edit state remains pending.

The headless native receiver checks all three decisions and Cancel using actual aligned editor coordinators, exact CRLF/no-final-newline writes, Base preservation, Undo/Redo, stale external writes and reentry guards. Choices are injected; physical sheets, accessibility/layout, full three-pane merge decisions and signed sandbox acceptance remain unverified. See marked-save QA.

Nine-style line-ending editing

Two-pane alignment now uses the shared source-mapped boundary parser for CRLF, LF, CR, LFCR, VT, FF, NEL, LS and PS. Original cell text retains each ending; display cells strip that ending and render a display-only LF. Typing and incoming block/marked-policy rows use the target's dominant ending. Mixed-style ties use EOL.h order (CRLF, LF, CR, LFCR, VT, FF, NEL, LS, PS), matching FileTextLines.cpp countEOLs selection. Files without any endings retain the macOS LF default. Manual/retained rows keep their original endings, and missing final endings remain absent. Combining blocks now recognizes all nine existing endings, preventing an extra separator after an exotic ending.

Editor endings QA records focused Core and headless native checks. The native receiver exercises every style through actual aligned display, insertText, private Undo/Redo, ordinary Save and block transfer, checking exact output bytes and unchanged Base. Physical format-menu interaction, explicit pane-style persistence after deleting/changing the dominant ending, and exhaustive mixed-ending/selection combinations remain pending. Three-pane read-only source alignment now shares the boundary parser; see its parity record.

Comparison clipboard context icons

Two-pane and prepared patch-result context menus now use the original Paste ribbon artwork alongside the existing Copy/block/Undo/Redo images. Copy/Paste menu selectors forward through app-owned actions, avoiding AppKit's automatic standard-action images when the application icon setting is disabled. Cut keeps the native scissors symbol. Clipboard entries retain their original aligned selection/editing paths; read-only Cut/Paste stay disabled. Paste availability is checked as a plain-string type before enabling the entry.

Cut/Paste metadata and context handlers check the pane's editing state and busy/Quit guards before invoking clipboard/editing operations. This prevents a stale context Cut from copying text after editing has been locked. The native menu builder accepts private preferences/pasteboards for receiver checks; normal application use still supplies standard preferences and the general clipboard.

Comparison menu QA uses the actual prepared aligned editor and four Git versions. It checks clipboard targets and images, complete icon-off menus, private Paste availability, read-only Before and busy/Quit metadata. The full receiver's existing editing/save/Undo/Redo and Import Patch regressions also pass. No Core code changed in this checkpoint. Physical context tracking, keyboard and actual clipboard action dispatch, read-only omission/source grouping, exhaustive format menu variants and signed sandbox acceptance remain pending.

Go to Line in comparison editors

The pinned CBaseView::OnEditGotoline and CGotoLineDlg use one-based original source numbers, with a range ending at the last numbered source row. Removed Base rows and alignment gaps do not become destinations. No chooser opens when there are fewer than two numbered lines. The native two-pane comparison and three-pane conflict editors now provide Go to Line… in their context menus, with an AppKit sheet displaying that range, a focused number field, Go and Cancel. Go is disabled until the field contains a valid decimal number.

Control-G opens the chooser; Command-G continues Find Next on macOS. The number glyph follows the application context-menu icon preference. Aligned Mine/Theirs and comparison panes navigate by their source numbers; raw Base and merged result panes use the shared parser for all nine line-ending styles. The native destination is selected and scrolled into view without changing text, Undo, encoding, or repository bytes. Busy/Quit states refuse navigation, repeated requests are ignored while pending, and a response is discarded if its pane text or owner window changed. Actual attached sheets participate in existing Close/Quit protection.

Go to Line QA records Core range tests and hidden native receiver checks with injected choices. These checks exercise real menu target dispatch, source/result selection, Cancel, invalid responses, validation controls and operation guards. They do not prove physical sheet tracking, focus, keyboard routing or signed accessibility acceptance. The native text selection adapts the upstream view-line highlight; full locator/folding and source view behavior remain incomplete.

The October 17 search-form continuation replaces the generic Go to Line alert with a native range/input/OK/Cancel sheet, inline validation and one-response cancellation. Original-coordinate navigation and stale-intent fences remain. Actual validation and the intermittent initial-selection limitation are recorded in batch evidence.
