Synchronization incoming and outgoing commit lists

This partial family review follows pinned TortoiseGit 7338078f8ddd924b8cddee35f512f2286072136d, IDD_SYNC, SyncDlg.cpp, GitLogListBase.cpp, GitLogListAction.cpp and ColumnManager.{cpp,h}. It covers the In Commits and Out Commits tables, their native menus and connected revision actions. The grouped checkpoint below covers this family; this document does not certify the full dialog.

Source behavior

SyncDlg creates separate SyncIn and SyncOut log lists, both using InsertGitColumn. Graph, Actions, Message, Author and Date are initially shown; SHA-1, Email and committer columns are initially hidden. Bug-ID availability follows project properties. SVN revision availability and default visibility follow CTGitPath::HasGitSVNDir, which checks the resolved administrative svn/.metadata marker. Revision extraction follows the pinned FindSVNRev patterns through the existing native IssueRegex runtime. Those patterns use whole-message anchors: an ordinary subject followed by a git-svn-id trailer returns no revision in this pinned implementation. The native list retains that behavior; column availability does not imply every SVN trailer yields a number.

Header visibility items exclude the first Graph column (ColumnManager.h, AddMenuItem). Reset column order asks Yes/No before restoring natural order, default visibility and widths. Unlike the reference/tag result tables, commit list reset measures row text as well as headers (ColumnManager::GetWidth); long messages must not be reduced to a header-only width. Incoming and outgoing layouts belong to their separate source identities and captured preference stores.

The configured Log font is consumed only when LogFontForLogCtrl is enabled. The source also installs a small-icon minimum row height. Native rows must fit the configured regular/bold/italic font and graph/action icons without clipping.

Return and double-click use the first parent when DiffByDoubleClickInLog is enabled. A root commit presents “No previous version.” (GitLogListAction, ID_COMPAREWITHPREVIOUS), rather than silently doing nothing. Shift retains the alternate comparison-tool choice. These behaviors share the existing comparison and revision-operation consumers rather than adding different Git operations.

Native ownership requirements

A native menu must retain its table, selected revision occurrence(s), source tab and result generation until one action claims it. Replacing results, changing selection/tab, reading, Quit, an attached sheet or closure must prevent retained row/header callbacks from acting on another result or preference identity. Parent-caption and ancestry reads must cancel and drain with their owner. Column reset and root feedback must retain their native sheet ownership through actual detachment, including closure and late replies. Physical menu tracking, VoiceOver, all locale/layout combinations, signed grants and complete source acceptance remain separate gates.

Connected implementation and checkpoint — October 21, 2026

SynchronizationCommitList retains its source side and selected row occurrences through one-use menus, including lazy parent-caption updates. Dismantling the native view retires row/header menus and keyboard callbacks. Log metadata and comparison/clipboard workers remain owned until their actual completion after cancellation. Root and reset sheets retain the parent Quit fence through actual detachment. History comparisons pass both captured Shift choice and originating preferences to the configured comparison window. The shared Return dispatcher supplies its event's Shift state without changing Find/default-key routing.

Explicit width/order layouts belong to the captured preference store and side. When no explicit layout exists, the standard application store alone imports its previous AppKit autosave layout once, then disables legacy autosave. Existing visibility preferences remain consumers. Actual installed legacy migration has static peer review, while the native receiver uses private preference stores.

The Debug app and four native case/engine combinations pass with system and bundled Git. The first receiver found an incorrect fixture expectation for SVN trailers; matching the pinned helper fixed the fixture without changing the app or repeating its build. No native cases had passed before that correction. Core was unchanged. All three owned receivers are independently absent. Evidence records the checks and limits.

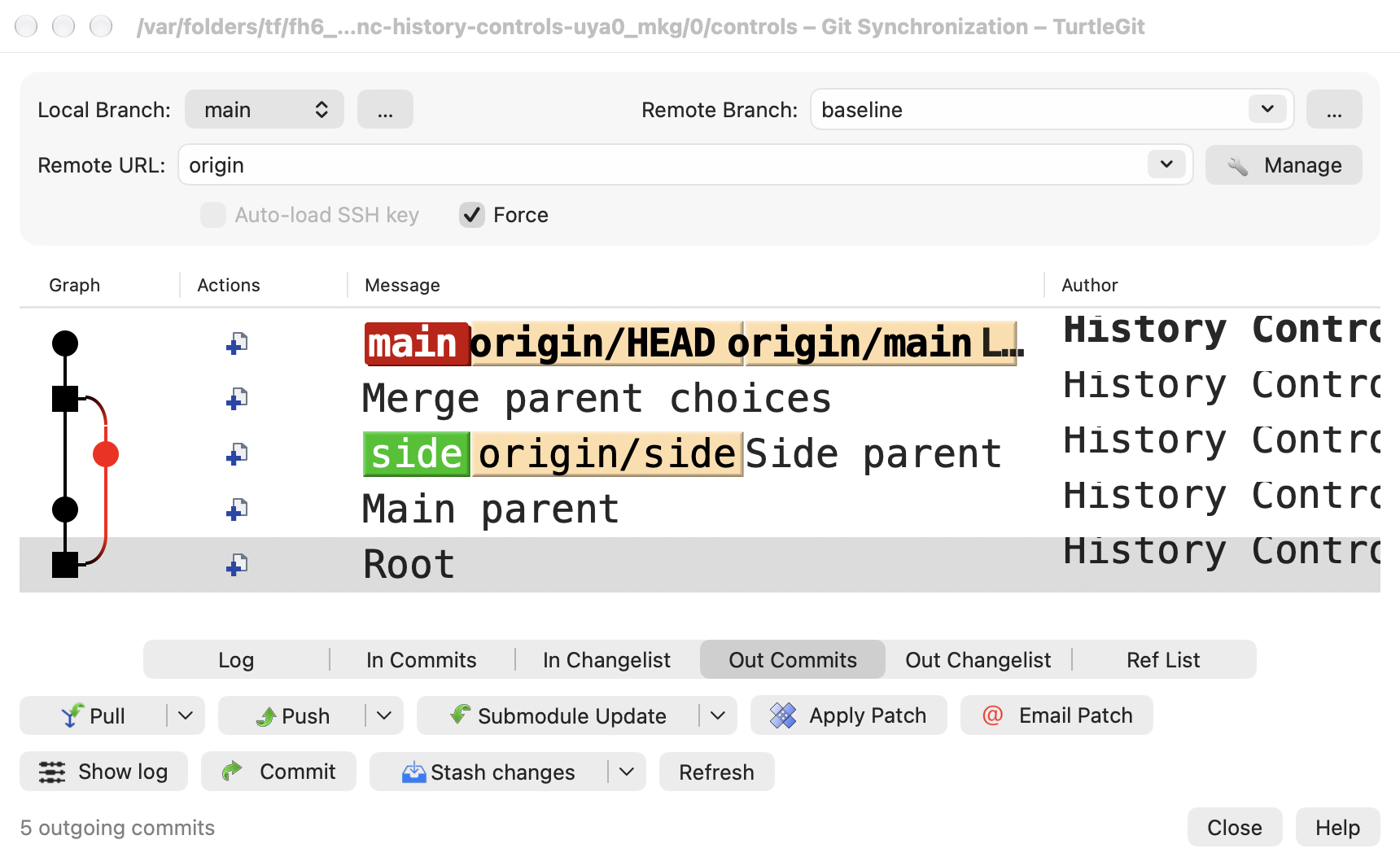

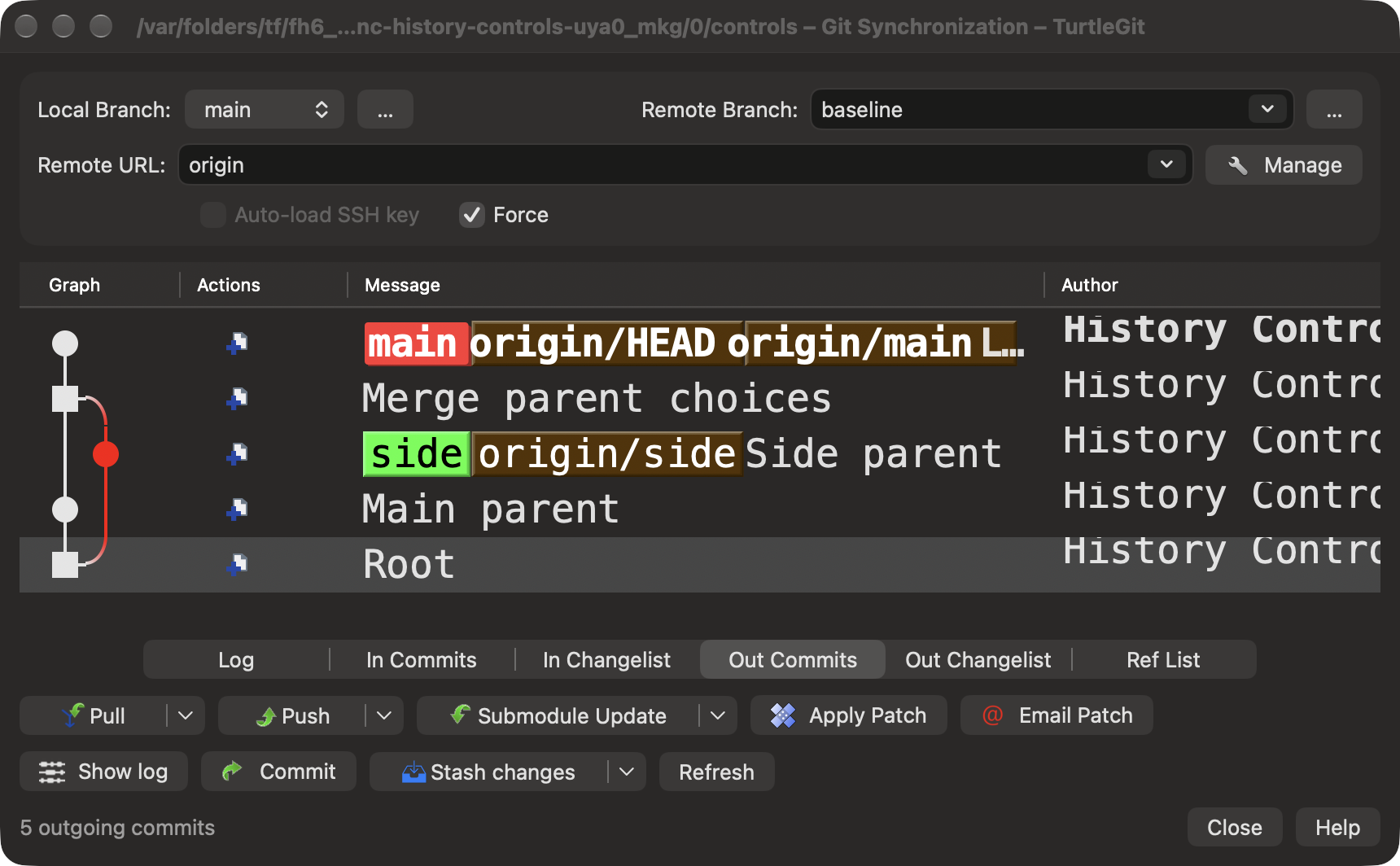

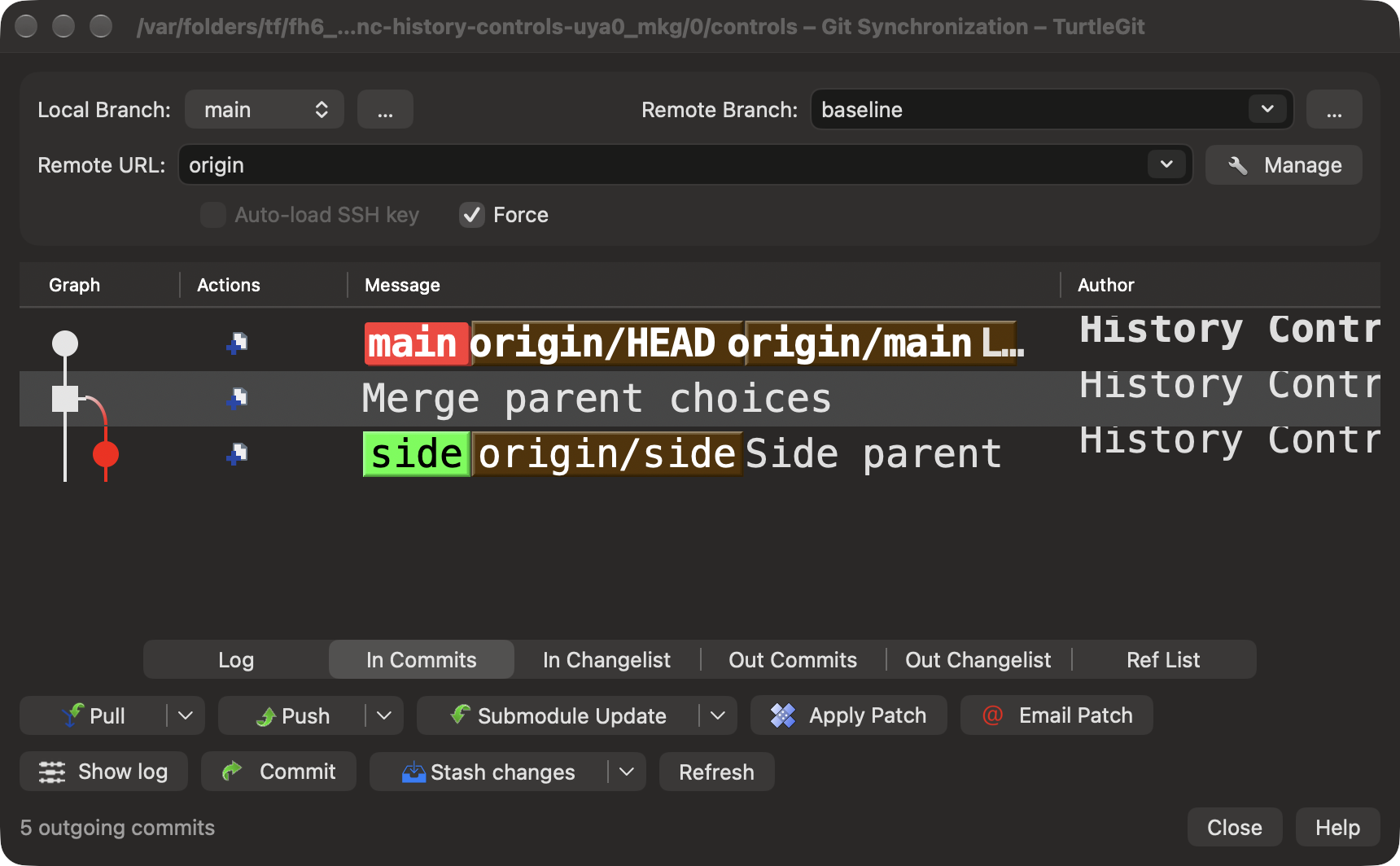

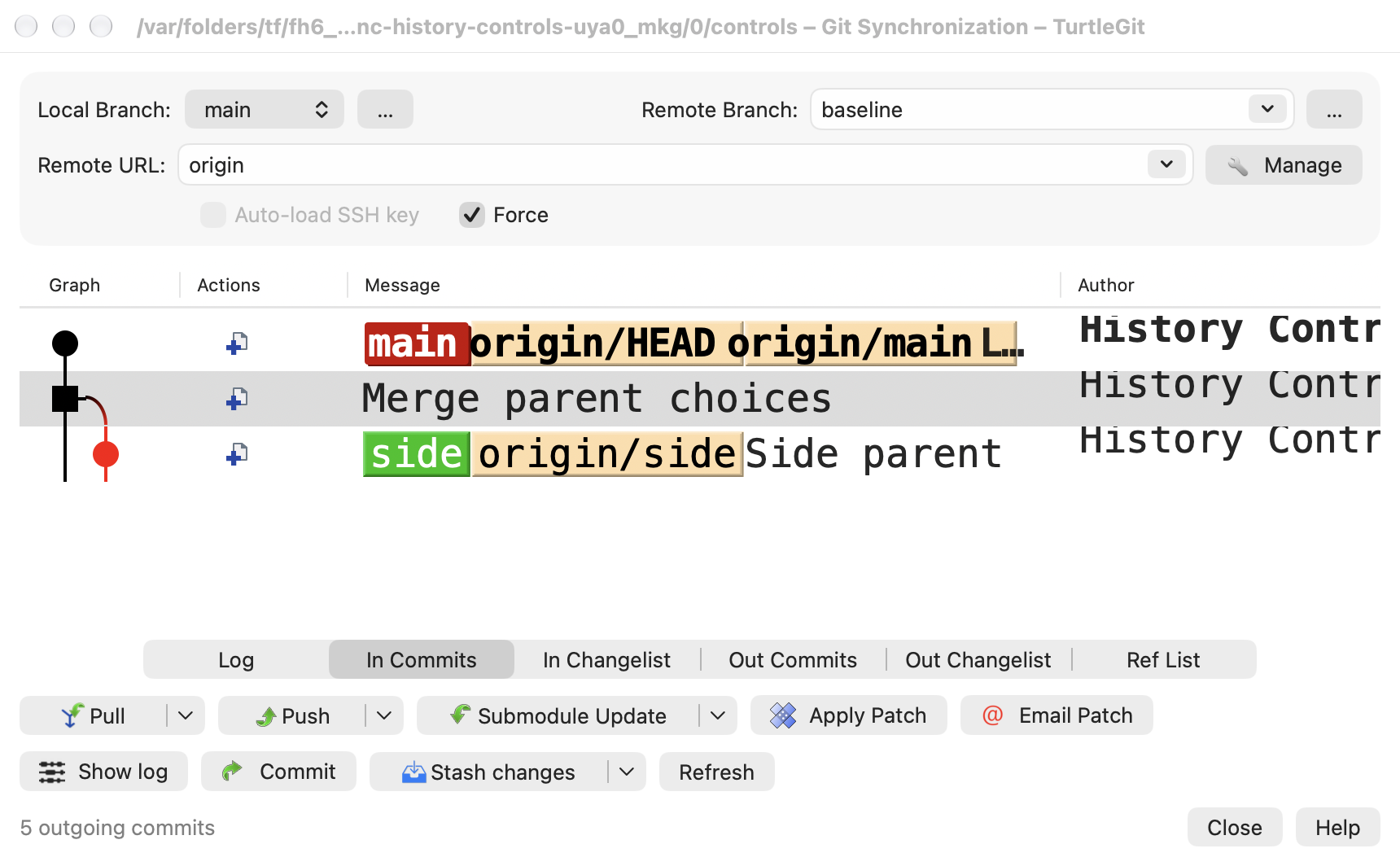

Reviewed outgoing light and dark, and incoming light and dark captures use the configured Menlo 24-point Log font to exercise larger rows. Offscreen columns remain reachable by horizontal scrolling. They do not certify default-size Windows pixel parity or physical input/VoiceOver/signed acceptance.
