Clone and Fetch reference/checkout notifications

Pinned TortoiseGit: 7338078f8ddd924b8cddee35f512f2286072136d. This family covers the optional libgit2 Clone/Fetch result list, its captured reference history and checkout-file actions. It does not certify every Clone, Fetch, Synchronization or Git Progress dialog. Related pinned resources are IDD_CLONE, IDD_PULLFETCH and the shared IDD_SVNPROGRESS; this is a partial workflow-family audit, not clearance of every static control in those dialogs.

Source contract

Git.cpp::UsingLibGit2 requires both UseLibgit2 and the operation's bit in UseLibgit2_mask. Clone is command index 1 (bit 2), Fetch index 2 (bit 4). The pinned default mask excludes both. Ordinary CLI output must therefore remain the default; a transcript that resembles a notification is not a typed result.

ProgressCommands/RemoteProgressCommand.cpp::RemoteUpdatetipsCallback produces an Update ref row for each callback, retaining the full old/new object IDs while displaying shortened hashes. Equal nonzero IDs mean Same; a zero old ID means New, a zero new ID Deleted. For two changed nonzero IDs, the graph query runs with new before old: ahead-only means Forward N, behind-only Rewind N. Divergent history uses the commits' committer timestamps for Newer time, Older time or Same time. Failed graph classification leaves the change text empty. This is not a generic forced-update label. Fetch explicitly requests reporting unchanged tips, so a successful no-change fetch can still have Same rows.

The reference row has Show Log, using the captured full old ID as start revision and full new ID as end revision, omitting either zero endpoint. Moving the named reference after completion must not change that range. Its base notification class has no double-click action, and it has no Open/Explore file actions.

CloneProgressCommand.h::CheckoutCallback creates a Checkout file row for each path callback, independently of the percentage animation. Bare/no-checkout clones do not invent checkout-file results. The shared WC notification supplies Show Log, Open, Open With and Explore; directories omit the Open variants and double-click reveals them. Recursive checkout results must retain the producing repository and its literal relative path so identically named child files do not dispatch against the superproject.

GitProgressList.cpp allows completed-result menus only after work stops. File or reference actions require one selected actionable row; multiple selection offers Copy. Context Copy joins the displayed Path values with CRLF and trims the trailing whitespace. Keyboard Copy includes Action and Path. Sorting works within contiguous non-auxiliary blocks, with Path breaking Action-column ties; command/footer rows stay outside those blocks. Keyboard Copy and Select All are available while the worker runs; their source handler has no stopped-worker check. This differs from completed-only context menus and file actions.

Native implementation and ownership

The transport contract carries typed reference/checkout records independently of sideband diagnostics. Records retain literal Unicode/whitespace paths, full IDs and producing repository identity; native display strings are never parsed back into actions. Failure/cancellation retains already received results, and Retry starts a fresh attempt so old menu receipts cannot dispatch. The selected-backend native list preserves the source distinction between running keyboard copying and completed file/reference actions. Saved action logs include those visible notification rows alongside diagnostics; default CLI logs retain their transcript.

The private channel uses versioned base64 JSON frames, with a 2 MiB frame limit, 64 MiB aggregate channel limit and 100,000-record limit. Strict decoding excludes sideband text and invalid/conflicting path or hash fields. Malformed metadata retains earlier accepted rows and reports incomplete notifications after the real Git process settles. It does not claim that an already applied Git mutation was rolled back. Such a warning keeps the result available for inspection.

Native file actions use the existing confined working-file open/reveal service. Open With revalidates the captured target after its application chooser, retains access through launch completion and suppresses late effects after owner retirement. Closing, deferred Quit and post-action handoff drain owned reads, launches, chooser replies and sheets before releasing their repository grant.

Validation and remaining limits

The dated checkpoint records seven distinct focused Core methods with pass evidence after affected repairs, the universal helper build and both architecture runtime checks, and six native Clone/Fetch/lifecycle case/engine pairs. Those native checks cover opt-in versus default CLI, immutable Log endpoints, recursive checkout identity, selection/sorting/copy, partial results/Retry and native ownership boundaries. The initial failures and focused fixture/protocol repairs remain recorded.

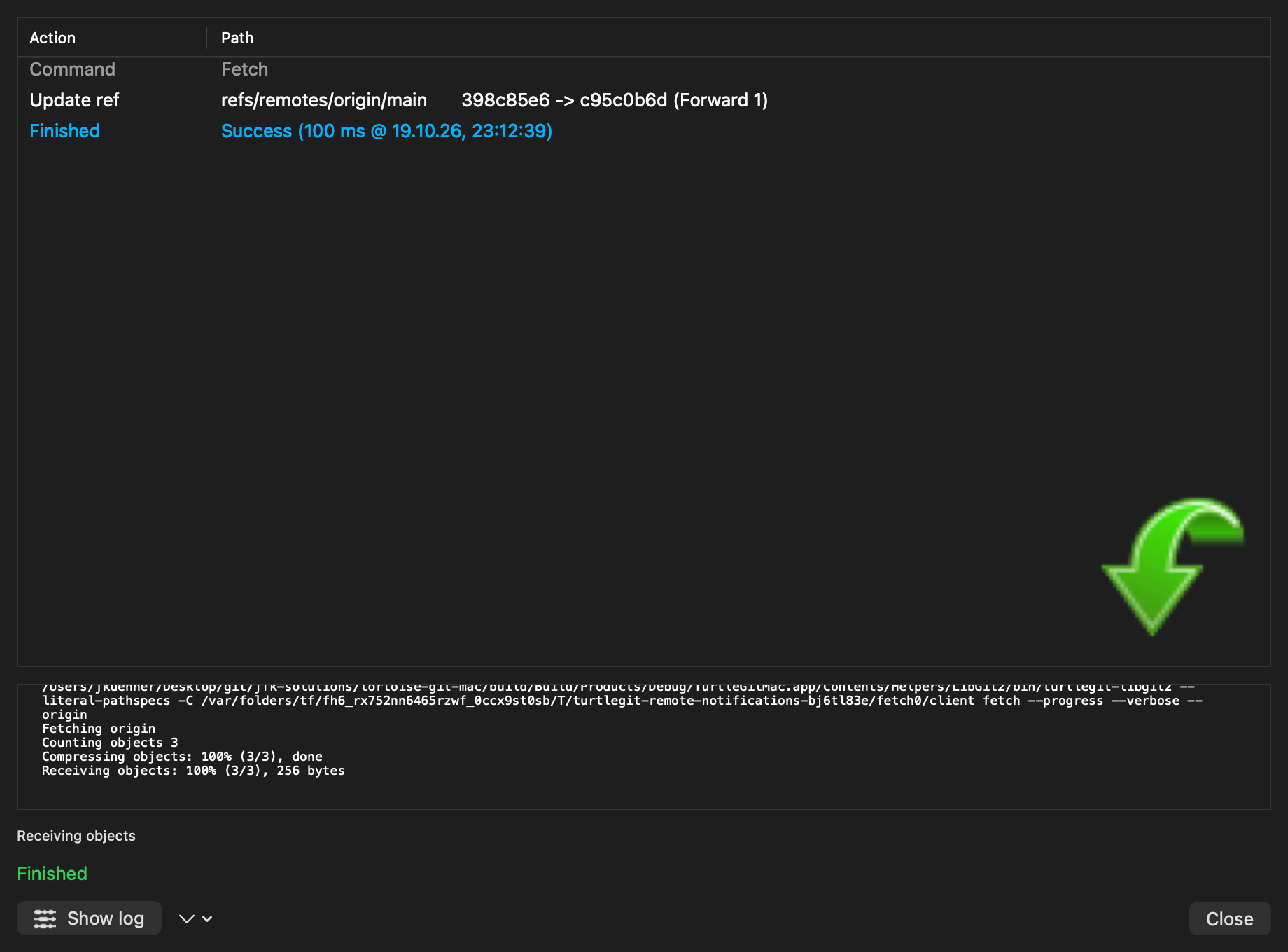

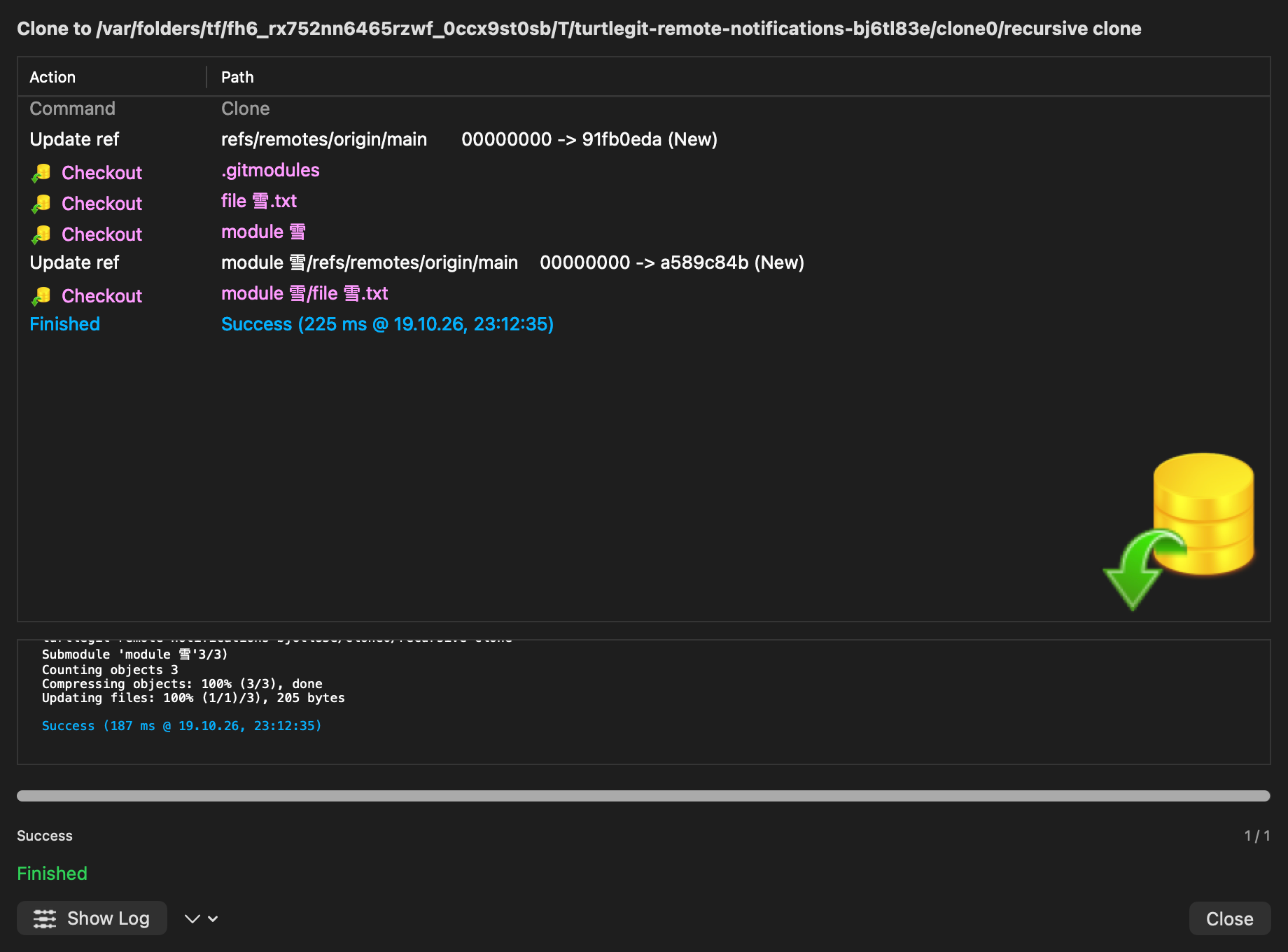

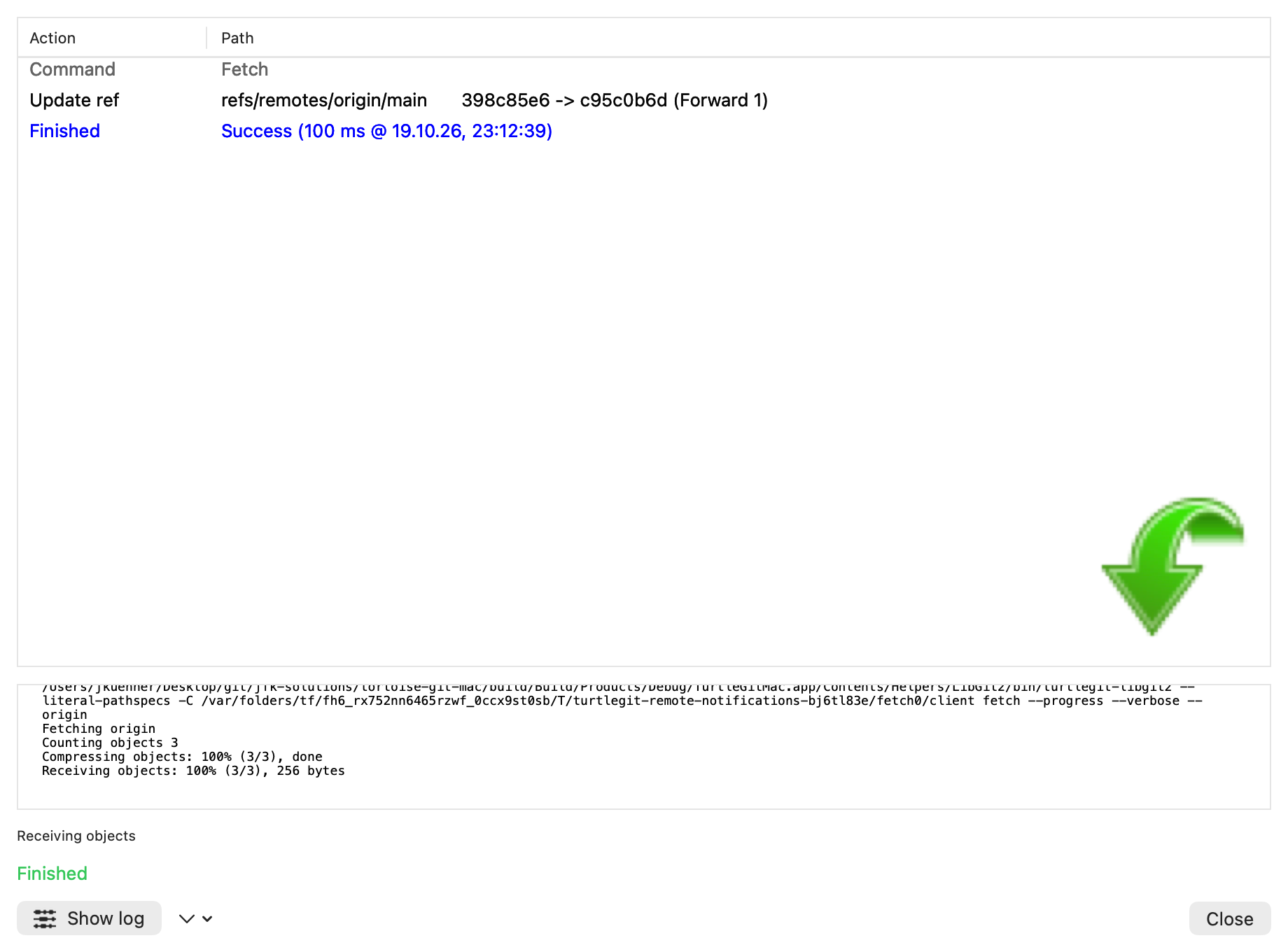

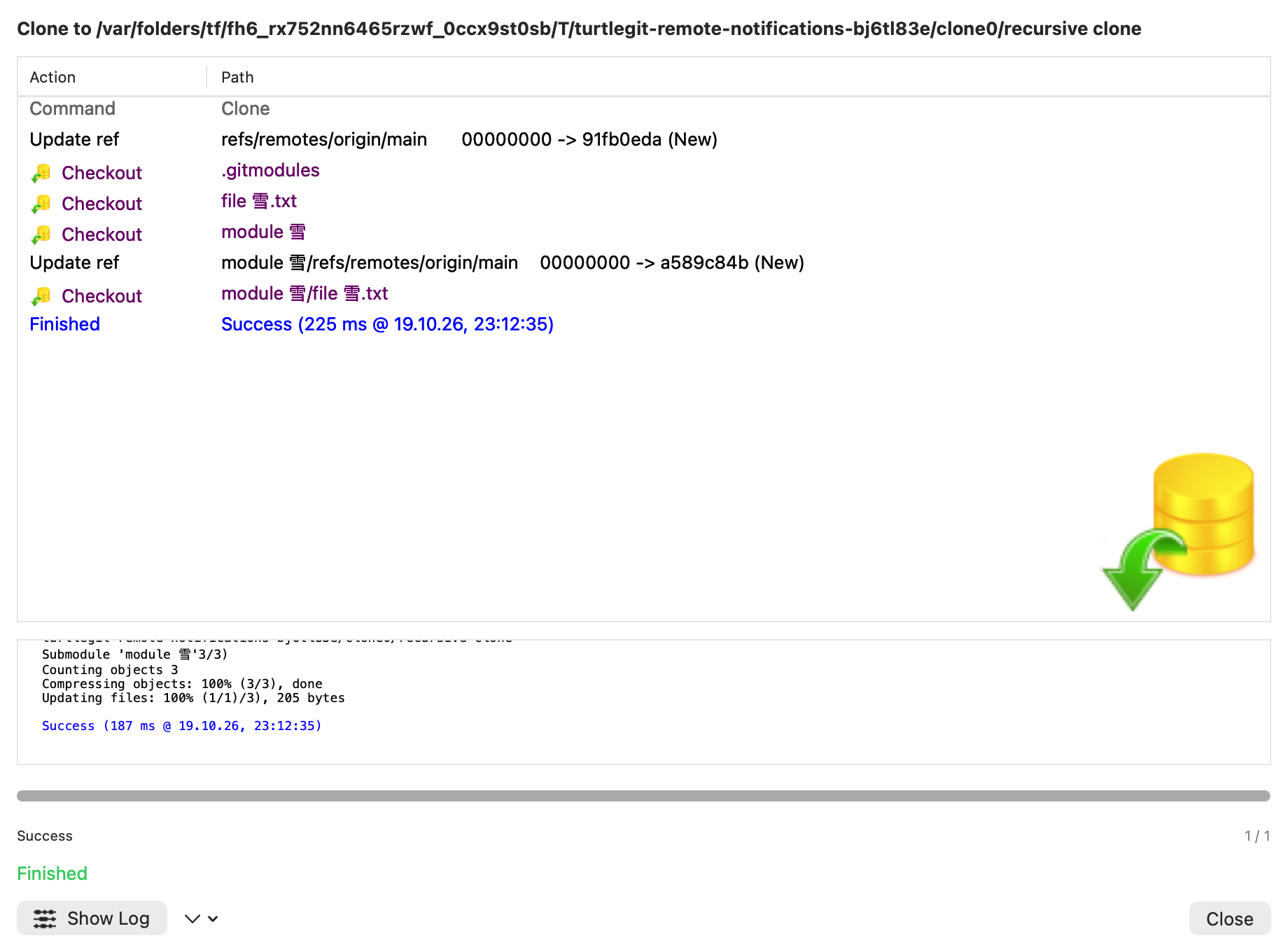

Review of the actual inactive light/dark captures found a collapsed Clone result viewport, despite the behavior assertions passing. The typed Clone/Fetch layouts now reserve usable list height and bound diagnostics; short viewports no longer paint cropped watermark artwork through the header. A viewport assertion and affected native capture/retained-consumer recheck accompany that repair; the dated record distinguishes their outcomes from the initial behavior pass. The four affected Clone/Fetch case/engine pairs and four retained Revert/Add/Resolve pairs passed after this native-only repair. All owned receivers were reaped. Reviewed actual captures: Clone light, Clone dark, Fetch light and Fetch dark.

Automated offscreen checks do not prove physical Finder behavior, signed distribution grants, complete VoiceOver/keyboard acceptance or visual parity of all upstream dialogs. Those remain separate acceptance work.

The Synchronization continuation connects this same typed reference-result contract to inline Sync Fetch and its owned follow-ups. Its separate dated checkpoint states actual coverage; standalone Clone/Fetch checks above do not substitute for that integration.

Selected Fetch configuration lifecycle — October 23, 2026

The selected libgit2 Fetch helper now uses the source load-remote → append raw spec → fetch-same-object lifecycle, including standalone Fetch and Sync. Current configured specs produce this invocation's result rows; the appended entry becomes active on later loads, and repeated requests preserve duplicate entries. Generic helper calls and CLI Fetch retain their existing execution paths. Standalone Fetch-for-Rebase resolves the selected named remote branch after the source-mode fetch, rather than choosing an unrelated configured FETCH_HEAD row. Clone's transfer/checkout lifecycle is unchanged.

The source lifecycle contract records anonymous-remote rejection, source Force/default-tag behavior, the Mac All Remotes adaptation and the pinned library's swallowed config-write error limitation. The new checkpoint states current validation; earlier Clone/Fetch notification passes do not certify these new configuration mutations or complete transport parity.
