PowerPoint comparison source family

Pinned TortoiseGit: 7338078f8ddd924b8cddee35f512f2286072136d. Source adapter: contrib/diff-scripts/diff-ppt.js.

Source contract and Mac capability

The script registers ppt;pptx;pptm, requires two existing inputs and installed PowerPoint, disables macros, checks the unsupported Office 2007 branch, opens the base presentation and merges the new presentation into its review interface. It marks the review saved to suppress an incidental Save As prompt. The Windows PowerPoint review engine provides change highlighting and accept/reject behavior.

The inspected Mac PowerPoint.sdef exposes slide/shape/notes metadata, macro security, PDF Save As and exact presentation close. It exposes no presentation Compare/Merge command. Its merge command operates on table cells. Microsoft also documents the unavailable Mac Compare/Merge feature. LibreOffice's documented tracked-review merge supports text and spreadsheet documents; its existing Writer/Calc adapter cannot provide an Impress revision engine.

Implemented connected family

The built-in tool and .ppt, .pptx, .pptm associations participate in the existing selection, alternate-tool inversion, Advanced association editor and Restore Defaults behavior. Source bytes, revision titles, caller preferences and folder leases are captured through the shared file-comparison route. A caller close cancels pending export; a completed independent review owns its own lifetime.

Core preparation copies exact bytes into a private directory and read-only input files. The native export adapter sends literal Apple-event arguments to fixed script code. It serializes its own exports around PowerPoint's global macro policy, disables macros before opening, captures the exact private presentations, exports all slides and hidden slides, closes those presentations, and restores and checks the prior macro policy. It never selects an active document for cleanup or terminates the user's PowerPoint instance. A completion receipt must confirm cleanup; uncertain completion retains its captured files. Event timeouts and cooperative cancellation preserve that distinction.

Slide metadata has bounded, versioned manifests and contiguous exported indices. The PDF reader requires all manifest pages. It owns readers on worker threads, checks size/page/pixel budgets, and computes deterministic raster fingerprints rather than comparing variable PDF serialization bytes. Core pairs stable slide identities and exact visual/content anchors, detects reorder through an increasing subsequence, and preserves every input slide exactly once. Metadata text and notes retain literal UTF-8 identity. Refused or oversized output fails explicitly.

The native review window contains source action icons, colored slide actions, move markers, changes filtering, change/slide navigation, paired/overlay/pixel difference views, shared fit/zoom and selectable text/notes. It persists display preferences, copies or exports a review report, offers cancellation/retry and contextual offline Help. Closing, refused presentation, sheets, retirement and application Quit retain/cancel/drain the actual owned work before removing files. The connected Open XML revision engine now adds editable-copy output, described below. It does not stage repository changes or resolve a Git conflict.

Validation and explicit gaps

The grouped checkpoint passed 29 relevant Core methods, the final Debug app, bundle layout/configuration and four native cases: automation contracts, review, routing and lifecycle. The installed PowerPoint script dictionary compiled; execution replies and slide PDFs were injected. No live Office export was run. The dated evidence records the initial build/fixture failures, a repaired recursive control observer, and only the affected rechecks. These passes do not establish a complete hosted CI pass.

That original checkpoint established native slide review, before editable package revision decisions were added. It did not establish shape review or merged-deck output. The connected package family below extends that scope; Complete Windows review/comment/animation/transition/macro behavior and embedded-object runtime acceptance remain open. The subsequent binary/result family below adds private legacy conversion and combined-result preview. Finite raster fingerprints can miss sub-resolution visual changes. Mac standard Open lacks a with window false parameter; exact owned windows are hidden after open, so a live Office acceptance run must account for possible initial exposure.

Injected exporter/receiver checks do not establish actual Office rendering, protected/password prompts, every hidden-slide/text-shape combination, external application sandbox grants, TCC or App Store approval. The targeted PowerPoint Apple-event entitlement is distribution preparation requiring separate review. The broader port remains incomplete.

Native captures

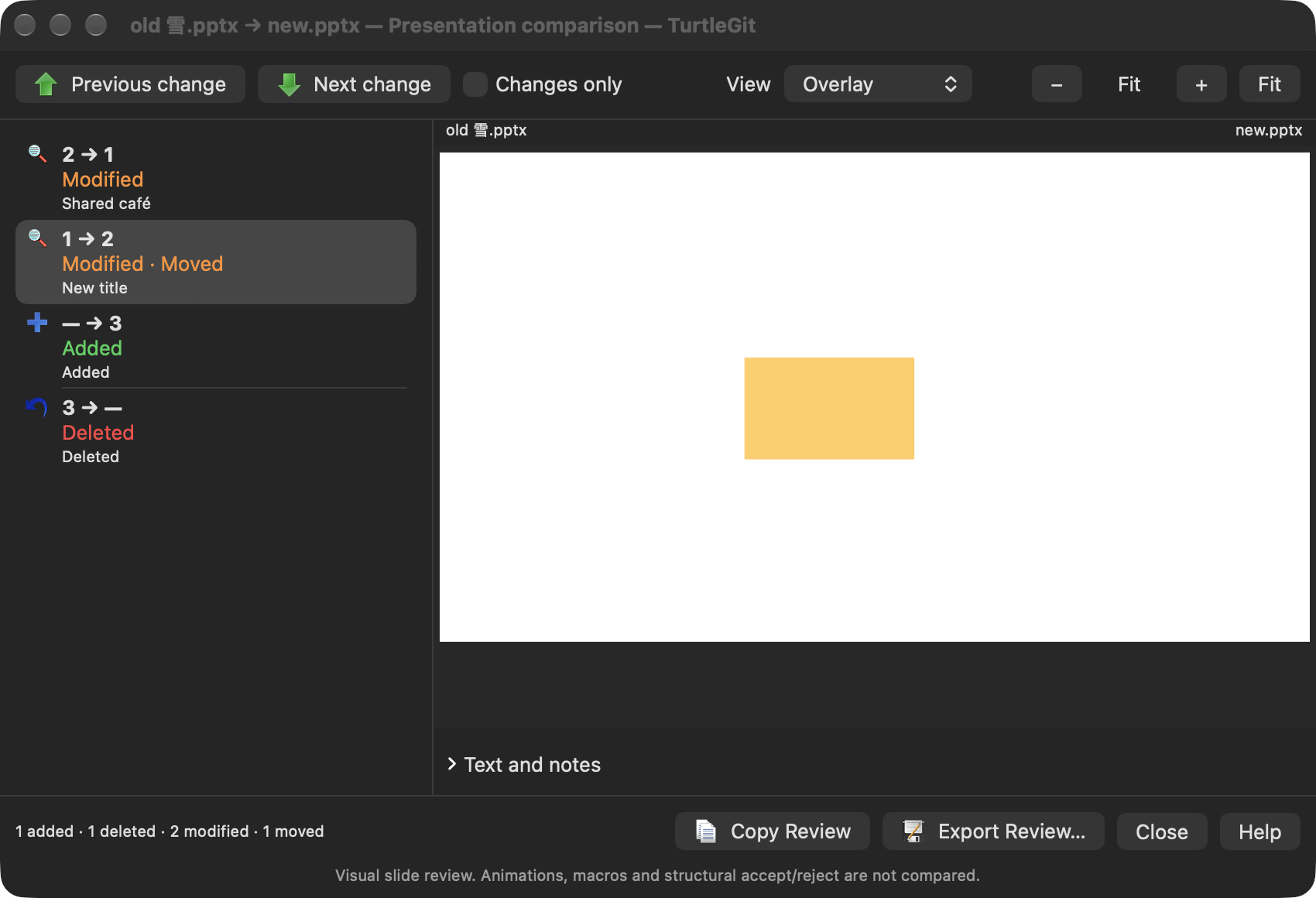

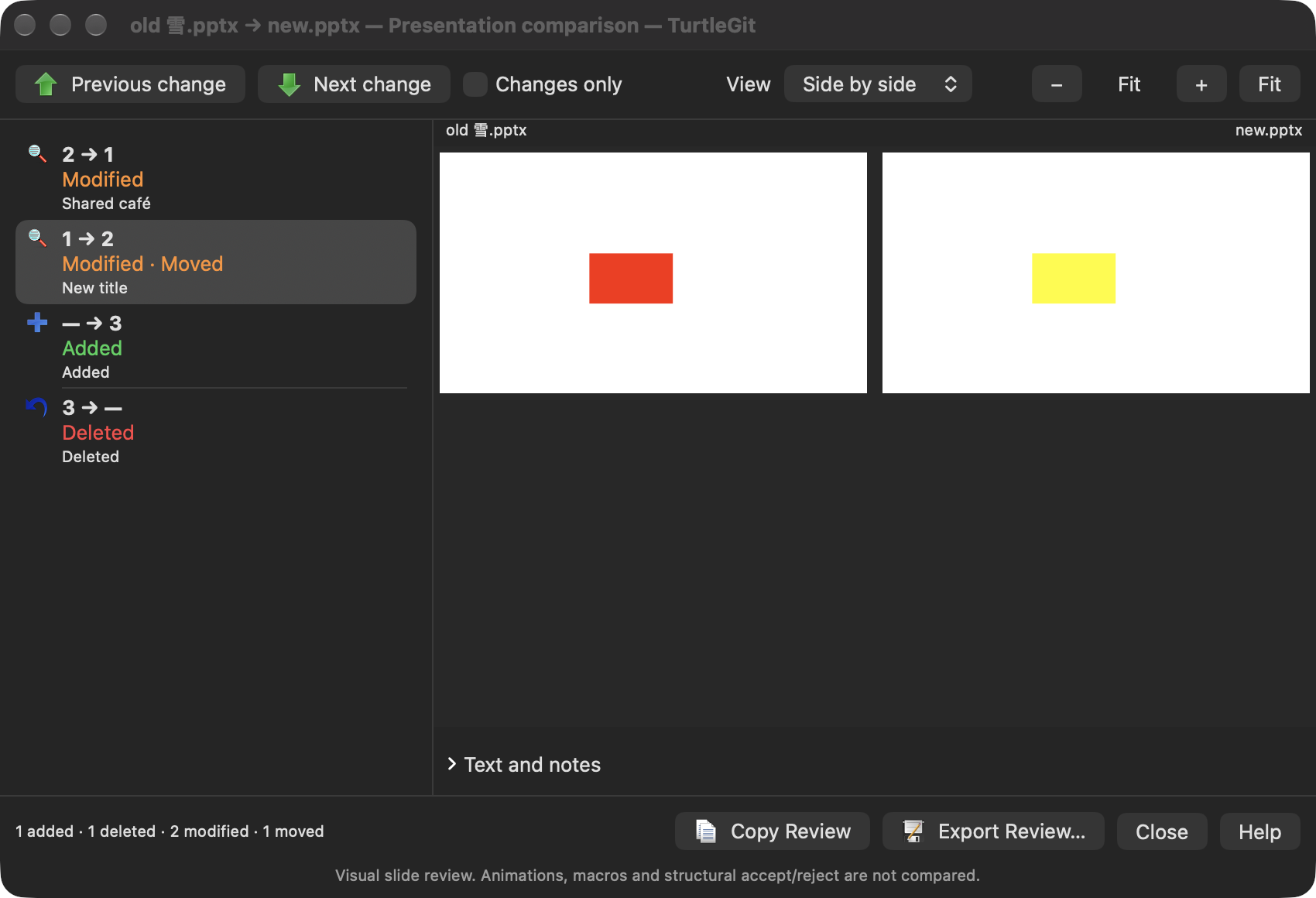

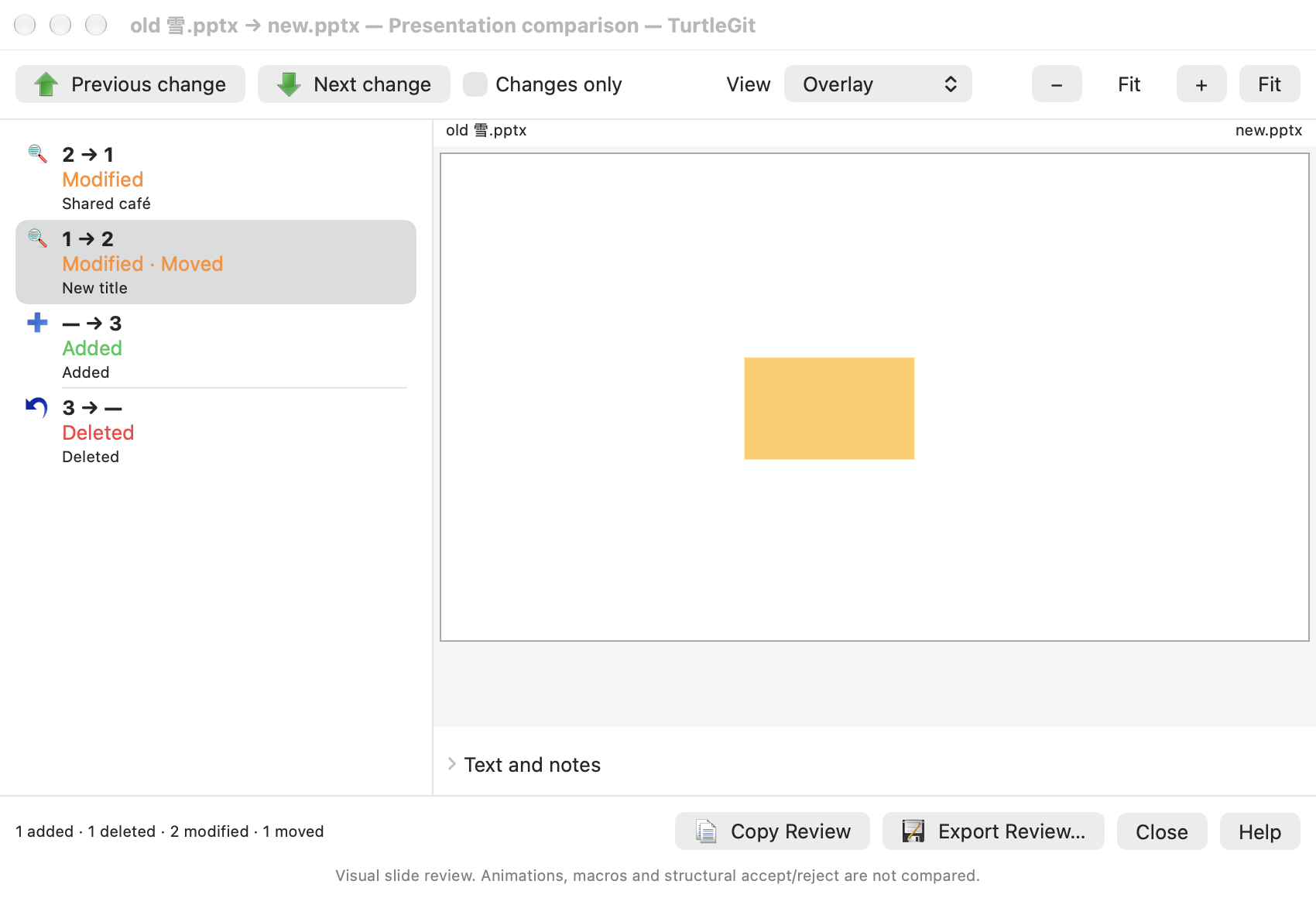

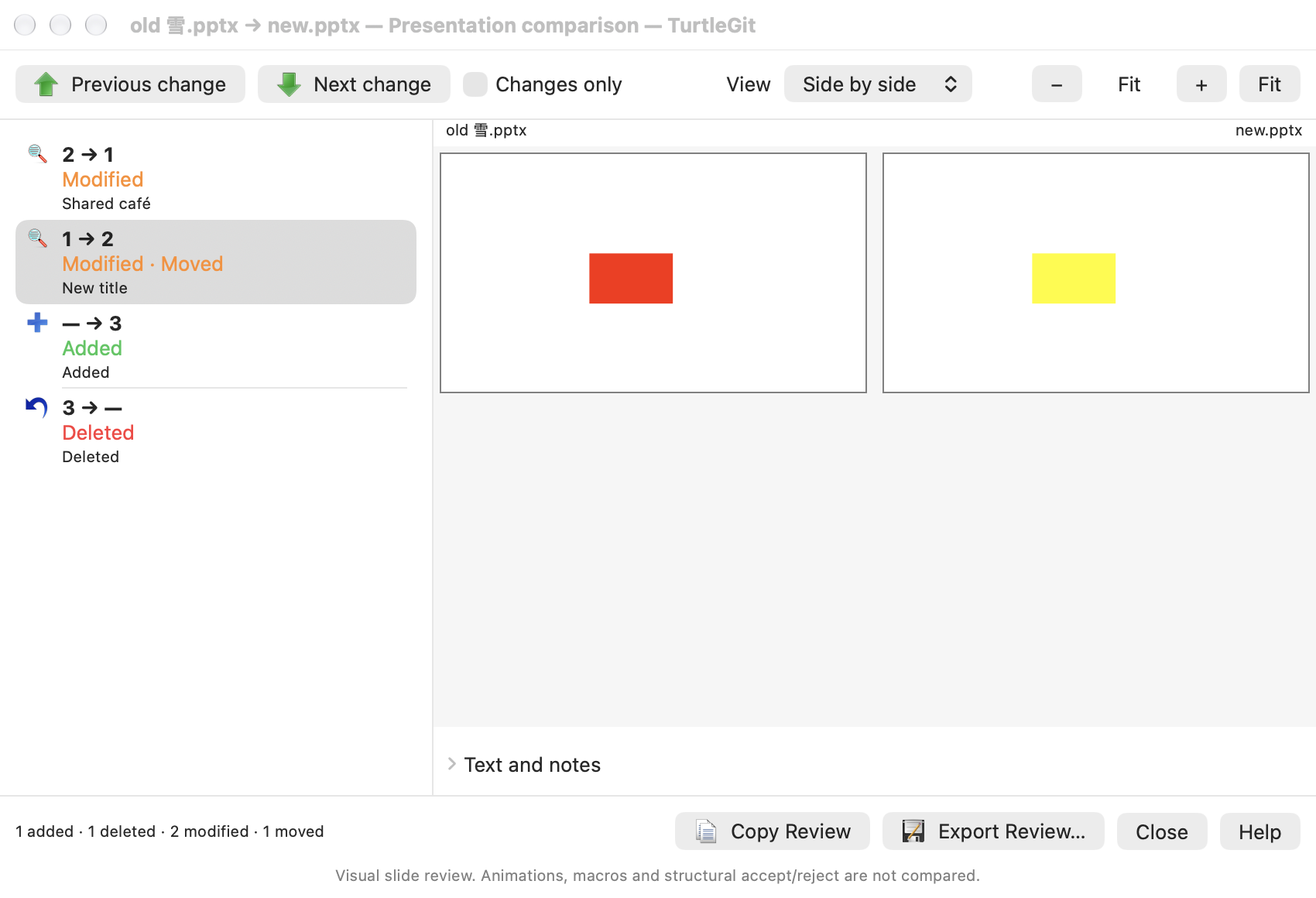

Actual offscreen native windows with private generated slide PDFs, captured on October 20, 2026. These show review controls and rendering, not live PowerPoint conversion or full Windows revision-engine parity. All four were visually reviewed after replacing an incomplete component-cache capture.

Open XML revision decisions and editable output

PresentationPackage reads bounded ZIP32 stored/DEFLATE members with checksum, local/central header, path, duplicate and aggregate-size checks. It writes a deterministic stored ZIP package while preserving opaque member bytes. ZIP64, encrypted archives and unsupported compression are refused explicitly.

PresentationRevisionReview follows PresentationML slide IDs and per-slide nonvisual shape IDs, compares shape XML and linked content, and records explicit New/Base decisions. Added/deleted slides, slide ordering, shape/group changes and stacking order are reviewable. Inseparable slide environment/reference changes are a complete-slide decision. A shared presentation decision chooses the anchor metadata/settings; dependency import allocates identities before traversing cycles and rewrites part relationships/content types for the selected graph. Changed group shells remain atomic. The recursive continuation below adds child decisions inside equivalent shells. Unsafe mixed decisions fail with a reason.

The native window connects selected/all accept/reject, undo/redo, unresolved and unsaved state, a native Save Editable Copy panel, original/alias protection, cancellation/draining and Discard/Cancel closure. Missing PowerPoint falls back to package metadata review for .pptx/.pptm; an uncertain Office export does not transfer its files into a disposable review. Base/New visual previews remain source previews; the separate explicit combined-result rendering workflow is described below. Macro parts are preserved without execution and require macro-enabled output. Invalidated package signatures are removed and disclosed.

This advances the source revision workflow without claiming full Windows engine parity. The recursive continuation below provides independent group-child decisions. Complete comment/animation/presentation-wide reference combinations and physical Office reopening remain explicit gaps. Signed sandbox, TCC/file grants, minimum-OS acceptance and App Store review remain unverified.

The package structure and separate slide/layout/master/theme/notes relationships follow Microsoft's PresentationML structure and slide document model.

Nonvisual slide/shape identities are matched first. The binary/result family below extends matching when an editor regenerates those IDs. Source raster review retains its separate visual anchors.

Editable revision captures

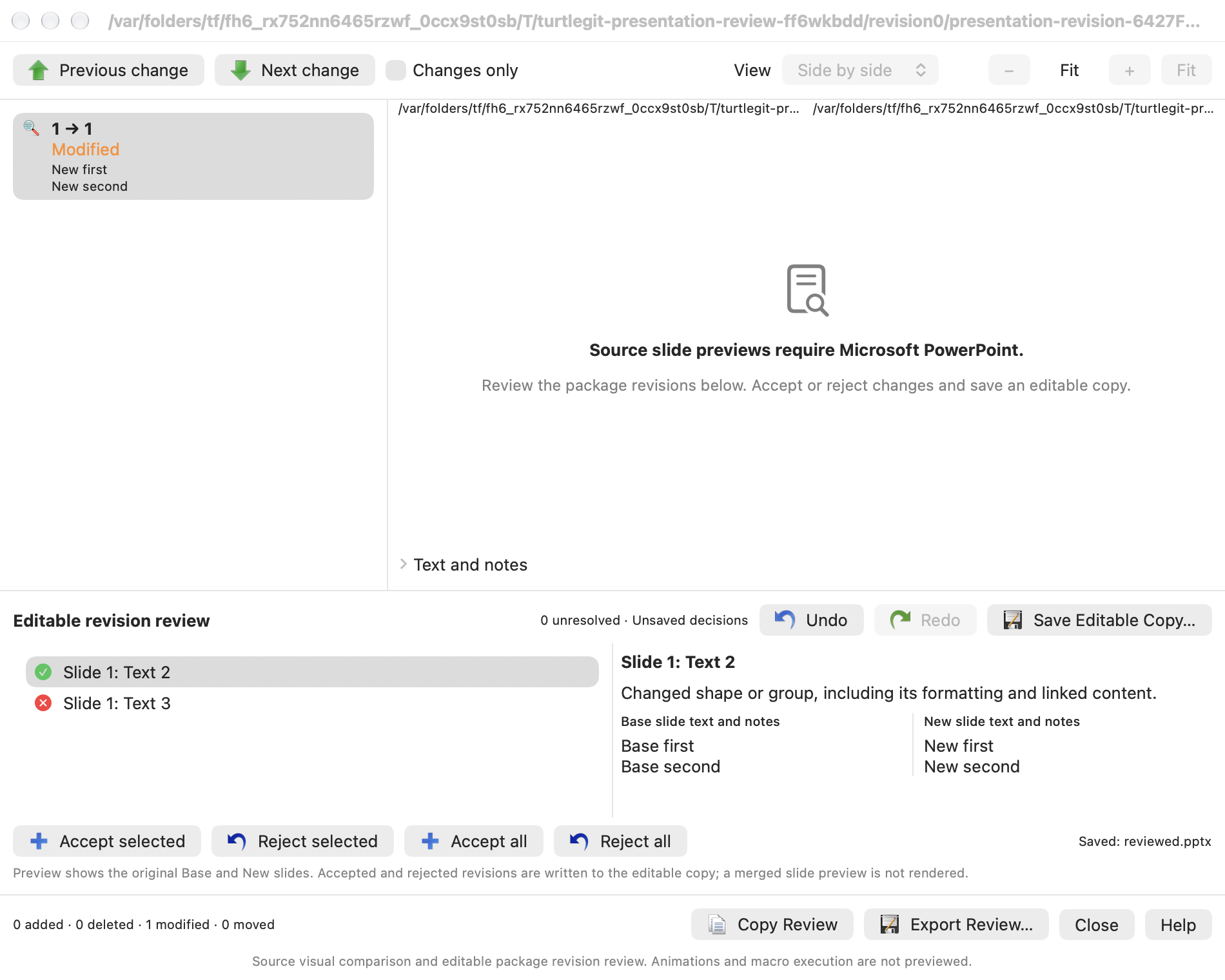

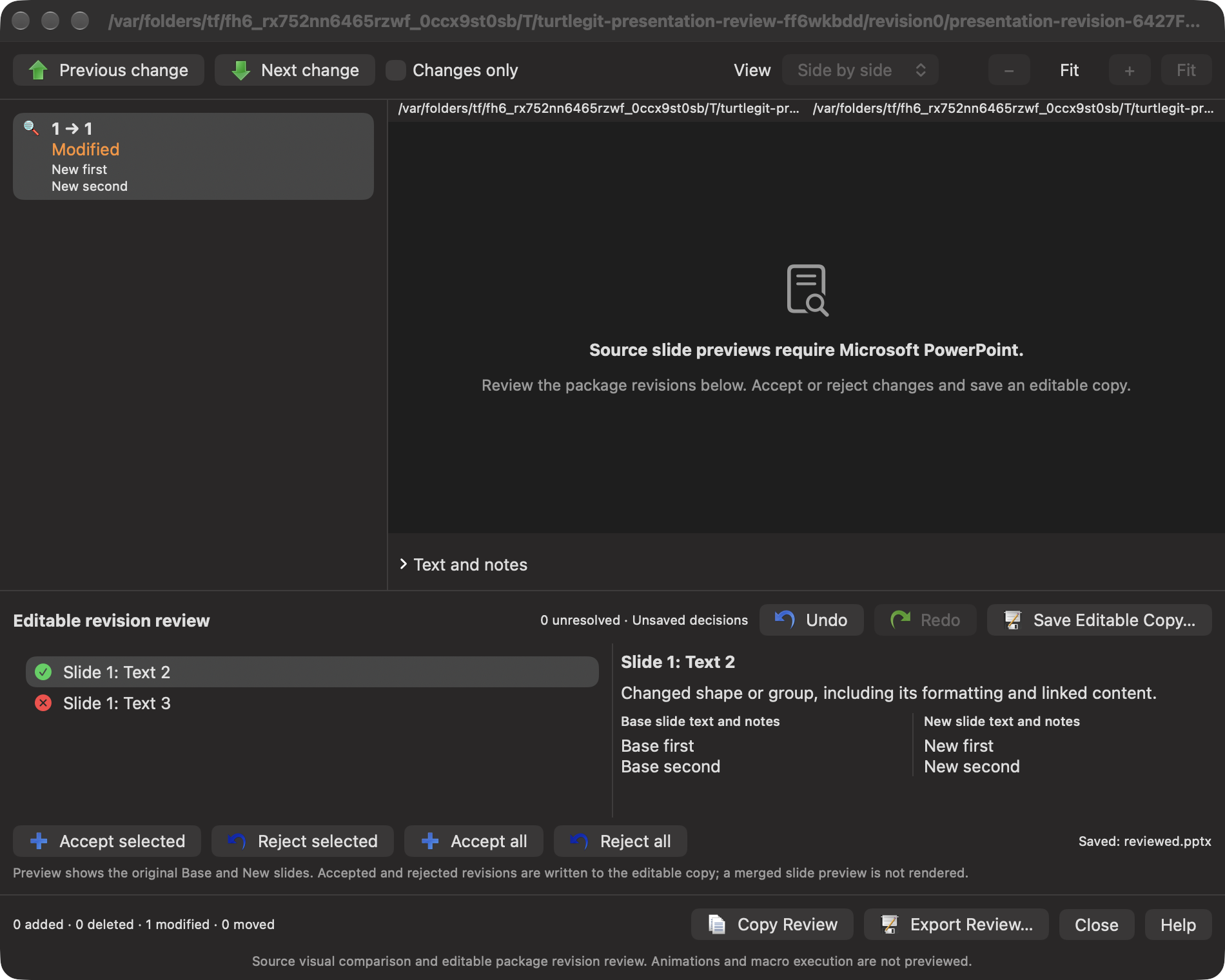

Actual native light/dark windows with private synthetic Open XML packages, accepted/rejected shape decisions and unavailable source previews. The saved outputs were checked independently with ZIP/XML readers. These captures do not show live Office rendering or a synthesized merged-slide preview.

Revision-family evidence records 28 distinct focused Core methods, passing native workflows and independent ZIP/XML output checks after the actual save-identity and retired-Quit repairs. These checks do not establish live Office reopening or complete source parity.

Legacy inputs, combined-result rendering and identity matching

Binary .ppt source export also saves a private macro-enabled Open XML package, using the installed Mac dictionary's named Save As enumerators. Revision review reads those normalized packages. It never replaces the captured binary sources. The same serialized automation worker renders resolved result snapshots or converts them to private legacy .ppt output. The native Save As workflow alone publishes output to the user-selected destination after confirmed Office closure.

The native window has explicit Source slides / Combined result modes, Preview Result, result slide navigation/text and current/stale decision tracking. Editing decisions invalidates the existing preview and cancels obsolete work. A new render requires an explicit action; stale callbacks cannot publish over newer decisions. Previewing does not clear unsaved decisions. Binary inputs default to legacy output; Open XML output remains available. Cancellation, retirement and uncertain Office ownership retain the existing captured-input lifetime rules.

Matching uses stable IDs, mutually unique normalized content/dependency anchors, then bounded similarity with a uniqueness margin. Ambiguous duplicate content remains separate additions/deletions. Output slide/shape IDs and connector/group references are remapped for selected mixed sources. Classic comment authors and comment indexes are merged consistently; equivalent notes-master graphs can be reused. Modern threaded-comment/person combinations remain explicitly unsupported for independent mixed choices. The recursive continuation below replaces the earlier atomic-group restriction; animation/reference changes can still require a whole-slide decision. Exact whole-revision choices preserve the selected source package entries when no security/format rewrite is required.

Actual PowerPoint normalization, rendering and legacy format fidelity still need live acceptance, including hidden slides, macros, embedded content, Automation prompts and signed file access. Injected conversion replies and a CFB header are transport checks; they do not prove a real legacy deck can be reopened. The existing editable/source captures above predate this result-preview family.

Result-preview captures and grouped checkpoint

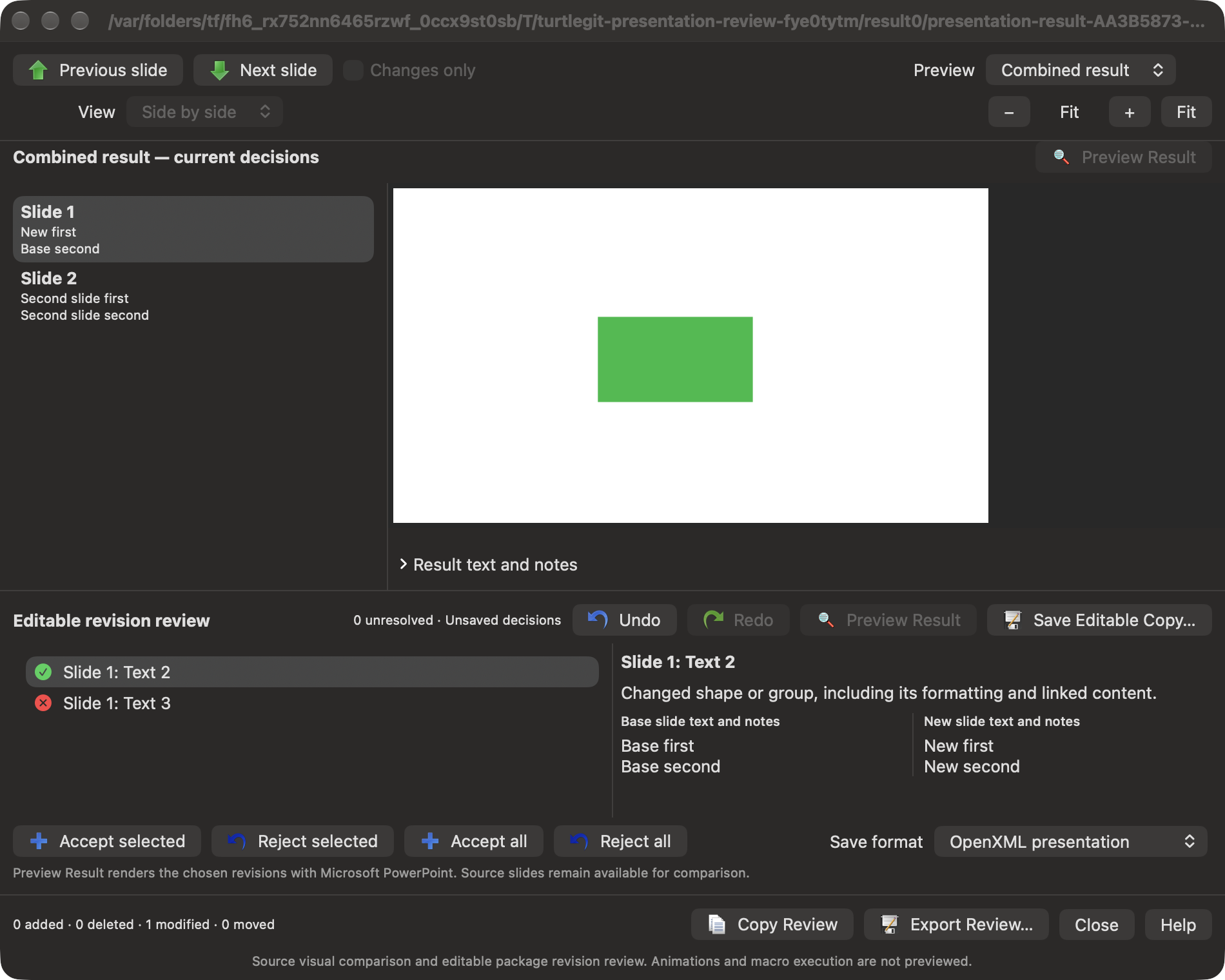

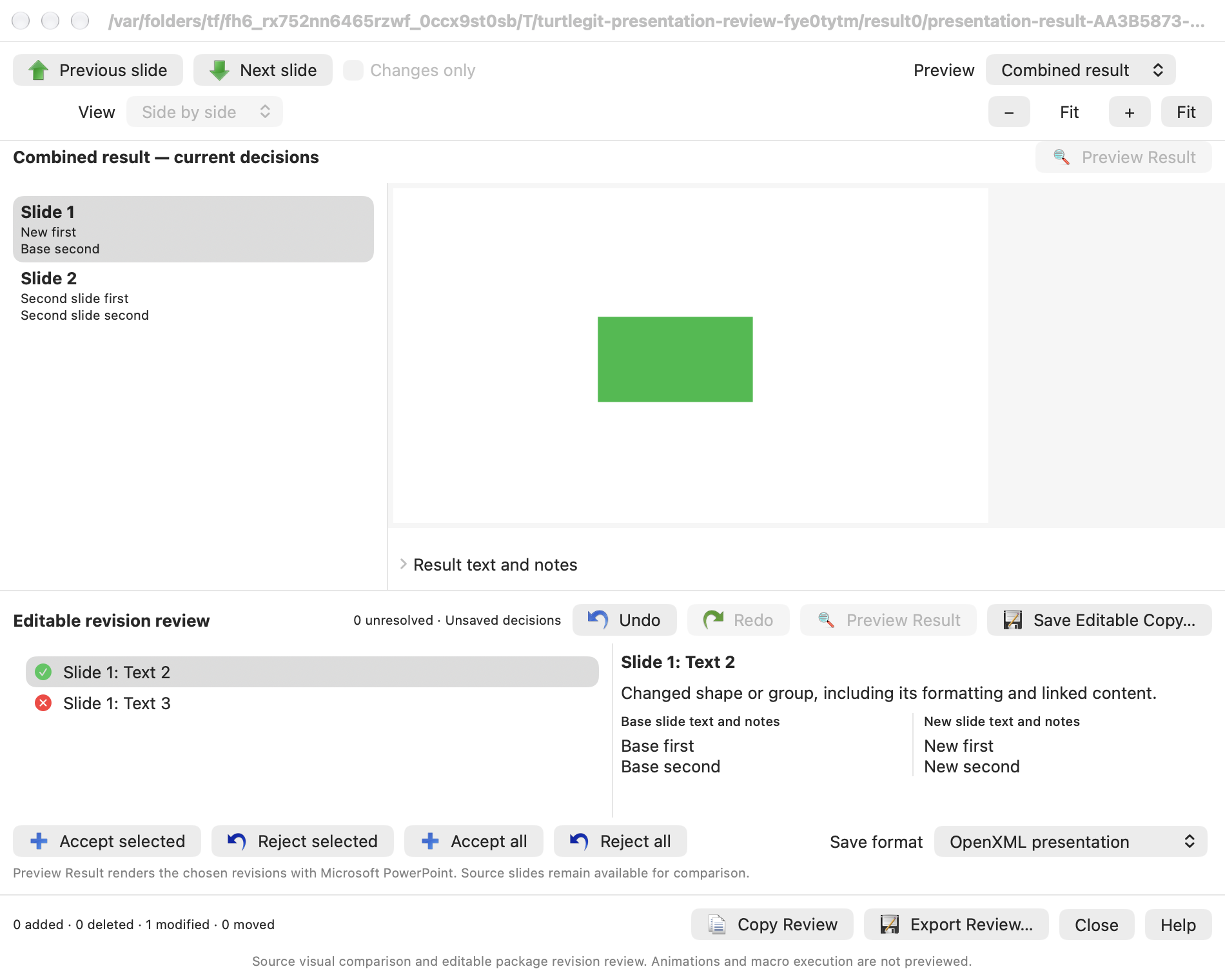

The following are actual offscreen native windows with a private generated PDF from the exported mixed-decision snapshot. The green rectangle is a fixture rendering, not a live PowerPoint conversion. The slide list records New first / Base second, while the revision panel retains separate accepted/rejected shape decisions and unsaved state. Both appearances were inspected; navigation and format controls retain full captions after the layout repair.

Result-family evidence records the 19 focused revision-engine tests, Debug build and grouped native adapter, routing, review, lifecycle, editable revision and result cases. Real private repositories under Apple Git and bundled Git retain their HEAD, raw index and tracked source bytes. Independent ZIP/XML checks validate the mixed Open XML output in addition to the existing complete-New PPTX/PPTM cases. Apple-event execution and result PDFs were injected; the installed PowerPoint terminology compiled. These checks do not establish live Office fidelity, a complete CI pass or App Store acceptance.

Recursive group decisions — October 20, 2026

The connected continuation replaces flat, atomic group review with recursive sibling-scoped matching and decisions. Children are matched only inside the same matched parent; a move across group boundaries remains a deletion/addition. A matched group's shell is compared without its direct shape children. Equivalent shells permit independent child changes and local stacking-order decisions; changed transforms, nonvisual properties, effects or other shell content require one explicit whole-group choice. Opaque group children also remain atomic; recognized markup-compatibility/extension guards can require the whole slide. Added/deleted groups remain atomic. Existing animation and unknown-reference whole-slide guards remain in force.

Export must first resolve the complete selected tree, then allocate slide-wide unique shape IDs before remapping any connector. Both source identity maps must resolve matched counterparts to the selected output object. Only selected subtrees and group shells contribute imported dependencies. Missing or ambiguous connector targets are refused. Complete-revision choices retain the existing opaque package preservation path.

The native list shows ancestor breadcrumbs, bounded indentation, original action artwork and complete tooltip/accessibility paths. Copy/Export Review carries the same ancestor path to distinguish repeated object names. Titles and group names retain the source text; they are not interpreted as decision identities or translated application captions. Existing session Undo/Redo, Save As, cancellation and captured-input ownership remain connected to the recursive decisions.

This is a native replacement for the Windows script's call to PowerPoint's opaque Merge engine. The pinned script does not expose that engine's individual group matching rules, so passing package/native checks cannot establish identical Microsoft revision granularity or live Office rendering fidelity.

The grouped checkpoint passed 28 distinct focused Core methods (nine new and nineteen existing) across the initial group and focused endpoint/opaque-content checks. The Debug app built, and both native review/save and lifecycle cases passed. Python independently verified the saved ZIP CRCs, nested group structure, chosen child text/order, unique IDs and every internal relationship target. The dated record retains the actual failures, semantic assertion repair, opaque-content repair, affected builds and capture-only checks. Functional cases were not repeated after passing.

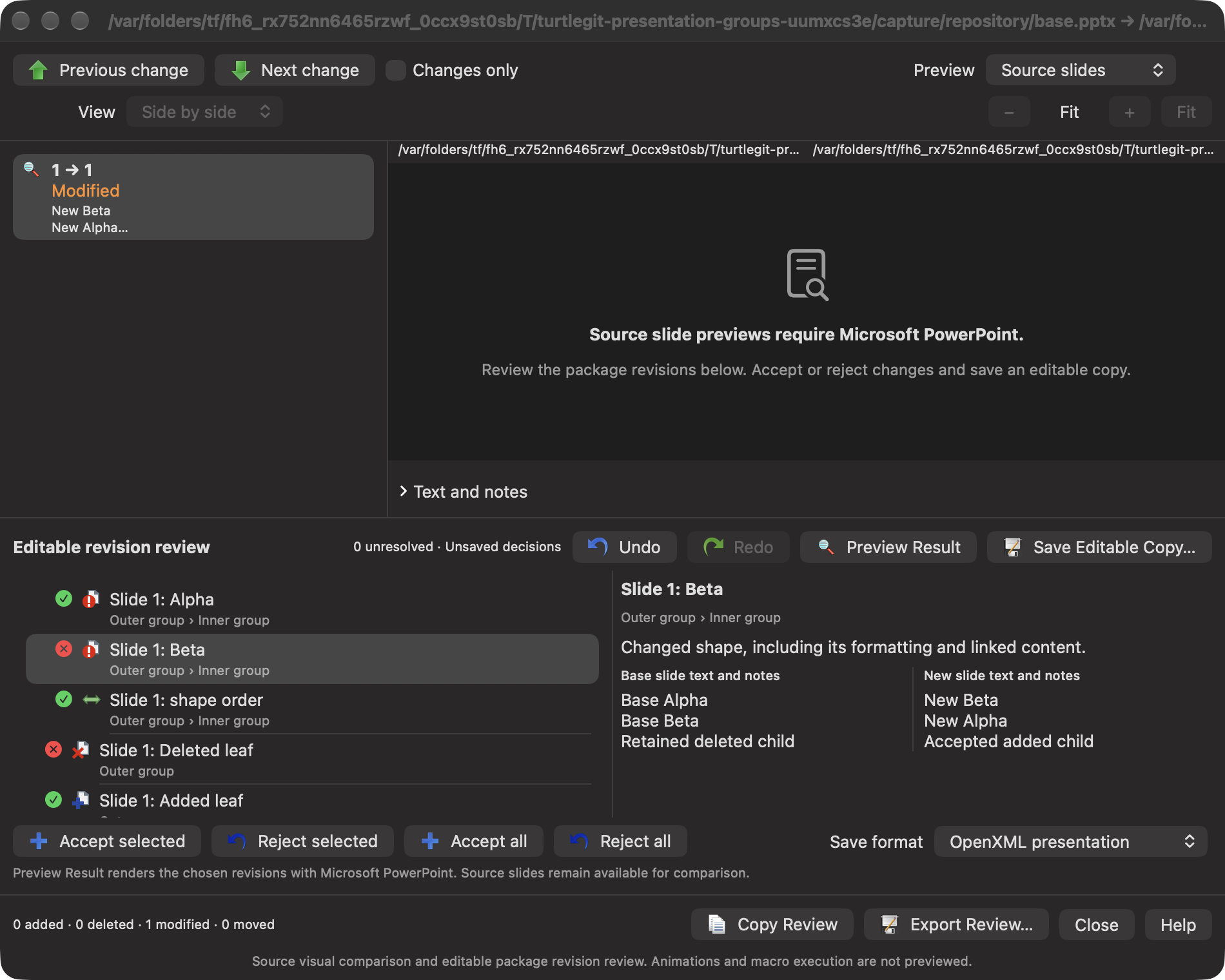

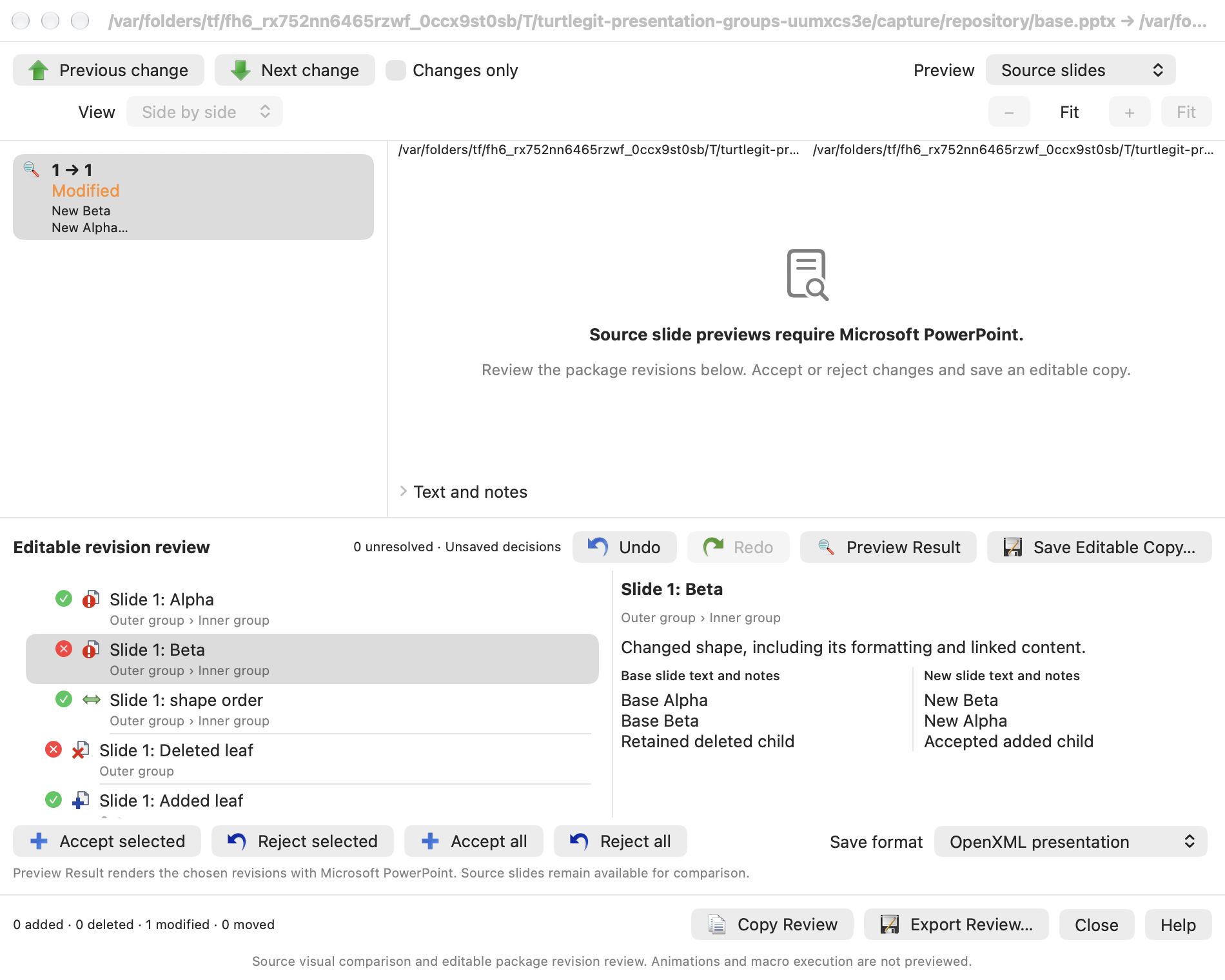

Minimum-size captures caught a clipped footer. The revision pane now shrinks while retaining a scrollable change list, and the complete caption/buttons were inspected in both appearances. The following are exact offscreen owned-window compositor captures, with no image postprocessing. No Office app was launched; these show the metadata fallback and mixed nested decisions, not live PowerPoint rendering or physical input acceptance.

All six launched native receivers, including failed fixture and capture attempts, were reaped and independently absent afterward. Modern threaded-comment/person combinations, incompatible presentation-wide masters, namespace conflicts, unsafe references, live Office fidelity and physical/signed/App Store acceptance remain open. Changed/opaque groups stay atomic and cross-group moves remain separate deletion/addition choices. This completes the scoped continuation, not the full application port.
