Moved blocks

Source pin: 7338078f8ddd924b8cddee35f512f2286072136d, MovedBlocks.cpp, DiffData::TieMovedBlocks, MainFrm::OnViewMovedBlocks, BaseView::OnLButtonDblClk and OnToolTipNotify.

Two-file comparison now offers View → Moved blocks, enabled by default and saved as TurtleGitMerge.ViewMovedBlocks. The detector runs off the UI thread against the authoritative Subversion modified intervals. It ports the source's unique-line equivalence groups, repeated-line extension, left/right passes and interval splitting. The source detector's special whitespace normalization and final NoEnding-record refusal are retained. It compares original payloads after removing EOL, separately from engine regex/case/comment keys.

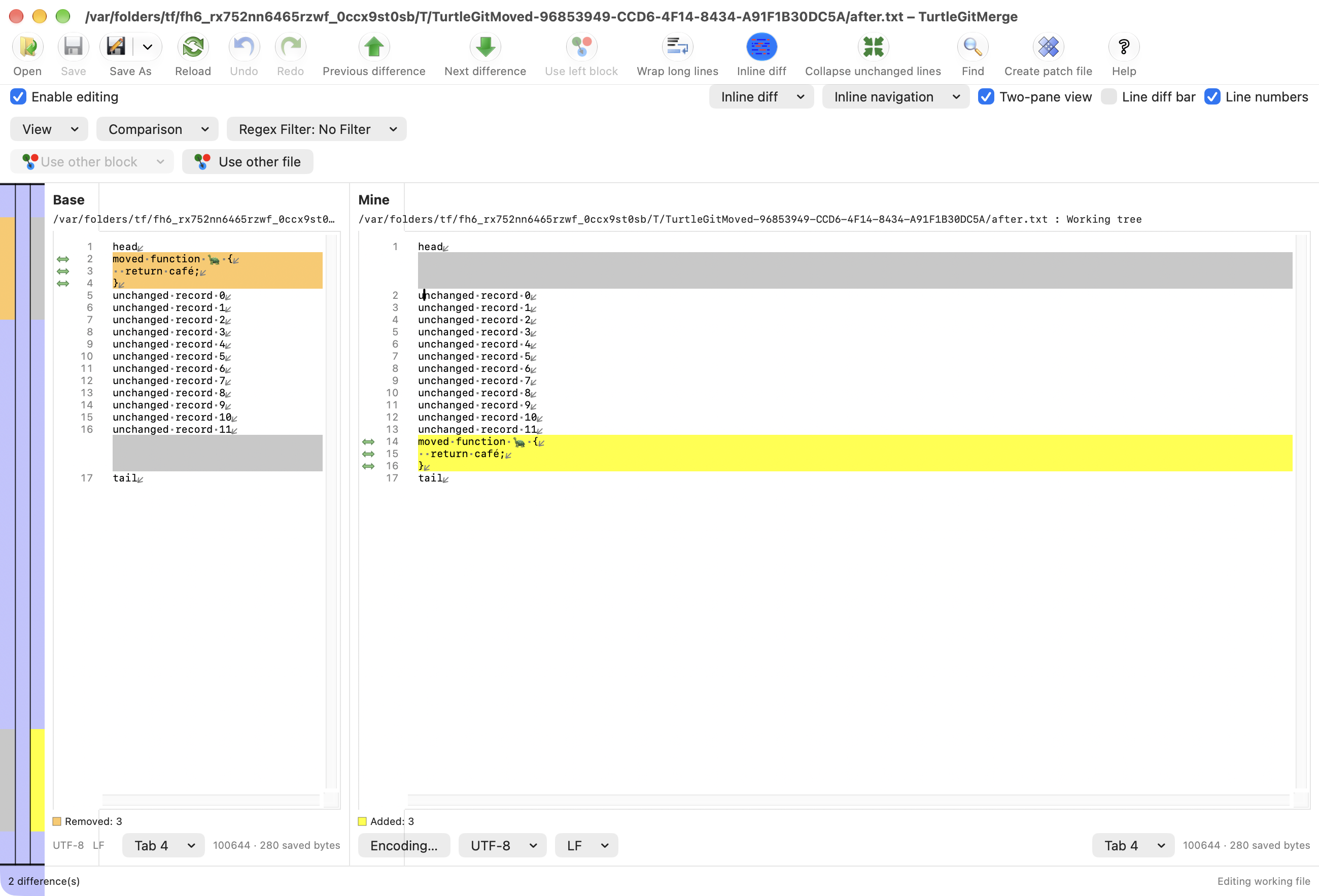

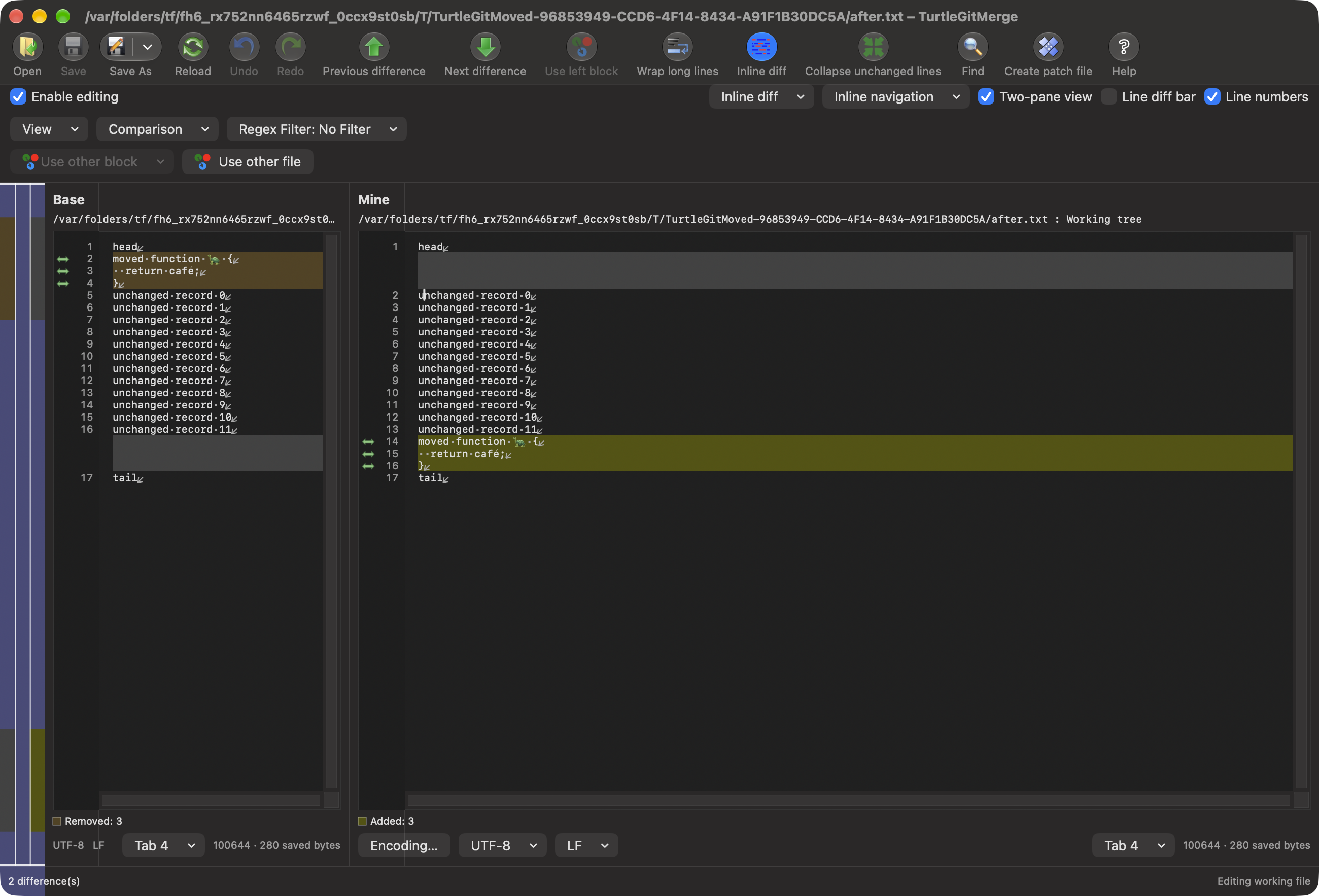

Both panes show the original colored moved.ico in their native margins, with Moved to/from line tooltips. Double-clicking a moved margin selects its whole counterpart block, focuses that pane and centers linked scrolling. Combined view maps removed and added occurrences independently and follows the move within the same pane. Go to moved block in the native text context menu provides a keyboard-accessible alternative. Line-number hiding retains a needed move margin. Three-way views show the source-disabled toggle; they do not run this detector.

The saved toggle uses the existing owned comparison Save/Don't Save/Cancel and reload workflow. Cancel preserves drafts/preferences; accepted reload clears old Undo and rebuilds the links. Edits, projection changes, filtering and owner closure invalidate old action targets. In-place editing retains move markers on surviving view records, shifts peers with inserted rows and drops deleted records; new records start unmarked. Destination selection stops at a newly inserted unmarked row. Undo/Redo restores the captured move metadata with its matching presentation. Navigation uses original line coordinates on load and retained view records after an in-place edit. Following a move never changes source text, saved files, encoding, annotations or Git state.

The detector annotates the current authoritative alignment. Existing native row pairing is retained; the full upstream DiffData line-pairing/sticking algorithm has its own remaining parity work. Source tooltip display-row versus original line numbering can differ when earlier changes insert padding. Physical margin, trackpad/keyboard/VoiceOver, complete source layout, large-file/minimum-OS and signed/App Store acceptance remain open. Retained edit tooltips keep the captured source labels; full edit/tooltip numbering parity remains open.

The batch record records the initial source-bookkeeping failure and repair, 1,265 matched source cases, the 45 focused Core cases (41 initially passed; four repaired cases passed), three successful Debug builds with their diagnostic noise, and eight distinct successful native editor cases. The new move workflow and its captures passed after a fixture aligned-row correction. Optional capture of the retained wrapped window failed; its affected case and the six remaining cases then passed without captures. All owned receivers were reaped and independently absent. This does not certify complete editor, physical or signed behavior.

The comparison EOF continuation now restores the source DoTwoWayDiff final-record/trailing-gap repair. Move detection still uses original physical engine intervals, and source-to-view links retain original line numbers.

The common-record continuation now joins adjacent modified plan intervals before display pairing when moves are enabled, following StickAndSkip. Earlier descriptions of that entire step as absent are superseded; complete DiffData and physical/signed acceptance remain open.
