Three-way Merge line inspection

Pinned source: 7338078f8ddd924b8cddee35f512f2286072136d, src/TortoiseMerge/MainFrm.cpp lines 1031–1033, 2977–3009, LineDiffBar.cpp::OnPaint, and BaseView.cpp::ShowDiffLines/GetLineColors. This family adds the source's explicitly available inspection pane to the native three-way editor. It does not certify complete Merge parity.

The source hides the line diff pane on each ordinary three-way load without clearing its saved View checkmark. Its View command remains enabled and toggles the saved preference and actual pane. Changing Locator visibility restores the saved line-diff visibility. Native Merge now keeps these two states separate: load/reload hides the pane, explicit View or context-menu commands can reveal it, and Locator visibility changes restore the saved choice. Two-file comparisons retain their existing initial visibility policy.

The strip shows captured Theirs above Mine, rather than Base or the editable merged result. Pointer and caret inspection resolve a logical aligned row; result inspection uses its source navigation map when manual edits have removed the aligned projection. Unsupported mappings clear the current preview instead of inventing a source row. Folding and wrapping retain storage coordinates. Neither strip becomes an editor or takes first responder.

Two-file and three-way strips now share the same TextKit renderer, configured with their own labels, fonts, tab widths, ending icons and per-side horizontal scroll positions. The strip forces whitespace and inline coloring locally, including comparison-filtered rows. Main-pane whitespace/inline choices remain unchanged. The general maximum inline length and word-mode rules still apply. Missing-character indicators are drawing overlays, never inserted source text.

Main View, in-window View and per-pane context View menus share guarded model actions. Context commands use the existing application icon preference. The native line-number visibility adaptation is now available in all three panes; it follows the existing saved setting initially and can be changed per window. It does not rewrite the saved settings-page default. Busy operations, child sheets, stale source layouts, replaced/closed owners and retirement cannot revive an old inspection action. Replacing the source layout retires its preview.

Some tempting apparent gaps are intentional source behavior: three-way source panes are read-only, only the merged target is writable, and BaseView::GetInlineDiffPositions refuses inline navigation when the bottom pane is visible. This batch preserves those gates rather than enabling an unrelated two-file command in three-way mode.

The native fixture is merge-conflict-inspection-native-2026-10-20.swift. It is intended for the grouped history/editor checkpoint with private inputs, preferences and pasteboard. It exercises the real three-way and two-file hosts, menu/visibility transitions, source/result pairing, local forced rendering, fold/wrap behavior, busy/retired guards and unchanged input bytes. Validation results and deliberate light/dark WindowServer captures are recorded by that checkpoint after the connected implementation batch finishes.

Remaining acceptance includes physical pointer tracking, VoiceOver interaction, all line-ending/long-line/encoding combinations, Windows docking and font metrics, minimum-window layouts, signed Finder/App Store execution and full Merge parity.

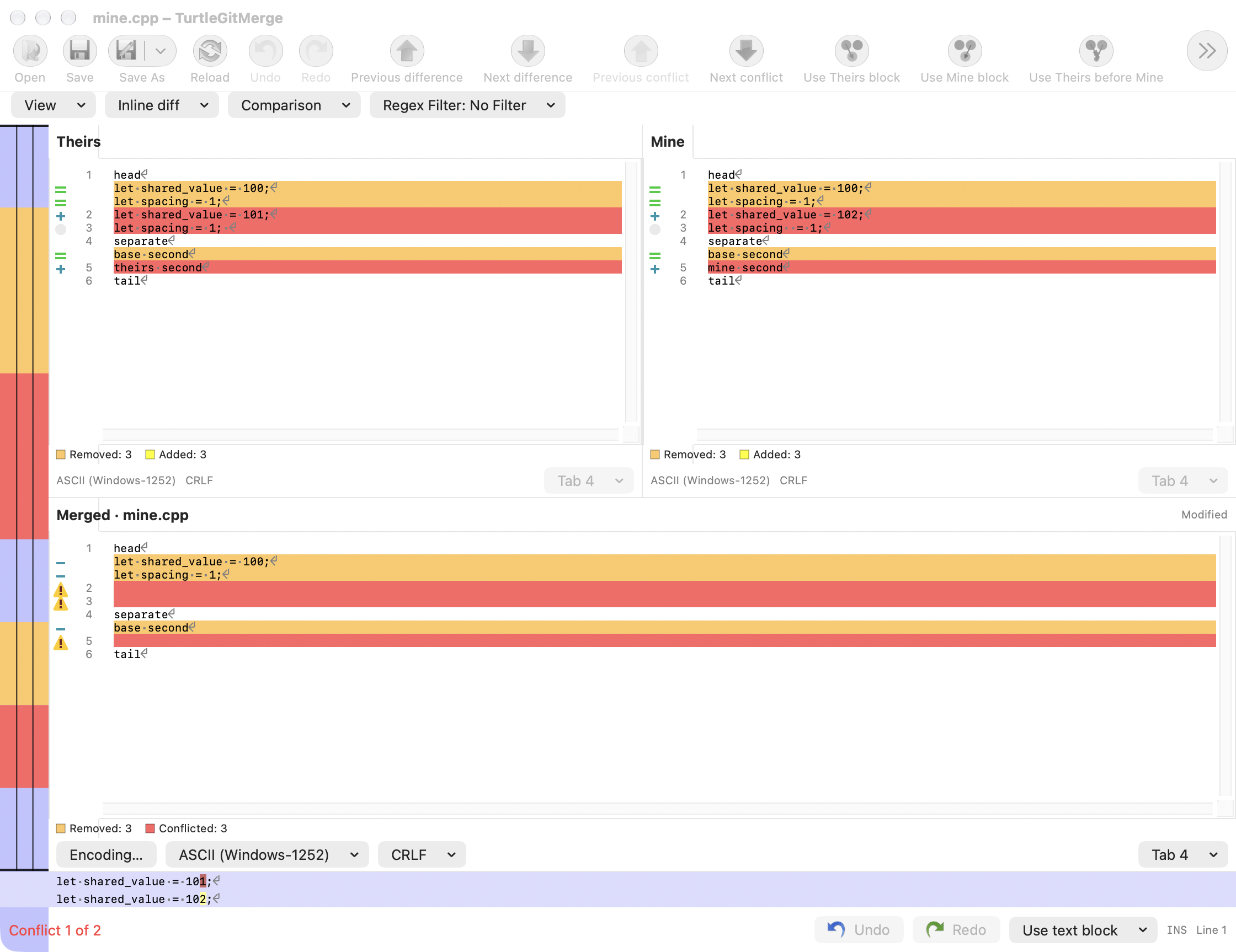

These actual WindowServer captures show the private fixture's Theirs/Mine inspection bar. The test application is inactive, so macOS dims its toolbar. They establish the strip's layout and light/dark colors, not physical input or complete editor parity.

Native checkpoint

The Debug app and scoped native family checks passed with Apple and bundled Git across the grouped checkpoint and focused repairs. The batch evidence records exact checks, initial failures, repairs, captures and process cleanup. Core code was unchanged and its suites were not repeated. This local result does not prove a complete hosted CI pass, full source-window parity or signed distribution.
