Optional libgit2 Clone, Fetch and Sync parity

Baseline: TortoiseGit 7338078f8ddd924b8cddee35f512f2286072136d. The libgit2 pin is its ext/libgit2 gitlink f7164261c9bc0a7e0ebf767c584e5192810a8b24 (1.9.4). This family is a partial native replacement, not certification of the whole port.

Source gates and connected callers

src/Git/Git.h assigns Clone command index 1 and Fetch index 2; Git.cpp::UsingLibGit2 tests (1 << cmd) & mask with the global switch. The source default mask 0x66780 excludes both. CloneCommand.cpp selects ProgressCommands/CloneProgressCommand.cpp; AppUtils.cpp::DoFetch and SyncDlg.cpp select FetchProgressCommand.cpp. The selected callbacks report transfer/checkout progress and call CAppUtils::Git2GetUserPassword and Git2CertificateCheck on the actual operation. The latter maps IDD_CERTCHECK.

Native GitLibGit2Configuration captures the switch, mask and requested runtime. Clone.swift, Fetch.swift and Synchronization.swift select a literal packaged helper while retaining the captured original Git for validation, references, configuration and follow-up commands. The native Clone/Fetch/Sync models capture private or production preferences before asynchronous choices. Missing requested runtimes fail explicitly. The source Advanced catalog is retained; the mask remains an expert stored preference. The default CLI workflows and SVN are unchanged.

The selected helper maps the same operation arguments onto libgit2: Clone branch/origin, bare/no-checkout, shallow depth and recursive submodules; Fetch named/arbitrary/all remotes, explicit refspecs, tags, prune, force and depth. FETCH_HEAD, tracking references and tag destinations are actual repository results. Sync Fetch/Rebase preparation and tag fetch use this route; ordinary Pull, Push, Prune and Remote Update use their existing commands. The user guide is Optional libgit2 transport.

Actual connection and native decisions

The private static libgit2 engine uses SecureTransport and OpenSSH exec support. certificate_check receives the actual connection's certificate. Valid system trust proceeds without a prompt. An invalid X.509 peer reaches the separately gated TurtleGit Git transport prompt v1: protocol, with bounded DER and the source-shaped native certificate form. The private authority patch adds the actual HTTP endpoint's port to that callback without changing built-in TLS hostname validation; it prevents a redirected port from inheriting another connection's exception. Temporary exceptions are exact to host, port and DER. The shared authentication continuation retains them in Core process memory across subsequent helper calls. No probe/reconnect or global verification-off setting is used.

The native helper offers combined credentials and certificate review with Common Name, Issuer, SHA-1/SHA-256, Open certificate, Accept certificate and default Cancel. Its read-only inspector retains Copy and DER/PEM export. Permanent trust, credential saving and SVN client-certificate modes are refused by this Git-specific protocol. The existing SVN protocol retains its behavior.

A private 0600 lock connects actual prompt/export retirement to parent cancellation. The parent writes a cancel marker first, waits for the native prompt's real release, then interrupts/reaps its process group. A newly starting prompt refuses the marker. The ordinary Git cancellation policy is unchanged. Native pending acceptance is converted to rejection when cancelled, including while an accepted export drains.

Runtime, evidence and remaining scope

Configuration/LibGit2Runtime.json pins source/checksum/patch and macOS 13 universal architectures. The runtime carries its reconstruction sources, licenses and provenance; the helper is relocated to standard app code placement and receives inherited sandbox signing with the existing runtime pipeline. Debug reuse and CI keys include the helper, bridge, patch, compiler/SDK and build/validation recipes. The optional backend does not depend on a user-installed Python or Homebrew library.

Batch QA records actual attempts and outcomes. The Core group uses the real helper and private repositories plus a loopback smart HTTPS Git server and mock credentials. Native checks exercise actual local Clone/Fetch model routing and the real prompt/inspector implementation offscreen. These scopes must not be represented as a physical public HTTPS or SSH session.

Other source libgit2 command-mask consumers for local operations, all HTTP authentication providers/server configurations, physical keyboard and VoiceOver behavior, complete inspector/compositor parity, installed signed grants, signed SSH/HTTPS and App Store distribution remain separate acceptance or porting work. Current-source full hosted CI remains unproven until its complete run passes.

The initial Clone/Fetch checkpoint did not execute external Git smudge/LFS commands or ordinary Git hooks. The historical and Clone checkout continuations below add configured one-shot smudge commands; persistent filter-process and ordinary hooks remain outside the adapter. git_repository_init_ext copies repository templates; this does not prove hook execution. Conventional custom GIT_ASKPASS and Git credential helpers remain unsupported by this engine. The CLI engine retains these workflows. Custom CA anchors augment system roots; built-in valid peers proceed directly. An invalid peer is evaluated against custom anchors on its actual leaf and hostname, without a second network probe. A missing intermediate may require explicit native review. Redirect handling clears cross-authority cached credentials and sensitive headers, and proxy changes clear cached proxy credentials.

Native content captures

The grouped offscreen receiver captures the production prompt controller with private sample credentials and a fixture certificate. These are native content captures, not physical window/compositor or public-server acceptance.

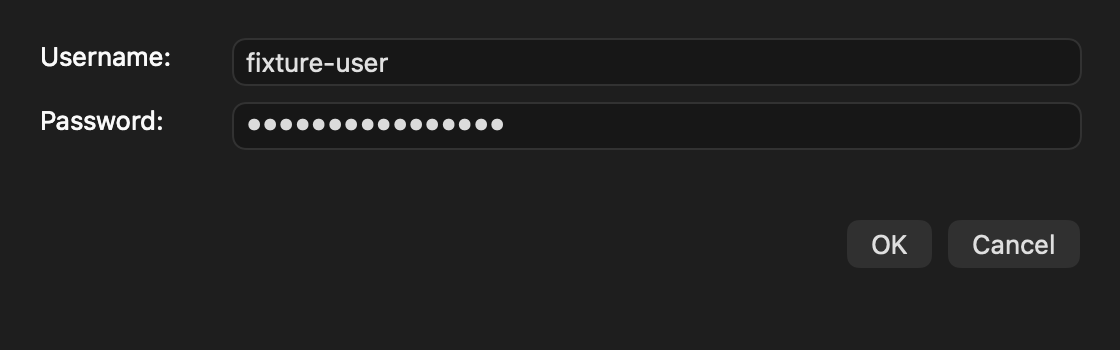

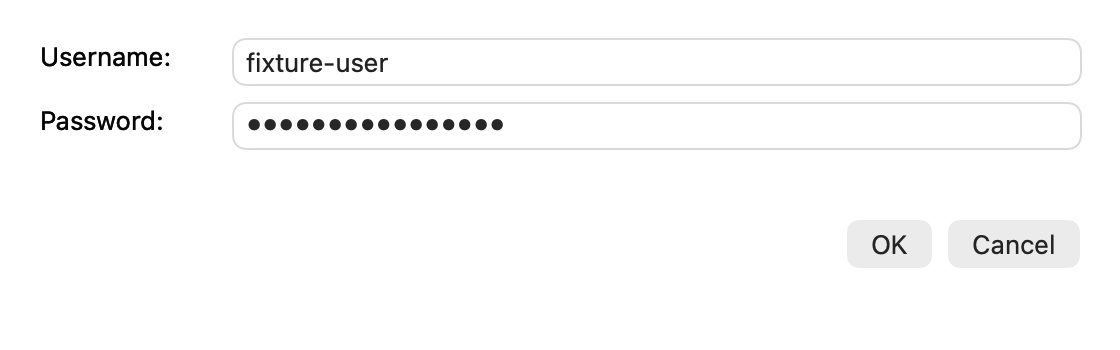

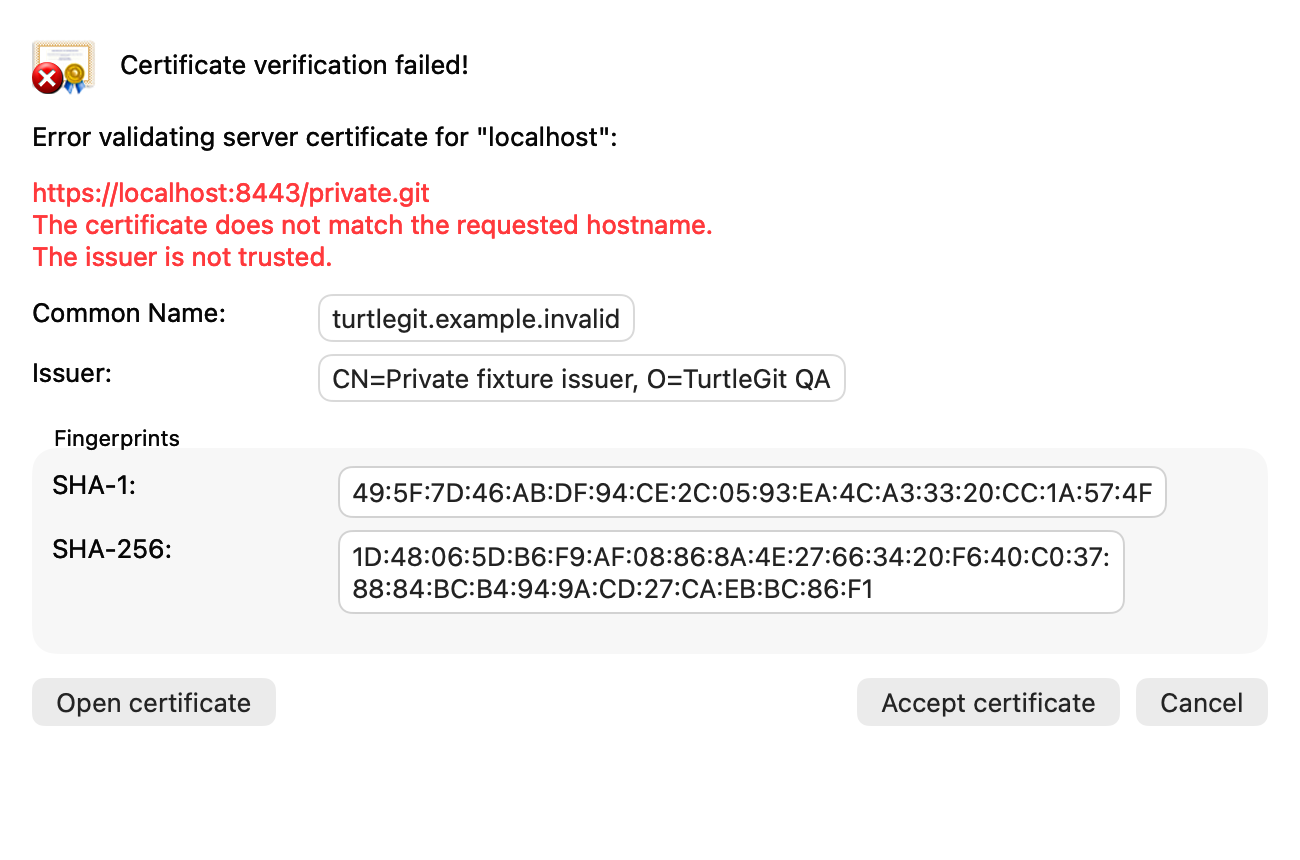

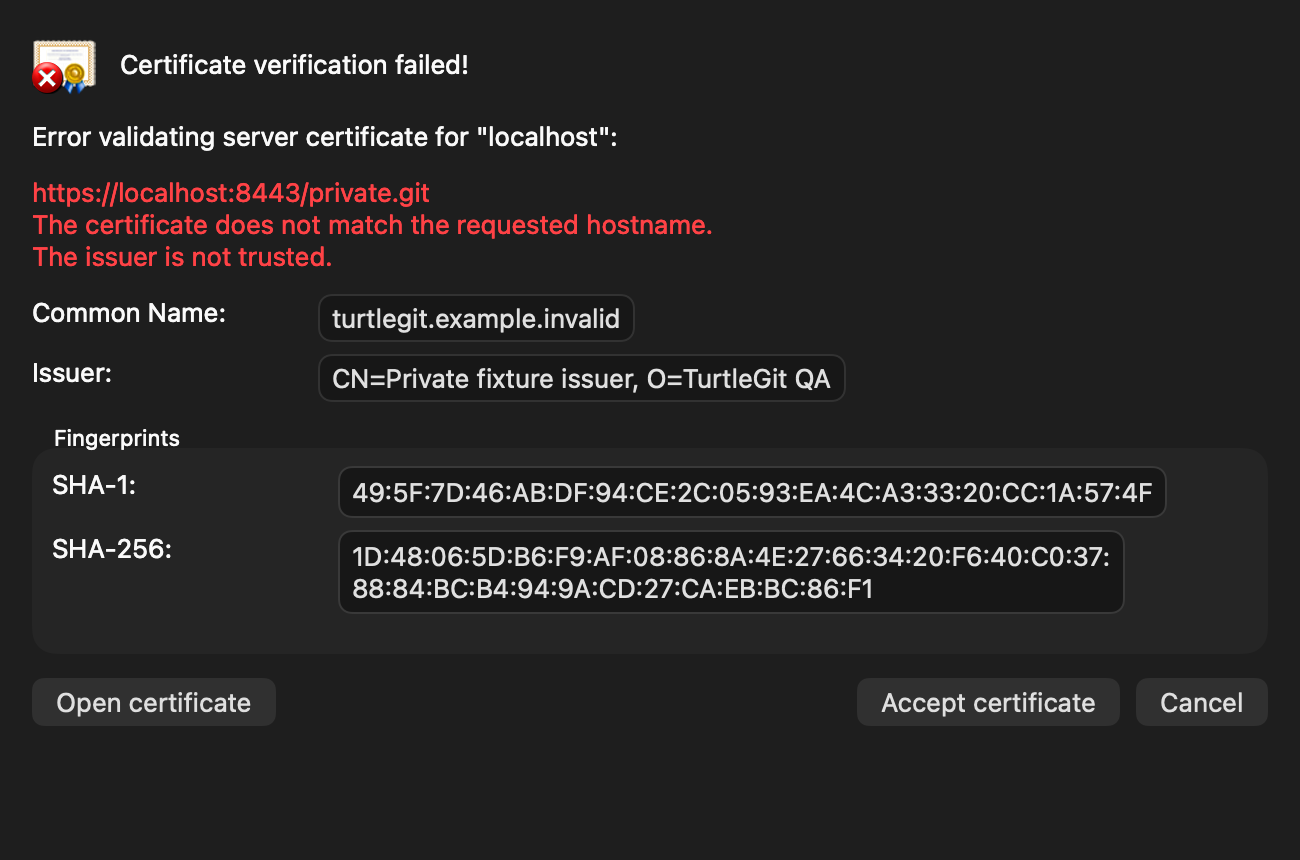

Git certificate review, light Git certificate review, dark Git credentials, light Git credentials, dark

Connected remote-reference continuation

Remote-reference engine parity connects GetRemoteRefs and DeleteRemoteRefs consumers to source Fetch/Push mask bits. This adds remote picker/tag catalogs, Browser remote branch deletion and Sync tag compare/delete/refill. General Push remains the source CLI path; it is not a missing general Push implementation implied by the DeleteRemoteRefs mask name. The continuation has its own batch evidence and remaining acceptance limits.

The historical materialization continuation adds the source default GetOneFile bit and a separate custom smudge adapter for historical file output. This does not change the recorded Clone/Fetch filter, LFS process-driver or hook limitations.

Clone checkout-filter continuation — October 19, 2026

The Clone checkout family connects configured custom smudge filters to selected libgit2 Clone and its recursive checkout option. It distinguishes initial destination cleanup from later recursive partial work, retains bare/no-checkout suppression and owns actual filter cancellation/progress. Configured LFS one-shot smudge, source boundaries and grouped evidence are tracked in that family; it does not claim persistent filter-process or complete providers.

Shared authentication continuation — October 19, 2026

The shared authentication family adds the source credential form layout, username-dependent focus and validation, readable certificate issuer/error fields and temporary certificate acceptance across helper launches. It retains the existing prompt/export cancellation handshake and has separate grouped evidence and acceptance limits.

Source-selected Add/index family — October 19, 2026

The Add/index continuation connects source-default Add10 selection, configured clean filters, private-index publication and mode post-actions to the native Add/status family. Commit's explicit Add now owns the shared progress sheet; Rebase and workspace entry retain accepted backend and preference snapshots. Per-path receipts, actual worker cancellation and final publication remain owned. General Commit staging and its separate backend bit retain their independent contracts. Grouped evidence and remaining acceptance are recorded with that family.

Local reference continuation — October 20, 2026

The local reference family connects source ForeachRef18, BranchContains16 and DeleteTagBranch8 with the master-switch GetRefList completion path. Its source eligibility, checked local deletion, metadata/cache identity, native ownership and grouped evidence are tracked together. Server deletion remains the separate Push11 consumer.

Replay/merge/resolve inspection continuation — October 20, 2026

The inspection family connects source MergeBase7, CheckCleanWT12, CheckConflicts13 and Mine/Theirs GetConflictInfo17 through their accepted native workflows. Structural all-base queries, generic conflict lists, Current resolution and the disabled source Log-revert clean guard retain their separate boundaries. Its implementation checkpoint and remaining acceptance are recorded together.

Single-commit details continuation — October 20, 2026

The single-commit detail family connects source GetCommit14 to editable message/identity consumers, replay Add and Squash, containing references, comparison endpoints and parent captions. Declared encoding and raw signature/message bytes retain source boundaries; bulk history and immutable hash readers remain independent. Its dated checkpoint records the grouped validation and remaining acceptance.

History and child-submodule continuation — October 20, 2026

The history inspection family extends source7/12 through FF jumps, eligible deletion warnings, child forward/rewind classification and Combine preparation/execution. Settings are captured at accepted actions, child actors retain that configuration, and Combine verifies HEAD/reference after its final clean read. The dated checkpoint records actual grouped results and limitations; this continuation does not certify the entire source call graph.
